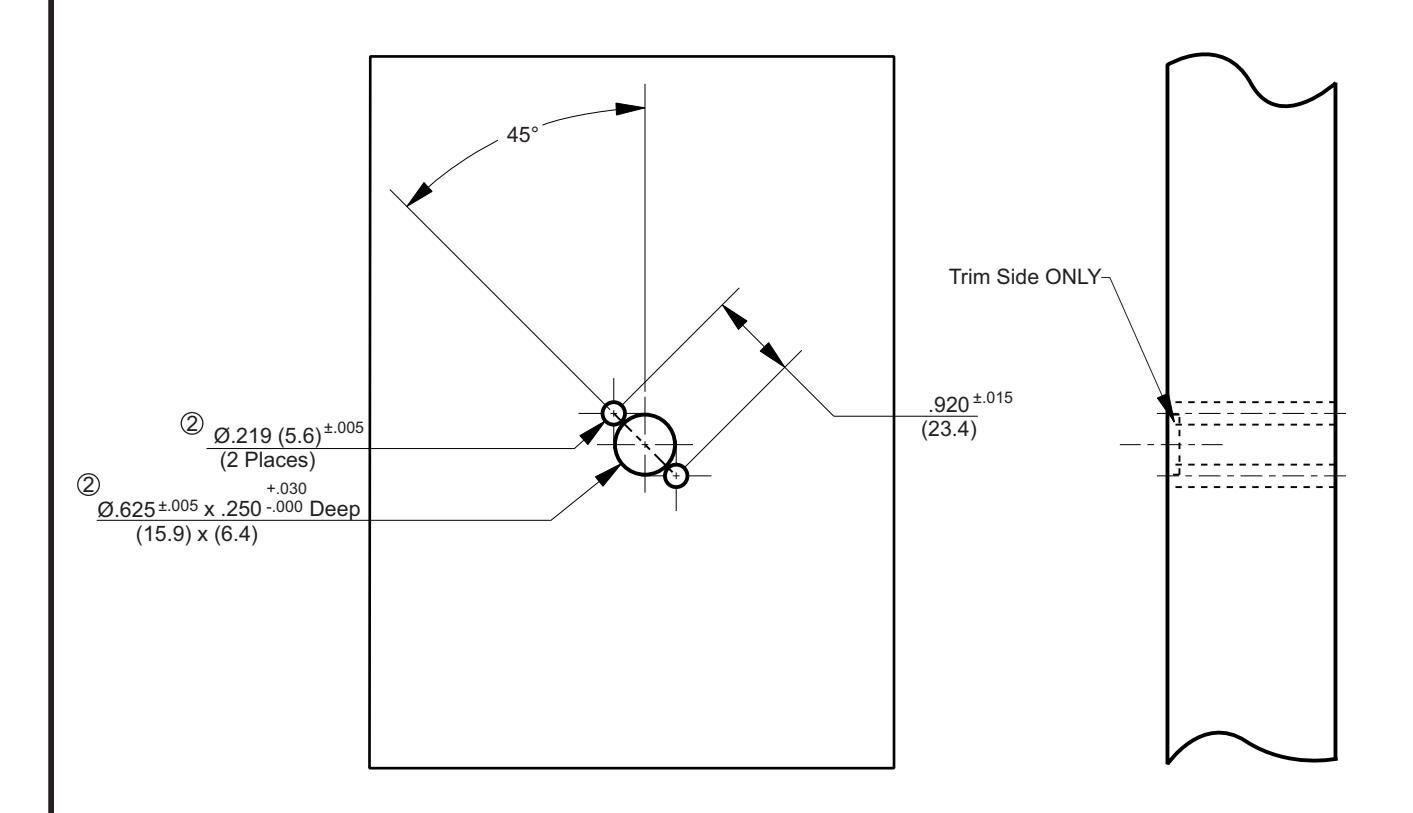

Corbin Russwin Inspire Half Dummy Trim for TL3700 Series Template_T31187

Notes:

1. Dimensions given in inches and (mm).

Template Cross Reference Full Dummy Trim T31186

RESPONSIBILITY

DOOR AND FRAME MANUFACTURERS ARE RESPONSIBLE FOR PROVIDING ADEQUATE CONSTRUCTION OR REINFORCEMENTS FOR PROPER INSTALLATION OF HARDWARE SHOWN. ALL ARCHITECTURAL BUILDERS HARDWARE MUST BE INSTALLED ON PROPERLY REINFORCED DOORS AND FRAMES, REGARDLESS OF TYPE, MATERIAL, OR METHOD OF CONSTRUCTION.

Inspire™ Half Dummy Trim

®

ASSA ABLOY

www.corbinrusswin.com

SUPERSEDES DO NOT SCALE DRAWING T31187-1

TEMPLATE NUMBER

T31187-2 07-14 DATE
