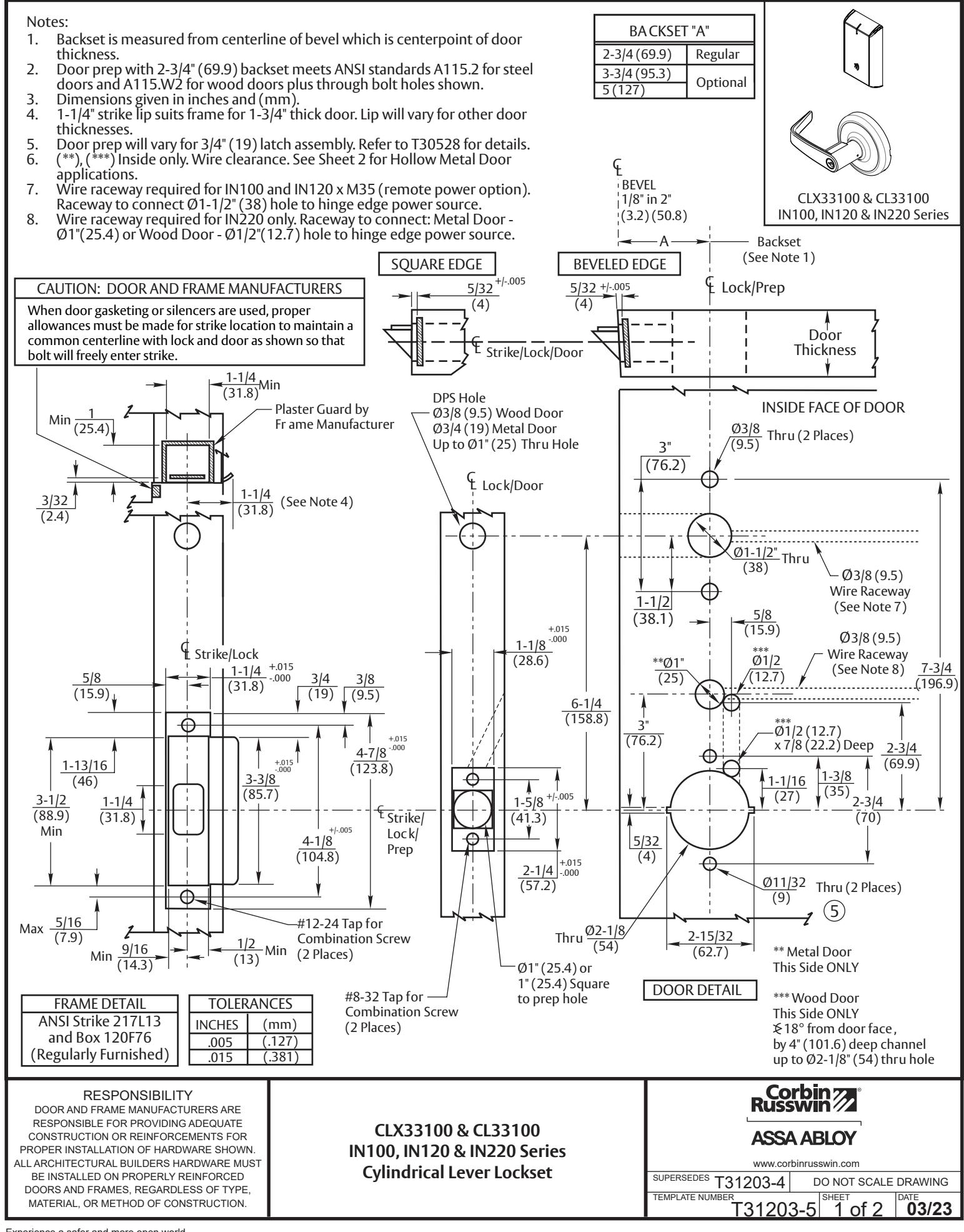

Corbin Russwin IN100, IN120, and IN220 Series CLX3300 and CL3300 Series Cylindrical Locks Template_T31203

Notes:

• 1. Backset is measured from centerline of bevel which is centerpoint of door thickness.
• 2. Door prep with 2-3/4" (69.9) backset meets ANSI standards A115.2 for steel doors and A115.W2 for wood doors plus through bolt holes shown.
• 3. Dimensions given in inches and (mm).
• 4. 1-1/4" strike lip suits frame for 1-3/4" thick door. Lip will vary for other door thicknesses.
• 5. Door prep will vary for 3/4" (19) latch assembly. Refer to template T30528 for details.

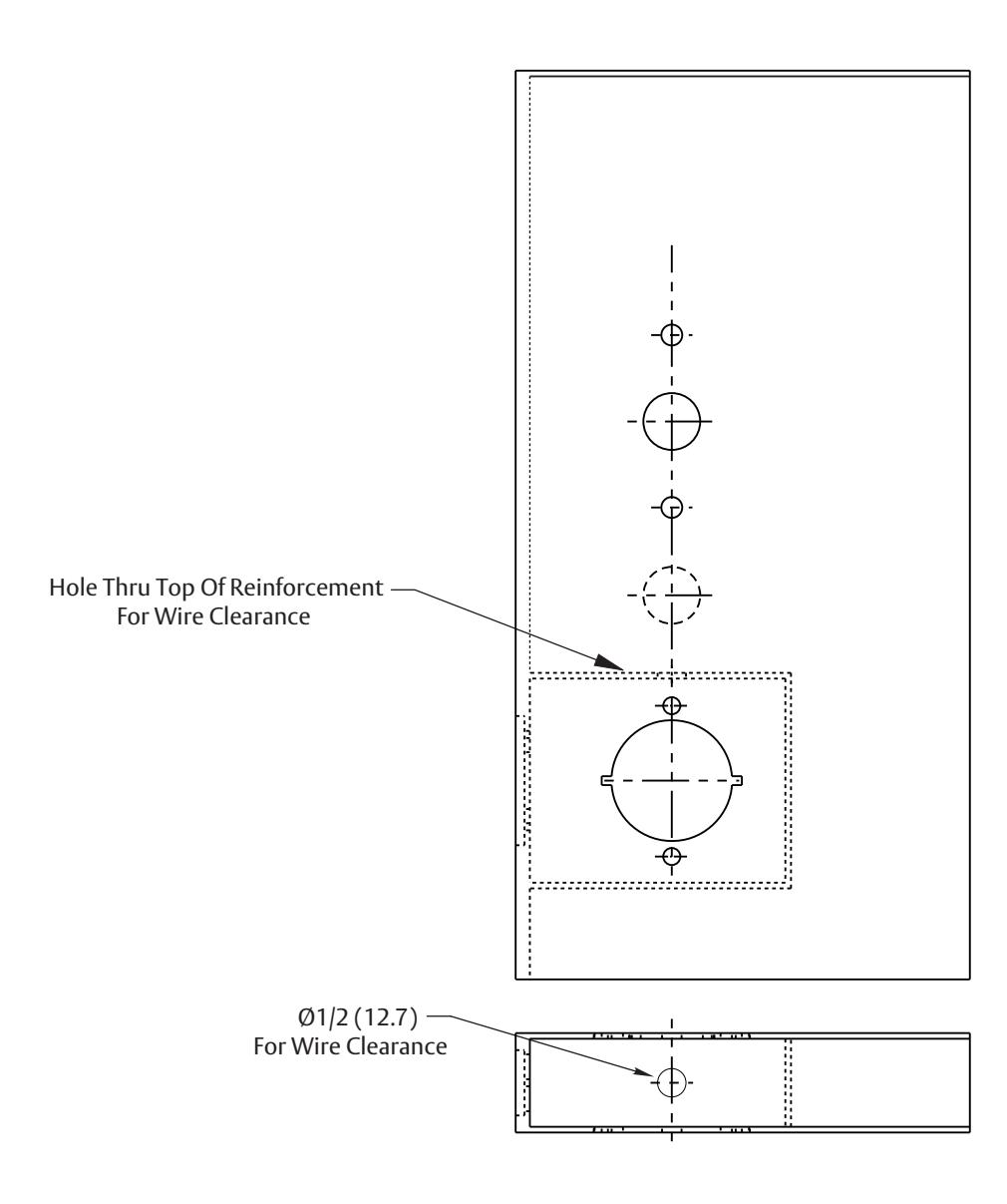

• 6. (**) Inside only. Wire clearance.

RESPONSIBILITY

DOOR AND FRAME MANUFACTURERS ARE RESPONSIBLE FOR PROVIDING ADEQUATE CONSTRUCTION OR REINFORCEMENTS FOR PROPER INSTALLATION OF HARDWARE SHOWN. ALL ARCHITECTURAL BUILDERS HARDWARE MUST BE INSTALLED ON PROPERLY REINFORCED DOORS AND FRAMES, REGARDLESS OF TYPE, MATERIAL OR METHOD OF CONSTRUCTION.

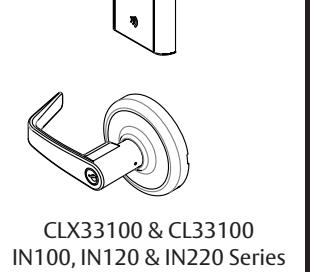

CLX33100 & CL33100 IN100, IN120 & IN220 Series Cylindrical Lever Lockset

Corbin Russwin

ASSA ABLOY

www.corbinrusswin.com

SUPERSEDES T31203-4 DO NOT SCALE DRAWING

T31203-5 2 of 2 DATE 03/23
