Aperio® Wireless Access Control
Available through Authorized Channel Partners only. Contact your local ASSA ABLOY Door Security Solutions sales consultant for details.
Product Catalog
About ASSA ABLOY's Authorized Channel Partner and Certified Integrator Programs
The Corbin Russwin IN100 is part of the expanding ASSA ABLOY family of innovative products combining our proven mechanical locking devices with leading-edge technologies to provide integrated electronic access control solutions. As such, these products require training and certification for resellers and integrators to ensure proper product selection, successful deployment and customer satisfaction.
To aid our customers in this area, ASSA ABLOY has created two programs that provide the necessary training to sell, order, install and service our technology products, including Aperio wireless, Integrated Wiegand, IP-enabled and self-configurable intelligent components:
- The Authorized Channel Partner (ACP) program is open to resellers, who sell ASSA ABLOY's technology products to certified integrators and help with product selection based on the application.
- The Certified Integrator (CI) program provides hands-on training for security systems integrators and network administrators. Not only does this training familiarize certified integrator candidates with product features and applications, it also gives them valuable experience installing, commissioning and troubleshooting the products in a real-world environment.
For more information on the qualifications for becoming an ACP or CI, contact your local ASSA ABLOY Door Security Solutions sales consultant for details.
Sold through: Installed by:
Introduction
IN100 Aperio® Wireless Access Control
Index
|
Features and Benefits 4
Overview 5 |
|
|---|---|
|
ML2000 Mortise Locks
Features 6 How to Order7-8 Quick Codes 9 |
|
|
CLX3300 Cylindrical Locks
Features 10 How to Order 11 Quick Codes 13 |
|
|
ED5000N Exit Devices
Features 14 How to Order15-16 Quick Codes 17 |
|
|
PED5000 Exit Devices
Features 18 How to Order19-21 Quick Codes 22 |
|
|
IN Series Retrofit Kits for Von Duprin®
98/99 series Features 23 How to Order 24 |
|
|
BL6600/FE6600/MP6600
Multi-Point Locks Features 25 How to Order26-27 |
|
|
Alternative Power Options 28
Aperio Configuration Kits 28 Aperio Hub 29 Available Trim Options Mortise Locks |
|
|
and Exit Devices30-31
How to Order Muséo Piet Levers 32 Available Trim Options and Finishes Mortise Locks 33 |
|
| Common Replacement Parts 34 |
For architectural specifications, consult your Door Security Solutions Representative.

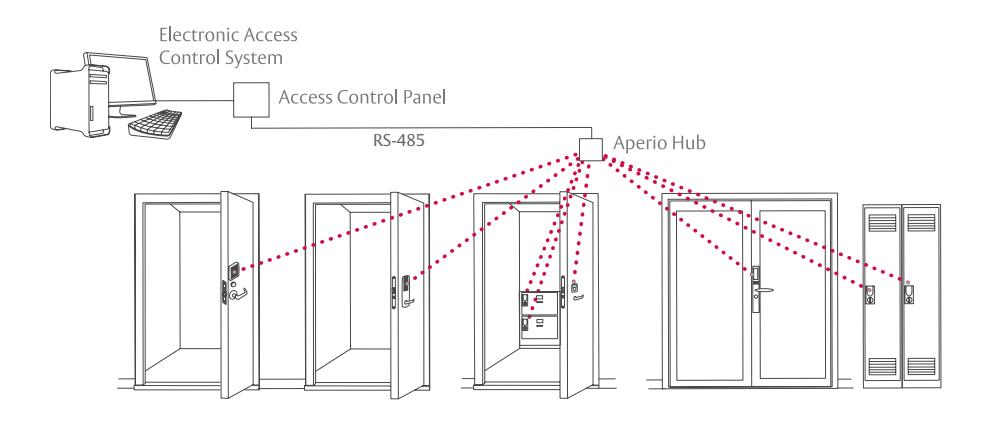

The IN100 offers the convenience and flexibility of Aperio® wireless technology with the real-time communication of online access control, enabling remote lock/unlock in less than 10 seconds. The IN100 also provides simultaneous support for multiple credential types and HID Mobile Access® powered by Seos®. Featuring integrated ANSI/BHMA Grade 1 hardware, the IN100 is ideal for a variety of applications such as schools and corporate office buildings.
IP hub also available for direct connection to IT infrastructure
Features and Benefits
IN100 Aperio® Wireless Access Control
| Features | Benefits |
|---|---|
|
Utilizes IEEE 802.15.4 wireless
communication |
• Eliminates the greatest cost and inconvenience of wired access control -
the wiring around the door |
| • Leverages EAC or IP infrastructure | |
| • Ideal for hard-to-wire locations | |
| multiCLASS SE® Technology from | • Provides heightened security |
| HID Global® |
• Supports:
– A wide range of credential technologies, offering easy migration to higher security credentials or consolidation of mixed credentials – HID Mobile Access® powered by Seos®, for iOS® and Android™ devices |
| Real-time communication |
• Alarms and events are communicated in real time to the EAC system
• Access decisions are determined in real time by the EAC system • Schedules and door states can be initiated/changed in real time* |
| Centralized decision making | • System capacities bounded by the EAC system, not the locking device |
| • Access decisions based on the current system information | |
| Privacy button* | • Enables shelter in place/local lockdown |
| • Offers privacy capabilities for applications such as restrooms | |
| Smart Credential Cache |
• Allows previously authorized credentials to be granted access when the EAC infrastructure
is offline for any reason |
| • Can be enabled/disabled | |
| • Programmable cache size/validity time | |
|
Integrated ANSI/BHMA Grade 1
hardware, available in cylindrical lock, |
• Flexibility to support various openings |
|
mortise lock, multi-point and exit device
configurations |
• Assurance of high quality Corbin Russwin hardware |
| Superior aesthetics | • Blends into any environment seamlessly |
| • Designed to meet the requirements of designers and architects | |
| • Available with a wide range of finishes and decorative levers | |
| • Suites with other IN Series locks, regardless of technology |
* Access Control Partner software dependent. Contact your local ASSA ABLOY Integrated Solutions Specialist for more information.
Overview
IN100 Aperio® Wireless Access Control
Credential Support:
IN100 locks feature HID® multiCLASS SE® technology
to support the following credentials:
-
High Frequency (13.56 MHz):
- HID iCLASS®
- HID iCLASS SE® (SIO-enabled)
- HID iCLASS® Seos™
- HID MIFARE® SE
- HID DESFire® EV1 SE
- MIFARE Classic
- DESFire EV1
- DESFire EV2/EV3 (EV1 Compatibility)
- PIV/PIV-I (40-bit BCD, 64-bit BCD, 75 bit, 128-bit or 200-bit outputs)
-
Low Frequency (125 kHz):
- HID Prox®, AWID, EM4102
-
NFC & BLE-enabled Mobile Phones:
- HID Mobile Access® (BLE and NFC)
- Apple Wallet Seos or DESFire® (NFC)
- Google Wallet DESFire® (NFC)
Environmental Specifications:
-
Operating temperature:
- -13°F (-25°C) to 151°F (66°C)
- Humidity: < 85% non-condensing
-
Storage temperature:
- -22°F (-30°C) to 176°F (80°C)
Security:
- AES 128-bit encryption
- For specific security information, please contact your local ASSA ABLOY Door Security Solutions sales representative or call 800-810-Wire.
Software:
- Works with ASSA ABLOY Aperio Access Control Partner software, allowing simple integration into existing or new systems
-
Software Development Kits (SDK) and support available to integrate into other third party access control systems. For assistance, email:
- OEMSupport_Group@assaabloy.com

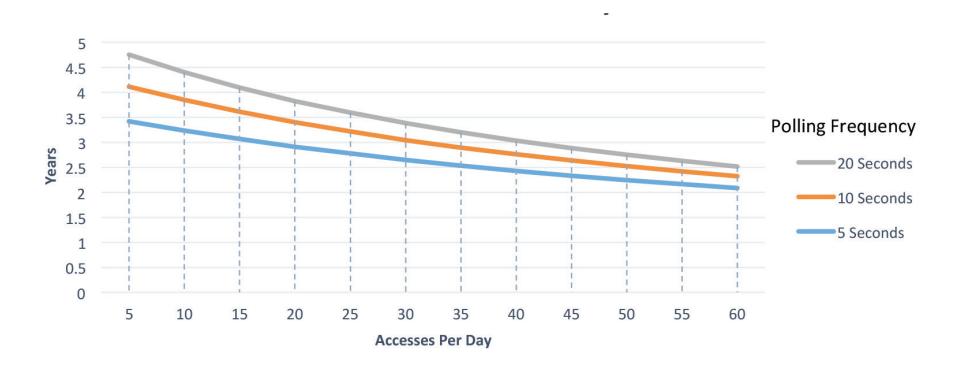

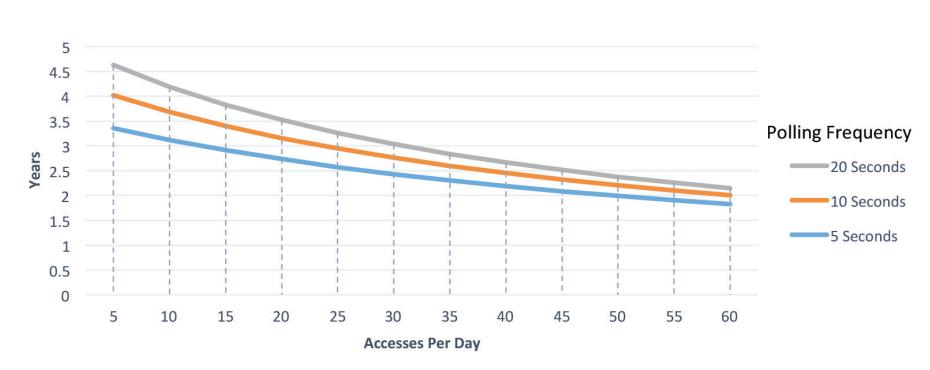

Battery Life
CYLINDRICAL LOCKS & EXIT DEVICES
MORTISE LOCKS
Battery life data was calculated using Duracell batteries.
Features
ML2000 IN100 Mortise Locks
Mortise Lock ML2000
1-3/4" (44mm) standard.
Quick Code section.

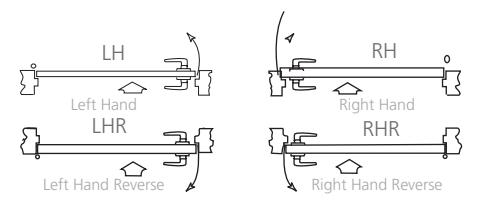

Features Handing
lock body. Door Thickness
Backset 2-3/4" (70mm). Lockcase
(24mm). Front
Auxiliary Latchbolt
9/16" (14mm) effective throw and 3/8" (10mm) effective auxiliary latch deadlocking.
hardware finishes. EcoFlex® technology offers improved battery life.
Deadbolt
One-piece stainless steel, 19/32" (15mm) x 1-1/4" (32mm) x 1" (25mm) throw.
The IN100 mortise lock has a clean, crisp design and is available with a variety of lever designs and
Hub
Steel, 5/16" (8mm).
Strike
Wrought brass, bronze or stainless steel ANSI straight lip standard, 4-7/8" (124mm) x 1-1/4" (32mm) x 1-1/8" (29mm) lip to center.
Optional strikes, lip lengths and ANSI wrought strike box available.
Cylinder
CR1000-118-A01, 6-pin, L4, keyed random, furnished standard for 1-3/4" (44mm) door.
Optional cylinders available.
Keying Features Available
Master keying
Construction master keying
Visual key control
Concealed key control
Interchangeable core (LFIC OR SFIC)
Security
Security LFIC
Access 3
Access 3 LFIC
Pyramid
Pyramid LFIC
Heavy-gauge steel, 8" (203mm) x 1-1/4"
Heavy-gauge chrome plated steel, 5-7/8" (149mm) x 4" (102mm) x 15/16"
(32mm) x 3/32" (2mm). Accommodates non-beveled and beveled doors 1/8" (3mm) in 2" (51mm).
Handed; quick reversibility. The lockset can be re-handed without disassembling the
Optional 2" (50mm) to 2-1/4" (57mm); see
Armored Front
Wrought brass, bronze or stainless steel attached by machine screws to lockcase front.
Latch
Quick, reversible 2-piece mechanical with anti-friction insert 5/8" (16mm) x 1" (25mm) x 3/4" (19mm).
Environmental Specifications Operating Temperature:
-13°F (-25°C) to 151°F (66°C)
Operating humidity:
5% to 95% relative humidity non-condensing
EcoFlex®
EcoFlex technology reduces power consumption up to 92% as certified by GreenCircle
INI100.6 45482 03/24
ML20100 Monitoring
- Request to Exit
- Door Position (external)
ML20200 Monitoring
- Request to Exit
- Deadbolt
- Auxiliary latch
- Latch bolt
- DPS cylinder monitoring (indirect) integrated into lock body
Warranty
10-year limited mechanical.
2-year limited electrical.
Shipping Weight Approx. 11 lbs.
Certification/Compliance
ANSI/BHMA
Meets A156.13, Grade 1 requirements. Meets A117.1 Accessibility Code. Meets A156.25 requirements.
UL /ULC-UL10C Positive Pressure
All locks listed for A label and lesser class doors, 4' (122cm) x 10' (305cm) single or 8' (244cm) x 10' (305cm) pair. Letter F and UL symbol on armored front indicate listing.
Any retrofit or other field modification to a fire rated opening can potentially impact the fire rating of the opening, and Corbin Russwin, Inc. makes no representations or warranties concerning what such impact may be in any specific situation. When retrofitting any portion of an existing fire rated opening, or specifying and installing a new fire-rated opening, please consult with a code specialist or local code official (Authority Having Jurisdiction) to ensure compliance with all applicable codes and ratings.
ML2000 IN100 Mortise Locks
Build your order string:
| Required Options | Other Options | ||||||
|---|---|---|---|---|---|---|---|
| Function | Trim | Finish | Handing | Technology Code | Reader Code | Reader Modifier |
Cylinder, Strike, Door
Thickness |
| ML201 | IN100 | BIPS |
For finish, additional cylinder, and/or mechanical options, please refer to page 9.
| Function | Type | Monitoring | Function Description |
|---|---|---|---|
|
ML20133
No Key Override No Deadbolt |
Entry | • Request to Exit |
• Deadlocking latch
• Latch retracted by inside lever at all times • Outside lever rigid except when in "passage" mode or valid credential presented |
|
ML20134
With Key Override No Deadbolt |
Entry |
• Door Position
(external) |
• Deadlocking latch
• Latch retracted by inside lever at all times • Outside lever rigid except when in "passage" mode or valid user code entered • Key outside retracts latch • No deadbolt function |
|
ML20233
No Key Override No Deadbolt |
Entry |
• Deadlocking latch
• Latch retracted by inside lever at all times • Outside lever rigid except when in "passage" mode or valid user code entered |
|
|
ML20234
With Key Override No Deadbolt |
Entry |
• Request to Exit
• Deadbolt • Auxiliary latch |
• Deadlocking latch
• Latch retracted by inside lever at all times • Outside lever rigid except when in "passage" mode or valid user code entered • Key outside retracts latch • No deadbolt function |
|
ML20235
No Key Override With Deadbolt1 |
Entry |
• Latch bolt
• DPS cylinder monitoring (indirect) integrated into lock body |
• Deadlocking latch
• Latch and deadbolt retracted by inside lever at all times • Outside lever rigid except when in "passage" mode or valid user code entered |
|
ML20236
With Key Override With Deadbolt1 |
Entry |
• Deadlocking latch
• Latch and deadbolt retracted by inside lever and deadbolt at all times • Outside lever rigid except when in "passage" mode or valid user code entered • Key outside projects or retracts deadbolt and |
| Reader Code | Credentials |
|---|---|
| BIPS |
HID Prox®, iCLASS®, iCLASS SE®, iCLASS® Seos®, SIO on
MIFARE® Classic, SIO on MIFARE DESFire® EV1 MIFARE Classic, MIFARE DESFire EV1, HID Mobile Access, Apple Wallet, Google Pay |
| Reader Modifier | Description |
|---|---|
| B | Black reader, black trim |
| MB | Black reader, metal trim |
Note: Metal trim for the reader is supplied in the finish specified in the order string. It is not available in stainless steel (629/630/630C) but will be plated to match.
retracts latch
ML2000 IN Series Mortise Locks

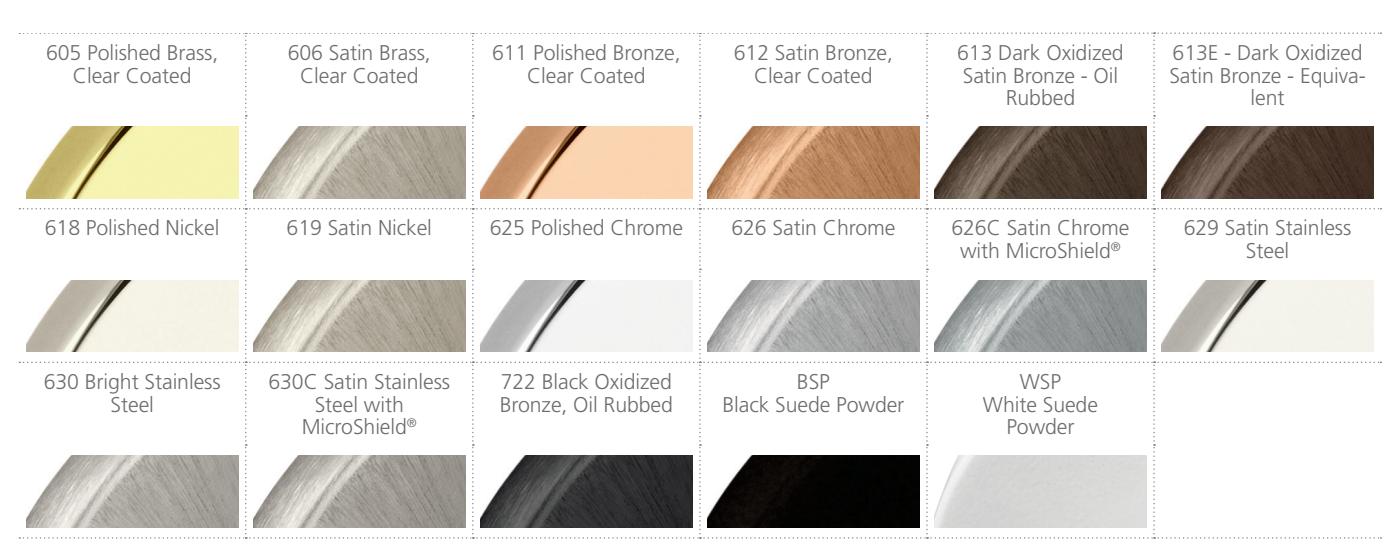

Finishes
| Description | Specify |
| Polished Brass, Clear Coated | 605 |
| Satin Brass, Clear Coated | 606 |
|
Polished Bronze, Clear
Coated |
611 |
| Satin Bronze, Clear Coated | 612 |
|
Dark Oxidized Satin Bronze,
Oil Rubbed |
613 |
|
Dark Oxidized Satin Bronze -
Equivalent |
613E |
| Description | Specify |
| Polished Nickel | 618 |
| Satin Nickel | 619 |
| Polished Chrome | 625 |
| Satin Chrome | 626 |
|
Satin Chrome
with MicroShield® |
626C |
|
Black Oxidized Bronze,
Oil Rubbed |
722 |
| Description | Specify |
| Satin Stainless Steel | 629* |
| Bright Stainless Steel | 630* |
|
Satin Stainless Steel with
MicroShield® |
630C* |
| Black Suede Powder Coat | BSP |
| White Suede Powder Coat | WSP |
* Metal escutcheon trim (MB) plated to match

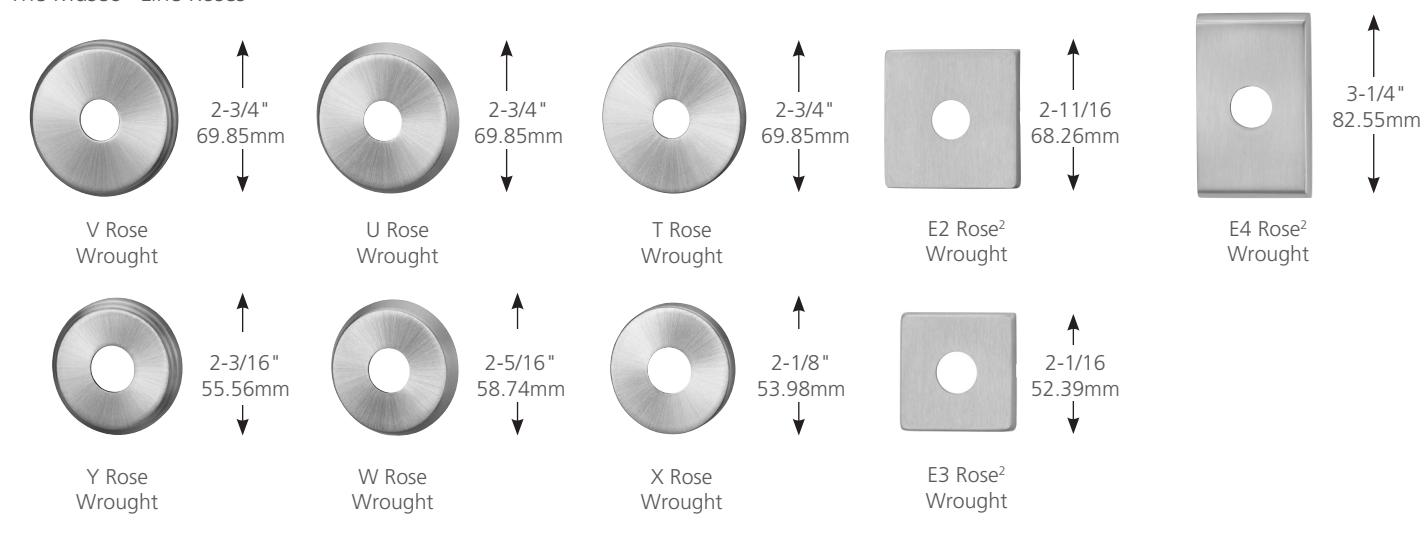

Roses
The roses shown are some of our most popular styles. To see the complete list of available roses, refer to page 33.
T X E2 E3 E41

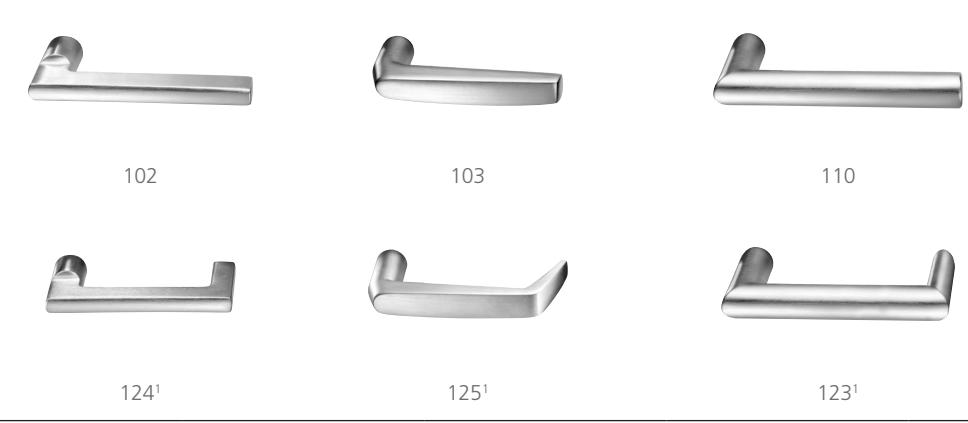

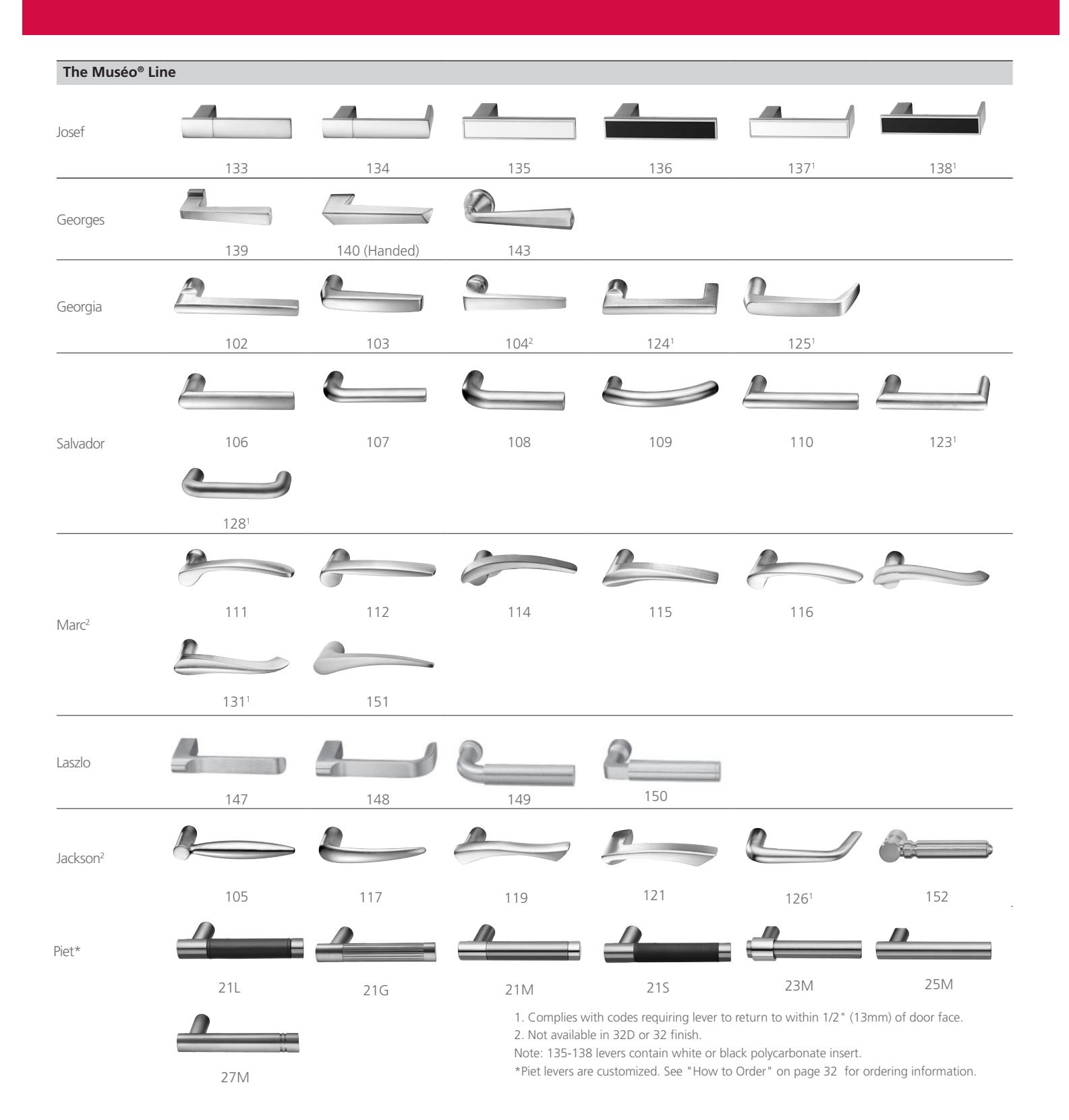

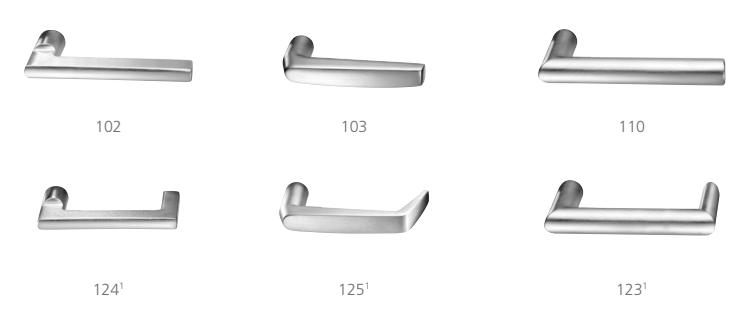

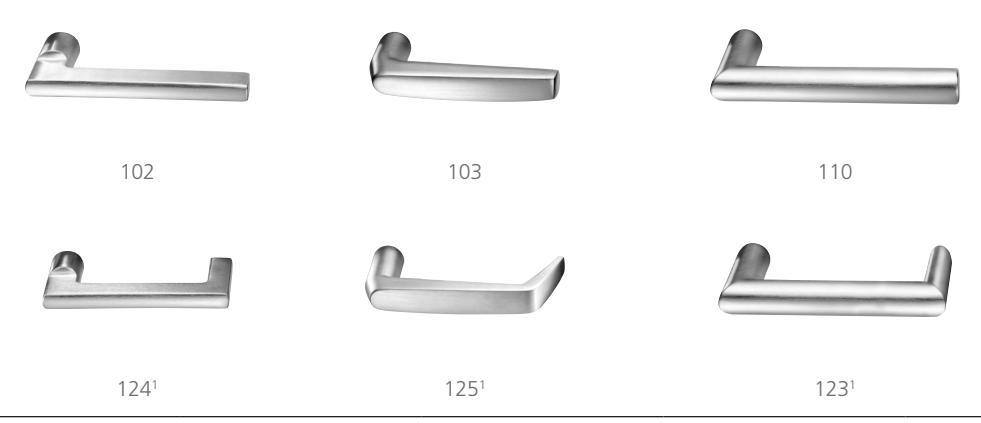

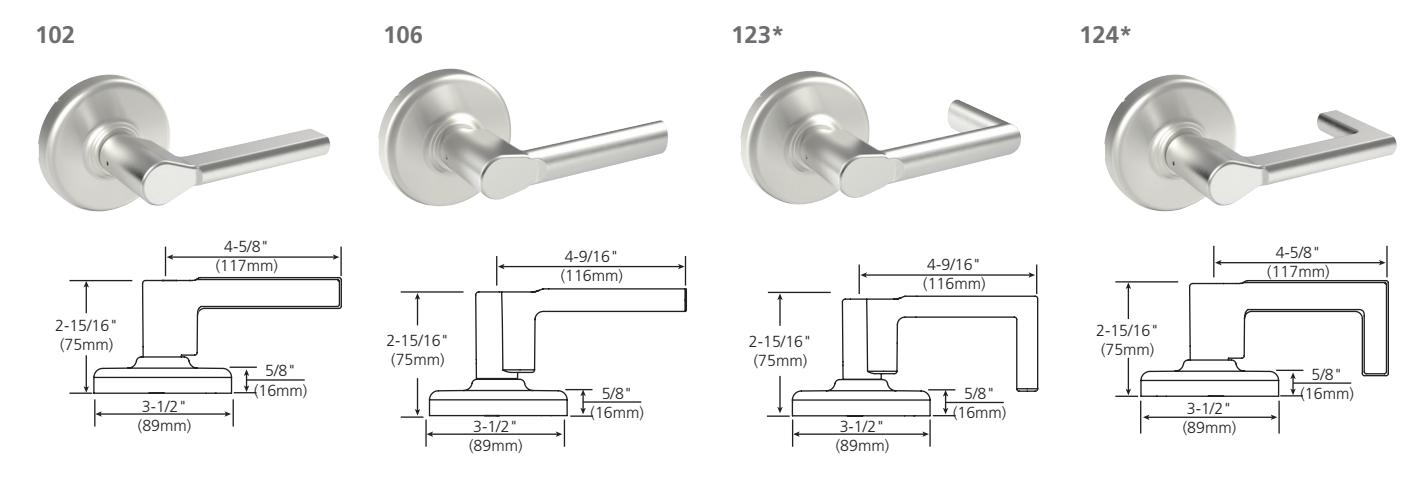

Levers
The levers shown here are some of our most popular styles from the Muséo Collection. To see the complete range of levers, refer to pages 30-31.
102 103 110
1242 1252 1232

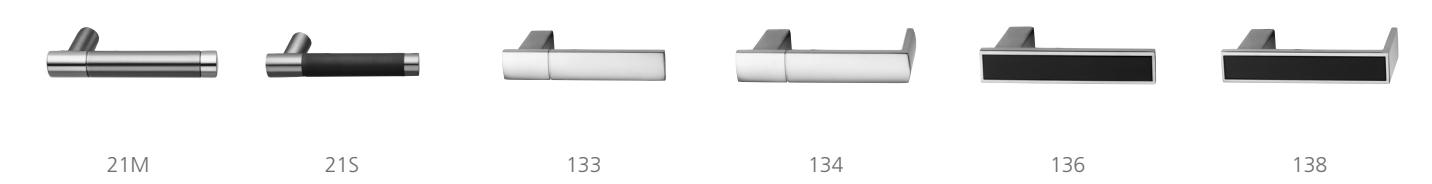

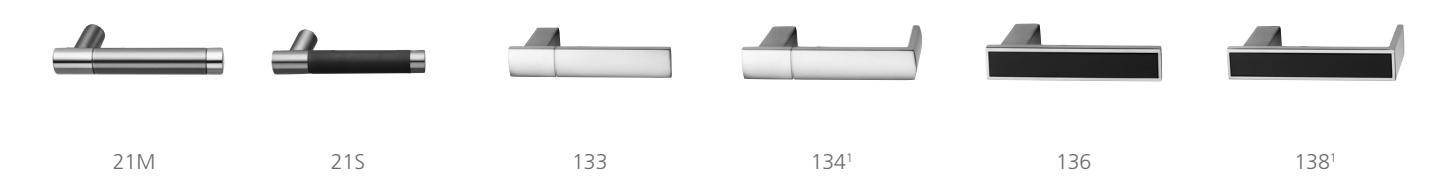

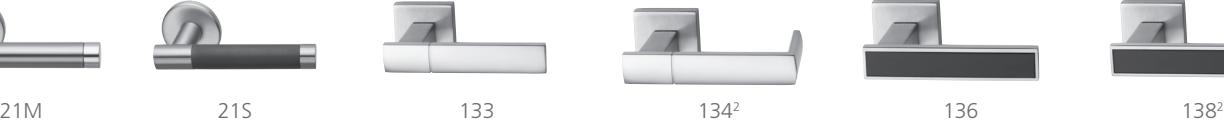

Premium Levers
21M 21S 133 1342 136 1382
1 Rose design suites with IN100 reader. 2 Lever returns within 1/2" (13 mm) of door face.
Quick Codes
ML2000 IN Series Mortise Locks
Cylinders and Keying
| Cylinders and Keying | |
|---|---|
| Description | Specify |
| Conventional 6-pin | (standard) |
| Conventional 7-pin | 7P |
| Less Cylinder(s) | LC |
| LFIC | |
| LFIC 6-pin | C6 |
| LFIC 6-pin with Temporary | |
| Construction Core (Red) | CT6R |
|
LFIC 6-pin with Temporary
Construction Core (Blue) |
CT6B |
|
LFIC 6-pin with Temporary
Construction Core (Green) |
CT6G |
| LFIC 6-pin Less Core | CL6 |
| LFIC 7-pin | C7 |
|
LFIC 7-pin with Temporary
Construction Core (Red) |
CT7R |
|
LFIC 7-pin with Temporary
Construction Core (Blue) |
CT7B |
|
LFIC 7-pin with Temporary
Construction Core (Green) |
CT7G |
| LFIC 7-pin Less Core | CL7 |
| SFIC | |
| SFIC 6-pin with Less Core | CLS6 |
| SFIC 6-pin with SFIC | |
| disposable temporary core | CT6SD |
| SFIC 7-pin with Less Core | CLS7 |
| SFIC 7-pin with SFIC | |
| disposable temporary core | CT7SD |
| Security | |
| Security | HS |
| Security IC | CHS |
| Access 3® | |
| Access 3® Patented | AP |
| Access 3® Security | AS |
| Access 3® High Security | AHS |
| Access 3® Patented IC | ACP |
| Access 3® Security IC | ACS |
| Access 3® High Security IC | ACHS |
| Pyramid | |
| Pyramid Fixed Core | PHS |
| Pyramid IC | PCHS |
| Pyramid IC Less Core | CLP |
|
Pyramid with Temporary
Construction Core |
CTP |
| Pyramid Security | PS |
| Pyramid Security IC | PCS |
| Pyramid Disposable Core | CTPD |
| Keying and Keys | |
| 6-pin Disposable Core | CT6D |
| 7-pin Disposable Core | CT7D |
| Keyed Random (Standard) | KR |
|
Construction Master Keyed
(not available for Pyramid) |
CMK |
| 2 Keys per Lock | (standard) |
| More than 2 Keys | KY# |
Cylinders and Keying (Cont.)
| Description | Specify |
|---|---|
| Visual Key Control | |
|
No Keying Data
Stamped on Key or Cylinder |
VKC0 |
| Keys Only | VKC1 |
|
Cylinders and Keys (not
for HS, CHS, PHS or PCHS) |
VKC2 |
|
Cylinders Only (not for -
HS, CHS, PHS or PCHS) |
VKC3 |
| Concealed Key Control (CKC) | |
|
CKC Cylinders with
VKC Keys |
CKC2 |
|
CKC Cylinders Only (not
for PHS, PCHS) |
CKC3 |
Miscellaneous Options
| Description | Specify |
|---|---|
| Torx® head screws | M04 |
| ANSI wrought strike box | M17 |
| Knurling outside and inside1 | M20² |
| Knurling outside only1 | M212 |
| Knurling inside only1 | M222 |
|
Abrasive coat outside and
inside1 |
M23 |
| Abrasive coat inside only1 | M24 |
| Abrasive coat outside only1 | M25 |
- 1 Not available with Vineyard or Museo levers.
- 2 All levers provided in a powder coat finish will be supplied with an abrasive coating
Door Thickness
| Door Thickness | Specify |
|---|---|
| 1-3/4" (44mm) | (standard) |
| 1-7/8" (48mm) | D178 |
| 2" (51mm) | D200 |
| 2-1/8" (54mm) | D218 |
| 2-1/4" (57mm) | D214 |
Strikes
|
ANSI
Lip to Center |
ANSI
Straight Lip Specify |
Curved Lip
Specify |
| 7/8" (22mm) | SS078 | N/A |
| 1-1/8" (29mm) | (standard) | N/A |
| 1-1/4" (32mm) | SS114 | SA114 |
| 1-3/8" (35mm) | SS138 | SA138 |
| 1-1/2" (38mm) | SS112 | SA112 |
| 1-3/4" (44mm) | SS134 | SA134 |
| 2" (51mm) | SS200 | SA200 |
| 2-1/4" (57mm) | SS214 | SA214 |
| 2-1/2" (64mm) | SS212 | SA212 |
| 2-3/4" (70mm) | SS234 | SA234 |
| 3" (76mm) | SS300 | SA300 |
| Open Back Strike | Door Thickness | Specify |
| 1-3/4" (44mm) | SB134 | |
| 2" (51mm) | SB200 | |
| 2-1/4" (57mm) | SB214 | |
| Rabbeted front and strike - Specify | SR118 |

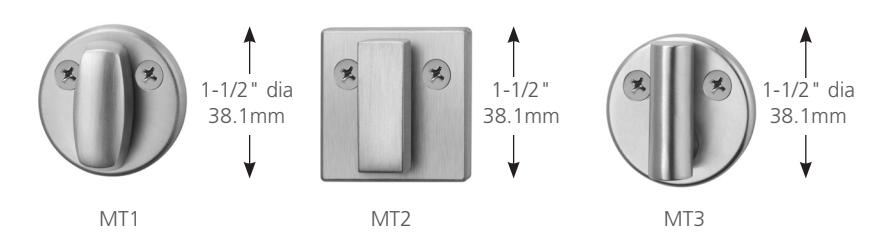

Thumbturns
| Description | Specify |
| Decorative | MT1 |
| Decorative Square | MT2 |
| Decorative Cylinder | MT2 |
Handing
| Hand | Specify |
| Right Hand | RH |
| Left Hand | LH |
| Right Hand Reverse | RHR |
| Left Hand Reverse | LHR |
Note: Arrow indicates secure side of door.
Features

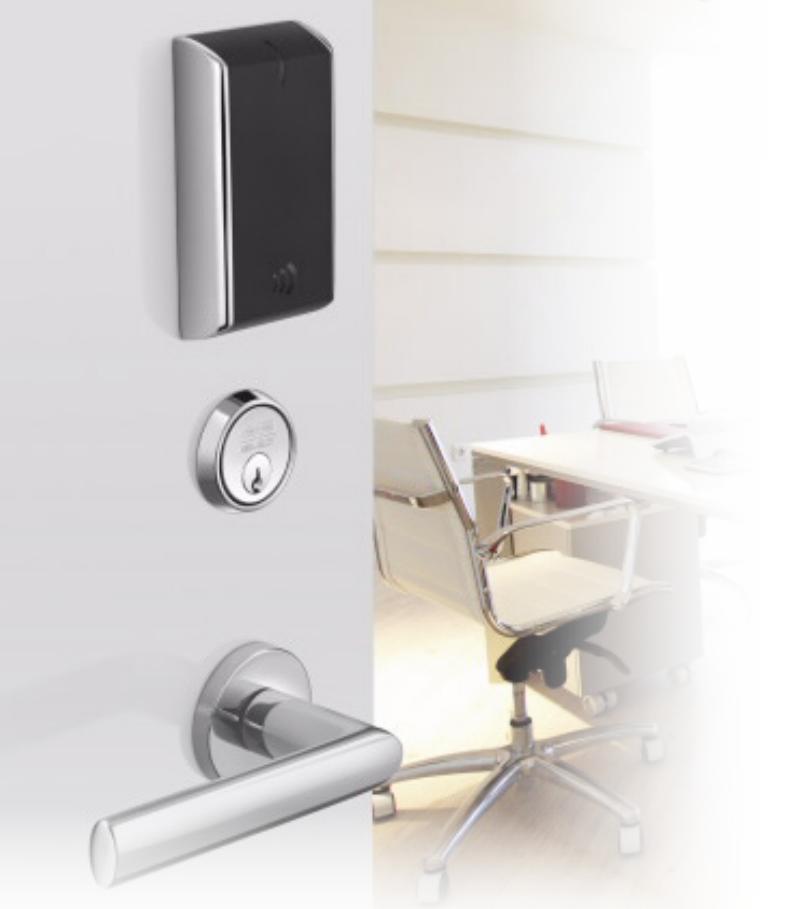

CLX3300 IN100 Cylindrical Lock
Cylindrical Lock CLX33100
Features
Non-handed
Door Thickness
1-3/4" (44mm) to 2" (50mm) standard, 2" (50mm) to 2-1/4" (57mm) optional
Lock Chassis
Steel, zinc dichromated for corrosion resistance.
Backset
2-3/4" (70mm) standard.
Optional: 3-3/4" (95mm) and 5" (127mm).
Latchbolt
Stainless steel, 1/2" (13mm) throw. Optional: 3/4" (19mm) throw deadlocking fire latch for pair of doors.
Auxiliary Latchbolt
Deadlocking latchbolt prevents manipulation when door is closed.
Front
Wrought brass or stainless steel, 2-1/4" (57mm) x 1-1/8" (29mm). Accommodates non-beveled and beveled doors 1/8" (3mm) in 2" (51mm). Optional: rounded corners.
The IN100 CLX3300 design provides uniformity when used with other Corbin Russwin CLX3300 locks at a facility. The product features seven different lever designs, thirteen hardware finishes and cylinder override.
Strike
Wrought brass or stainless steel ANSI curved lip standard, 4-7/8" (124mm) x 1-1/4" (32mm) x 1-1/4" (32mm) lip to center.
Optional strikes, lip lengths and ANSI wrought strike box available
Cylinder
Brass, 6-pin, L4 keyway, 0-bitted standard.
Keying Features Available
Master keying
Construction master keying
Visual key control
Concealed key control
Interchangeable core (LFIC or SFIC)
Security
Security LFIC
Access 3
Access 3 LFIC
Pyramid
Pyramid LFIC
Environmental Specifications
-
Operating temperature:
- -13°F (-25°C) to 151°F (66°C)
- Operating humidity: 5% to 95% relative humidity non-condensing
Keys
Two nickel silver standard.
Key Override
Standard not available with non-key override.
EcoFlex®
EcoFlex technology reduces power consumption up to 92% as certified by GreenCircle
Monitoring
- Request to Exit (Non-Handed)
- Door Position Switch (Supplied and mounted above the lock. Connects directly into the lock's electronics.)
Warranty
10-year limited mechanical; 2-year limited electrical.
Shipping Weight Approx. 11 lbs.
Certification/Compliance
ANSI/BHMA
Meets A156.2 Grade 1 requirements.
California State Reference Code (Formerly Title 19, California State Fire Marshal Standard) All levers with returns comply; levers return to within 1/2" (13mm) of door face.
UL /ULC-UL10C Positive Pressure All locks with 1/2" (13mm) throw latchbolt listed for A label and lesser class 4' x 10' single doors. All locks with 3/4" (19mm) throw latchbolt listed for A label and lesser class 8' x 10' pairs of doors. Letter F and UL symbol on latch front indicate listing.
Any retrofit or other field modification to a fire rated opening can potentially impact the fire rating of the opening, and Corbin Russwin, Inc. makes no representations or warranties concerning what such impact may be in any specific situation. When retrofitting any portion of an existing fire rated opening, or specifying and installing a new fire-rated opening, please consult with a code specialist or local code official (Authority Having Jurisdiction) to ensure compliance with all applicable codes and ratings.
CLX3300 IN100 Cylindrical Lock
Build your order string:
| Required Options | Other Options | ||||||
|---|---|---|---|---|---|---|---|
| Function | Trim | Finish | Handing | Technology Code | Reader Code | Reader Modifier |
Cylinder, Strike, Door
Thickness |
| CLX33134 | IN100 | BIPS | — | ||||
For finish, additional cylinder, and/or mechanical options, please refer to page 13.
| Series/Function | Type | Function Description |
|---|---|---|
|
CLX33134
With Key Override |
Entry |
• Latch retracted by inside lever at all times.
• Key outside retracts latch. • Outside lever locked (freewheeling) except when in "passage" mode or valid user code entered. |

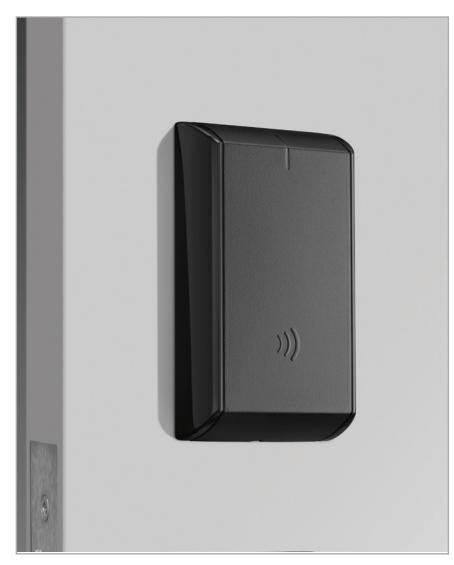

| Reader Modifier | Description |
|---|---|
| B | Black reader, black trim |
| MB | Black reader, metal trim |
Note: Metal trim for the reader is supplied in the finish specified in the order string.
Trim
CLX3300 IN100 Cylindrical Lock

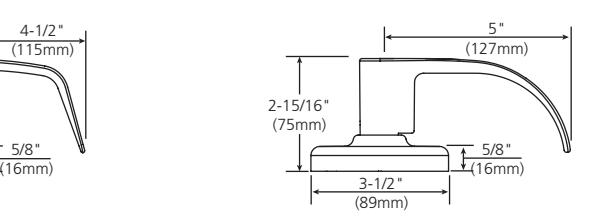

Levers - Solid Cast Zinc
Newport* NZ
Princeton* PZ
Decorative Levers
* Lever with return to within 1/2" of door face.
Rose Wrought Brass
Quick Codes
CLX3300 IN100 Cylindrical Lock
| Cylinders and Keying | |
|---|---|
| Description | Specify |
| Conventional 6-pin | (standard) |
| Conventional 7-pin | 7P |
| Less Cylinder(s) | LC |
| LFIC | |
| LFIC 6-pin | C6 |
| LFIC 6-pin Less Core | CL6 |
| LFIC 6-Pin Disposable Core | CT6D |
|
LFIC 6-pin with Temporary
Construction Core (Red) |
CT6R |
|
LFIC 6-pin with Temporary
Construction Core (Blue) |
CT6B |
|
LFIC 6-pin with Temporary
Construction Core (Green) |
CT6G |
| LFIC 7-pin | C7 |
| LFIC 7-pin Less Core | CL7 |
| LFIC 7-Pin Disposable Core | CT7D |
|
LFIC 7-pin with Temporary
Construction Core (Red) |
CT7R |
|
LFIC 7-pin with Temporary
Construction Core (Blue) |
CT7B |
|
LFIC 7-pin with Temporary
Construction Core (Green) |
CT7G |
| SFIC (all lever designs) | |
| SFIC 6-pin | C6S |
|
SFIC 6- or 7-pin Disposable
Core |
CTSD |
|
SFIC 6-pin with Temporary
Construction Core (Blue) |
CT6SB |
| SFIC 7-pin | C7S |
|
SFIC 7-pin with Temporary
Construction Core (Blue) |
CT7SB |
| Security | |
| Security | HS |
| Security LFIC | CHS |
| Access 3® | |
|
Access 3 Patented Fixed
Core |
AP |
| Access 3 Security Fixed Core | AS |
|
Access 3 High Security Fixed
Core |
AHS |
| Access 3 Patented LFIC | ACP |
| Access 3 Security LFIC | ACS |
| Access 3 High Security LFIC | ACHS |
| Pyramid | |
| Pyramid Security Fixed Core | PS |
|
Pyramid High Security Fixed
Core1 |
PHS |
| Pyramid Security LFIC | PCS |
| Pyramid High Security LFIC | PCHS |
| Pyramid LFIC Less Core | CLP |
|
Pyramid with Temporary
Construction Core |
CTP |
| Cylinders and Keying | |
|---|---|
| Description | Specify |
|---|---|
| Keying and Keys | |
| 0-bitted with 2 blank keys | (standard) |
| Keyed Random | KR |
| Construction Master Keyed | CMK |
| 2 keys per lock | (standard) |
| More than 2 keys |
KY#
(e.g., KY6) |
| Visual Key Control (VKC) | |
|
No bitting or keyset
stamping on keys |
VKC0 |
| Keys only | VKC1 |
|
Cylinders and keys (not for
AS, AHS, ACS, ACHS, HS, CHS, PHS or PCHS) |
VKC2 |
|
Cylinders only (not for AS.
AHS, HS, ACS, ACHS, CHS, PHS or PCHS) |
VKC3 |
|
Concealed Key Control
(CKC) |
|
|
CKC cylinders with VKC
keys |
CKC2 |
|
CKC cylinders only (not for
AS, AHS, ACS, ACHS, PHS, PCHS) |
CKC3 |
|
Schlage® C keyway cylinder
(0-Bitted or KR)1 |
C |
|
SARGENT® LA keyway cylinder
(0-Bitted)1 |
LA |
Finish
| Description | Specify |
|---|---|
| Polished Brass, Clear Coated | 605 |
| Satin Brass, Clear Coated | 606 |
| Polished Bronze, Clear Coated | 611 |
| Satin Bronze, Clear Coated | 612 |
|
Dark Oxidized Satin Bronze,
Oil Rubbed |
613 |
|
Dark Oxidized Satin Bronze -
Equivalent |
613E |
| Polished Nickel | 618 |
| Satin Nickel | 619 |
| Polished Chrome | 625 |
| Satin Chrome | 626 |
|
Black Oxidized Bronze,
Oil Rubbed |
722 |
|
Satin Chrome
with MicroShield® |
626C |
| Black Suede Powder | BSP |
| White Suede Powder | WSP |
Backset
| Description | Specify |
|---|---|
| 2-3/4" (70mm) | (standard) |
| 3-3/4" (95mm) | B334 |
| 5" (127mm) | B500 |
Miscellaneous Options
| Description | Specify |
| Spanner head screws | M02 |
| Torx® head screws | M04 |
|
Less cylinder, with tailpiece for
Schlage® 6-pin fixed core cylinder (all designs) |
M06 |
|
Lever to accept 6 or 7-pin SFIC (all
designs) |
M08 |
|
Lever to accept SARGENT® 6-pin
fixed core cylinder (all designs) |
M09 |
| Rounded corners on latch front | M13 |
| 3/4" (19mm) throw fire latch1 | M16 |
| ANSI wrought strike box | M17 |
|
Knurling outside and inside (AZ,
NZ, PZ only) |
M201 |
|
Knurling outside only (AZ, NZ,
PZ only) |
M211 |
|
Knurling inside only (AZ, NZ, PZ
only) |
M221 |
|
Abrasive coat outside and inside
(AZ, NZ, PZ only) |
M23 |
|
Abrasive coat inside only (AZ, NZ,
PZ only) |
M24 |
|
Abrasive coat outside only (AZ,
NZ, PZ only) |
M25 |
|
Lever to accept Schlage® LFIC (AZ,
NZ, PZ only) |
M69 |
| Rigid outside lever when locked | M200 |
|
Less cylinder, with tailpiece for
Yale® 6-pin fixed core cylinder (all designs) |
YC |
|
Less cylinder, with tailpiece for
Yale® 7-pin fixed core cylinder (all designs) |
YC7 |
|
Lever to accept Yale® 6-pin LFIC
(AZ, NZ, PZ only) |
YRC |
1 All levers provided in a powder coat finish will be supplied with an abrasive coating
Strikes
| Lip to Center |
ANSI
Curved Lip Specify |
Curved Lip
Box Specify |
| 1" (25mm) | SA100 | SC100 |
| 1-1/8" (29mm) | SA118 | SC118 |
| 1-1/4" (32mm) | (standard) | SC114 |
| 1-3/8" (35mm) | SA138 | SC138 |
| 1-1/2" (38mm) | SA112 | SC112 |
| 1-3/4" (44mm) | SA134 | SC134 |
| 2" (51mm) | SA200 | SC200 |
| 2-1/4" (57mm) | SA214 | SC214 |
| 2-1/2" (64mm) | SA212 | SC212 |
| 2-3/4" (70mm) | SA234 | SC234 |
| 3" (76mm) | SA300 | SC300 |
Door Thickness
| Description | Specify |
|---|---|
| 1-3/4" (44mm) - 2" (51mm) | (standard) |
| 2" (51mm) - 2-1/4" (57mm) | D214 |
Features
ED5000N IN100 Exit Devices
ED5000 Exit Device With 9100 Series Trim
Features
EcoFlex® Technology Reduces energy consumption by up to 95%
Handing
Device is handed but easily field reversible. Lever trim is handed.
Bar Length
Easily field cut to size.
Standard: 36" (914mm) bar fits 30"- 36"
(762mm-914mm) door.
Optional: 24" (610mm) bar fits 24"
(610mm) door; specify W024. Optional: 48" (1219mm) bar fits 36"-48"
(914mm-1219mm) door; specify W048.
Door Thickness
1-3/4" (44mm) standard.
Optional: 2" (51mm); specify D200. Optional: 2-1/4" (57mm); specify D214.
Stile
Minimum width 4-1/2" (114mm).
Latchbolt
Rim: 3/4" (19mm) throw stainless steel pullman-type latchbolt with stainless steel auxiliary deadlocking latch standard SecureBolt: 3/4" (19mm) projection x 1" wide deadbolt- style latchbolt with positive deadlocking by auxiliary bolt
Mortise: 2-piece mechanical 3/4" throw deadlocking stainless steel latchbolt
Monitoring
Request to Exit (Non-Handed) Door Position Switch (Supplied and mounted above the lock. Connects directly into the lock's electronics.)
Materials
Heavy-duty cold-forged steel chassis; heavy-gauge steel mechanisms, electroplated for corrosion resistance; finished parts are brass, bronze or stainless steel; stainless steel springs; nylon bearings.
Projection
3-1/4" (83mm) active, 2-3/4" (70mm) dogged.
Dogging
Standard on panic devices; single-point 1/4 turn hex key dogging. Optional: less dogging, specify M51. Optional: cylinder dogging, specify M52. Mechanical dogging not available on fire-rated devices.
Fasteners
Standard on panic devices: machine screws and wood door fasteners.
Standard on fire-rated devices: sex nuts and bolts.
Optional on panic devices: sex nuts and bolts for use on wood, composite, or unreinforced metal doors; specify M54. Optional wood screws for use on approved fire-rated solid wood or wood core doors. Specify M64.
Strike
Optional strikes available; see Options and Accessories, page 17.
Cylinders
Cylinder not included unless specified. See Quick Codes, page 17.
Shim Kit
Optional for mounting device over raised vision light molding; specify M58.
Warranty
Five-year limited.
Certification/Compliance
ANSI/BHMA
Meets A156.3, Type 2, Grade 1. UL /cUL
All devices listed for safety as panic hardware; devices comply with UL 305 standards for panic hardware. Threehour fire-rated devices listed as fire exit hardware for A label and lesser class 8' x 8' double doors; UL symbol on active case cover indicates listing.
Any retrofit or other field modification to a fire- rated opening can potentially impact the fire rating of the opening, and Corbin Russwin, Inc. makes no representations or warranties concerning what such impact may be in any specific situation. When retrofitting any portion of an existing fire rated opening, or specifying and installing a new fire-rated opening, please consult with a code specialist or local code official (Authority Having Jurisdiction) to ensure compliance with all applicable codes and ratings.
California State Reference Code This product has been approved by the California State Fire Marshal pursuant to section 13144.1 of the California Health and Safety Code.
NFPA
All exit devices comply with NFPA 101 Life Safety Code. All fire-rated devices comply with NFPA 80 Fire Doors and Windows. ADA Lever trims and pulls comply with Americans with Disabilities Act.
ED5000N IN100 Exit Devices
Build your order string:
Exit Device Only
| Series/Function | Finish | Handing | Technology Code | Misc. Options | Door Width |
| ED5634LN | 630 | LHR | IN100 | M51-M54 | W048 |
Trim Only
| Lever/Function | Finish | Handing | Technology Code | Reader Code | Reader Modifier | Cylinder | Door Thickness |
|---|---|---|---|---|---|---|---|
| N9M134 | 630 | LHR | IN100 | BIPS | B | 6P | D214 |
Exit Device with Trim
|
Series
Function |
Lever
Function |
Finish | Handing |
Technology
Code |
Reader Code |
Reader
Modifier |
Cylinder |
Door
Thickness |
Door Width |
|---|---|---|---|---|---|---|---|---|---|
| ED5634LN | N9M134 | 630 | LHR | IN100 | BIPS | B | 6P | D214 | W048 |
| Series/Function | Type | Function Description |
|---|---|---|
|
ED5200(A)N &
ED5200S(A)N x 9133 |
Rim Exit Device
No Key Override |
• Latch retracted by inside push pad at all times
• Outside lever locked (freewheeling) except when in passage mode or valid user code entered |
|
ED5200(A)N &
ED5200S(A)N x 9134 |
Rim Exit Device
With Key Override |
• Latch retracted by inside push pad at all times
• Outside lever locked (freewheeling) except when in passage mode or valid user code entered • Outside cylinder override allows lever to retract latch |
|
ED5633(A)LN
x 9M133 |
Mortise Exit
Device No Key Override |
• Latch retracted by inside push pad at all times
• Outside lever rigid except when in passage mode or valid user code entered |
|
ED5634(A)LN
x 9M134 |
Mortise Exit
Device With Key Override |
• Latch retracted by inside push pad at all times
• Outside lever rigid except when in passage mode or valid user code entered • Outside cylinder override retracts latch |
| Reader Modifier | Description |
|---|---|
| B | Black reader, black trim |
| MB | Black reader, metal trim |
Note: Metal trim for the reader is supplied in the finish specified in the order string. It is not available in stainless steel (629/630/630C) but will be plated to match.
ED5000N IN100 Exit Devices
Finishes
| Description | Specify |
| Polished Brass, Clear Coated | 605 |
| Satin Brass, Clear Coated | 606 |
|
Polished Bronze, Clear
Coated |
611 |
| Satin Bronze, Clear Coated | 612 |
|
Dark Oxidized Satin Bronze,
Oil Rubbed |
613 |
|
Dark Oxidized Satin Bronze -
Equivalent |
613E |
| Description | Specify |
| Polished Nickel | 618 |
| Satin Nickel | 619 |
| Polished Chrome | 625 |
| Satin Chrome | 626 |
|
Satin Chrome with
MicroShield® |
626C |
| Bright Stainless Steel | 629* |
| Satin Stainless Steel | 630* |
| Description | Specify |
|
Satin Stainless Steel with
MicroShield® |
630C* |
|
Black Oxidized Bronze,
Oil Rubbed |
722 |
| Black Suede Powder | BSP |
| White Suede Powder | WSP |
* Metal escutcheon trim (MB and MW) plated to match
Levers
The levers shown here are some of our most popular styles from the Muséo Collection. To see the complete range of levers, refer to pages 30-32.
Premium Levers
1. Lever returns within 1/2" (13 mm) of door face.
Quick Codes
ED5000N IN100 Exit Devices
| Cylinders and Keying | Cylinders and Keying (cont.) | |
|---|---|---|
| Description | Specify | |
| Conventional 6-pin | (standard) | Visual Key Control |
| Conventional 7-pin | 7P | No Keying Data Stamped - |
| Less Cylinder(s) | LC | |
| LFIC | ||
| LFIC 6-pin | C6 | Cylinders and Keys (not for |
| LFIC 6-pin with Temporary | ||
| Construction Core (Red) | CT6R | Cylinders Only (not for HS, |
| LFIC 6-pin with Temporary | ||
| Construction Core (Blue) | CT6B | Concealed Key Control (CKC) |
| LFIC 6-pin with Temporary | CKC Cylinders with | |
| Construction Core (Green) | CT6G | |
| LFIC 6-pin Less Core | CL6 | CKC Cylinders Only (not for |
| LFIC 7-pin | C7 | |
| LFIC 7-pin with Temporary | ||
| Construction Core (Red) | CT7R | |
| LFIC 7-pin with Temporary | Finish | |
| Construction Core (Blue) | CT7B | |
| LFIC 7-pin with Temporary | ||
| Construction Core (Green) | CT7G | |
| LFIC 7-pin Less Core | CL7 | Polished Bronze, Clear |
| SFIC | Coated | |
| SFIC 6-pin with Less Core | CLS6 | |
|
SFIC 6-pin with SFIC
disposable temporary core |
CT6SD |
Dark Oxidized Satin Bronze,
Oil Rubbed |
| SFIC 7-pin with Less Core | CLS7 | |
| SFIC 7-pin with SFIC |
Dark Oxidized Satin Bronze -
Equivalent |
|
| disposable temporary core | CT7SD | |
| Security | ||
| Security | HS | |
| Security IC | CHS | |
| Access 3® | ||
| Access 3® Patented | AP | |
| Access 3® Security | AS | Satin Stainless Steel with |
| Access 3® High Security | AHS | |
| Access 3® Patented IC | ACP | Black Oxidized Bronze, |
| Access 3® Security IC | ACS | Oil Rubbed |
| Access 3® High Security IC | ACHS | |
| Pyramid | ||
| Pyramid Fixed Core | PHS | |
| Pyramid IC | PCHS | *Metal escutcheon trim (MB) plated to match |
| Pyramid IC Less Core | CLP | |
| Pyramid with Temporary | Strikes | |
| Construction Core | CTP | |
| Pyramid Security | PS | |
| Pyramid Security IC | PCS | |
| Pyramid Disposable Core | CTPD | Mortise ANSI strike for pairs |
| Keying and Keys | of doors with astragal | |
| 6-pin Disposable Core | CT6D | Open back strike for 1-3/4" |
| doors | ||
| 7-pin Disposable Core | CT7D | Open back strike for 2-1/4" |
| Keyed Random (Standard) | KR | doors |
| Construction Master Keyed | CMK | |
| (not available for Pyramid) | ||
| 2 Keys per Cylinder | (standard) | |
| More than 2 Keys |
KY#
(e.g., KY6) |
|
| Description | Specify |
| Visual Key Control | |
|
No Keying Data Stamped -
on Key or Cylinder |
VKC0 |
| Keys Only | VKC1 |
|
Cylinders and Keys (not for
HS, CHS, PHS or PCHS) |
VKC2 |
|
Cylinders Only (not for HS,
CHS, PHS or PCHS) |
VKC3 |
| Concealed Key Control (CKC) | |
|
CKC Cylinders with
VKC Keys |
CKC2 |
|
CKC Cylinders Only (not for
PHS, PCHS) |
CKC3 |
Finish
| Description | Specify |
|---|---|
| Polished Brass, Clear Coated | 605 |
| Satin Brass, Clear Coated | 606 |
|
Polished Bronze, Clear
Coated |
611 |
| Satin Bronze, Clear Coated | 612 |
|
Dark Oxidized Satin Bronze,
Oil Rubbed |
613 |
|
Dark Oxidized Satin Bronze -
Equivalent |
613E |
| Polished Nickel | 618 |
| Satin Nickel | 619 |
| Polished Chrome | 625 |
| Satin Stainless Steel | 629* |
| Bright Stainless Steel | 630* |
|
Satin Stainless Steel with
MicroShield® |
630C* |
|
Black Oxidized Bronze,
Oil Rubbed |
722 |
| Black Suede Powder | BSP |
| White Suede Powder | WSP |
* Metal escutcheon trim (MB) plated to match
Strikes
| Description | Specify |
|---|---|
| Rim strike S02 | S02 |
|
Mortise ANSI strike for pairs
of doors with astragal |
SS078 |
|
Open back strike for 1-3/4"
doors |
SB134 |
|
Open back strike for 2-1/4"
doors |
SB214 |
Door Thickness
| Door Thickness | Specify |
|---|---|
| 1-3/4" (44mm) | (standard) |
| 2" (51mm) | D200 |
| 2-1/4" (57mm) | D214 |
Door Width
| Door Width | Specify |
| 24" (610mm) | W024 |
| 36" (914mm) | (standard) |
| 48" (1219mm) | W048 |
Handing
| Hand | Specify |
|---|---|
| Right Hand Reverse | RHR |
| Left Hand Reverse | LHR |
Note: Arrow indicates secure side of door.
Miscellaneous Options
| Description | Specify |
|---|---|
| Torx® head screws | M04 |
| Windstorm | M107 |
| ANSI wrought strike box | M17 |
| Knurling outside and inside1 | M202 |
| Knurling outside only1 | M212 |
| Knurling inside only1 | M222 |
| Abrasive coat outside and inside1 | M23 |
| Abrasive coat inside only1 | M24 |
| Abrasive coat outside only1 | M25 |
| Less dogging | M51 |
| Cylinder dogging | M52 |
| Sex nuts and bolts (SNBs) | M54 |
| Shim kit (for vision light) | M58 |
|
Wood screws for use on fire-rated
solid wood or wood core doors |
M64 |
- 1 Not available with Vineyard or Museo levers.
- 2 All levers provided in a powder coat finish will be supplied with an abrasive coating
Features
PED5000 IN100 Exit Devices
PED5000 Exit Device With 9100PT Series Trim
Features
EcoFlex® Technology
reduces energy consumption, which lowers operation cost and reduces the number of power supplies required.
Handing
Device is handed but easily field reversible. Lever trim is handed.
Bar Length
Easily field cut to size.
W032: 24" to 32" (61 cm to 81 cm) W036: 32.5" to 36" (84 cm to 91 cm) W042: 36.5" to 42" (94 cm to 107 cm) W048: 42.5" to 48" (110 cm to 122 cm)
Note: Must specify rail length on order string to receive factory cut rail. (ex: W026 - 26" wide door) Availalbe in 1/8" increments.
Door Thickness
1-3/4" (44mm) standard. Specify D134. Optional: 2" (51mm); specify D200. Optional: 2-1/4" (57mm); specify D214.
Stile
Minimum width 4-1/2" (114mm).
Latchbolt
Rim: 3/4" (19mm) throw stainless steel pullman-type latchbolt with stainless steel auxiliary deadlocking latch standard Mortise: 2-piece mechanical 3/4" throw deadlocking stainless steel latchbolt
Top: 3/4" (19mm) throw, stainless steel
pullman-type with automatic deadlatching. Bottom: 5/8" (16mm) throw deadbolt, held retracted during door swing
Monitoring
Request-to-Exit (Non-Handed)
Door Position Switch (DPS)* (Supplied and mounted above the lock. Connects directly into the lock's electronics.)
Materials
Heavy-duty cold-forged steel chassis; heavy-gauge steel mechanisms, electroplated for corrosion resistance; finished parts are brass, bronze or stainless steel; stainless steel springs; nylon bearings.
Projection
3.10" (79mm) active, 2.18" (55mm) dogged.
Dogging
Standard on panic devices; single-point 1/4 turn hex key dogging. Optional: less dogging, specify M51. Optional: cylinder dogging, specify M52. Mechanical dogging not available on fire-rated devices.
Fasteners
Standard on panic devices: machine screws and wood door fasteners.
Standard on fire-rated devices: sex nuts and bolts.
Optional on panic devices: sex nuts and bolts for use on wood, composite, or unreinforced metal doors; specify M54.
Strike
Optional strikes available; see Options and Accessories, page 22.
Cylinders
Cylinder not included unless specified. See Quick Codes, page 22.
Shim Kit
Reference PED5000 catalog for optional shims.
Warranty
Ten-year limited mechanical 2-year limited electrical
Certification/Compliance
ANSI
Meets A156.3, Type 2, Grade 1. UL /cUL
All devices listed for safety as panic hardware; devices comply with UL 305 standards for panic hardware. Threehour fire-rated devices listed as fire exit hardware for A label and lesser class 8' x 8' double doors; UL symbol on active case cover indicates listing.
Any retrofit or other field modification to a fire- rated opening can potentially impact the fire rating of the opening, and Corbin Russwin, Inc. makes no representations or warranties concerning what such impact may be in any specific situation. When retrofitting any portion of an existing fire rated opening, or specifying and installing a new fire-rated opening, please consult with a code specialist or local code official (Authority Having Jurisdiction) to ensure compliance with all applicable codes and ratings.
California State Reference Code This product has been approved by the California State Fire Marshal pursuant to section 13144.1 of the California Health and Safety Code.
NFPA
All exit devices comply with NFPA 101 Life Safety Code. All fire-rated devices comply with NFPA 80 Fire Doors and Windows. ADA Lever trims and pulls comply with Americans with Disabilities Act.
*For Double-door applications the DPS is installed in-between the active and inactive leaves. The DPS monitors both doors, but the REX only monitors the active leaf. To prevent door-force or door-held alarms, the alarms must be disabled.
PED5000 IN100 Exit Devices
Build your order string:
Exit Device with Trim
|
Series
Function |
Lever
Function |
Finish | Handing |
Technology
Code |
Reader Code |
Reader
Modifier |
Cylinder |
Door
Thickness |
Door Width |
|---|---|---|---|---|---|---|---|---|---|
| PED5634 | N9M134PT | 630 | LHR | IN100 | BIPS | B | 6P | D214 | W048 |
Rim Surface Vertical Rod Ease of Access (EA-Option)
Mortise Concealed Vertical Rod Ease of Access (EA- Option)
| Function | Type | Function Description | Trim |
|---|---|---|---|
| PED5233 (A) |
PED5233 - IN100 Series Rim Exit Device, No Key Override
PED5233A - IN100 Series Rim Exit Device, Fire-Rated, No Key Override |
• Latch retracted by inside push pad at all times
• Outside lever locked (rigid) except when in passage mode or valid user code entered • No Key Override |
8133PT/9133PT |
| PED5234 (A) |
PED5234 - IN100 Series Rim Exit Device, With Key
Override PED5234A - IN100 Series Rim Exit Device, Fire-Rated, With Key Override |
• Latch retracted by inside push pad at all times
• Outside lever locked (rigid) except when in passage mode or valid user code entered • Outside cylinder override allows lever to retract latch • With Key Override |
8134PT/9134PT |
| PED5433 (A) |
PED5433 - IN100 Series SVR Exit Device, No Key Override
PED5433A - IN100 Series SVR Exit Device, Fire-Rated, No Key Override |
• Latch retracted by inside push pad at all times
• Outside lever locked (rigid) except when in passage mode or valid user code entered • No Key Override. EA- Option Required. |
8M133PT/9M133PT |
| PED5633 (A) |
PED5633 - IN100 Series Mortise Exit Device, No Key
Override PED5233A - IN100 Series Mortise Exit Device, Fire-Rated, No Key Override |
• Latch retracted by inside push pad at all times
• Outside lever rigid except when in passage mode or valid user code entered • No Key Override |
8M133PT/9M133PT |
| PED5634 (A) |
PED5633 - IN100 Series Mortise Exit Device, No Key
Override PED5233A - IN100 Series Mortise Exit Device, Fire-Rated, No Key Override |
• Latch retracted by inside push pad at all times
• Outside lever rigid except when in passage mode or valid user code entered • With Key Override |
8M134PT/9M134PT |
| PED5833 (A) |
PED5833 - IN100 Series CVR Exit Device, No Key Override
PED5833A - IN100 Series CVR Exit Device, Fire-Rated, No Key Override |
• Latch retracted by inside push pad at all times
• Outside lever rigid except when in passage mode or valid user code entered • No Key Override. EA- Option Required. |
8CV133PT/9CV133PT |
PED5000 IN100 Exit Devices
| Reader Modifier | Description |
|---|---|
| B | Black reader, black trim |
| MB | Black reader, metal trim |
Note: Metal trim for the reader is supplied in the finish specified in the order string. It is not available in stainless steel (629/630/630C) but will be plated to match.
| Reader Code | Credentials |
|---|---|
| BIPS |
HID Prox®, iCLASS®, iCLASS SE®,iCLASS® Seos®, SIO on
MIFARE® Classic, SIO on MIFARE DESFire® EV1 MIFARE Classic, MIFARE DESFire EV1, HID Mobile Access, Apple Wallet, Google Pay |
PED5000 IN100 Exit Devices
Trim Finishes
| Description | Specify |
| Polished Brass, Clear Coated | 605 |
| Satin Brass, Clear Coated | 606 |
|
Polished Bronze, Clear
Coated |
611 |
| Satin Bronze, Clear Coated | 612 |
|
Dark Oxidized Satin Bronze,
Oil Rubbed |
613 |
|
Dark Oxidized Satin Bronze -
Equivalent |
613E |
|
Oxidized satin, bronze, clear
coated |
613L |
| Description | Specify |
| Polished Nickel | 618 |
| Satin Nickel | 619 |
|
Satin Nickel with
Microshield® |
619C |
| Polished Chrome | 625 |
| Satin Chrome | 626 |
|
Satin Chrome with
MicroShield® |
626C |
| Bright Stainless Steel | 629* |
| Satin Stainless Steel | 630* |
| Description | Specify |
|---|---|
|
Satin Stainless Steel with
MicroShield® |
630C* |
| Black Suede Powder | BSP |
| White Suede Powder | WSP |
* Metal escutcheon trim (MB) plated to match
Levers
The levers shown here are some of our most popular styles from the Muséo Collection. To see the complete range of levers, refer to pages 30-33.
Premium Levers
1. Lever returns within 1/2" (13 mm) of door face.
Quick Codes
PED5000 IN100 Exit Devices
Cylinders and Keying
| Cylinders and Keying | ||||
|---|---|---|---|---|
| Description | Specify | |||
| Conventional 6-pin | (standard) | |||
| Conventional 7-pin | 7P | |||
| Less Cylinder(s) | LC | |||
| LFIC | ||||
| LFIC 6-pin | C6 | |||
|
LFIC 6-pin with Temporary
Construction Core (Red) |
CT6R | |||
|
LFIC 6-pin with Temporary
Construction Core (Blue) |
CT6B | |||
|
LFIC 6-pin with Temporary
Construction Core (Green) |
CT6G | |||
| LFIC 6-pin Less Core | CL6 | |||
| LFIC 7-pin | C7 | |||
|
LFIC 7-pin with Temporary
Construction Core (Red) |
CT7R | |||
|
LFIC 7-pin with Temporary
Construction Core (Blue) |
CT7B | |||
|
LFIC 7-pin with Temporary
Construction Core (Green) |
CT7G | |||
| LFIC 7-pin Less Core | CL7 | |||
| SFIC | ||||
| SFIC 6-pin with Less Core | CLS6 | |||
|
SFIC 6-pin with SFIC disposable
temporary core |
CT6SD | |||
| SFIC 7-pin with Less Core | CLS7 | |||
|
SFIC 7-pin with SFIC disposable
temporary core |
CT7SD | |||
| Security | ||||
| Security | HS | |||
| Security IC | CHS | |||
| Access 3® | ||||
| Access 3® Patented | AP | |||
| Access 3® Security | AS | |||
| Access 3® High Security | AHS | |||
| Access 3® Patented IC | ACP | |||
| Access 3® Security IC | ACS | |||
| Access 3® High Security IC | ACHS | |||
| Pyramid | ||||
| Pyramid Fixed Core | PHS | |||
| Pyramid IC | PCHS | |||
|
Pyramid IC Less Core
Pyramid with Temporary |
CLP
CTP |
|||
| Construction Core | ||||
| Pyramid Security | PS | |||
| Pyramid Security IC | PCS | |||
|
Pyramid Disposable Core
UL Housing |
CTPD | |||
| UL LFIC 6-pin housing less core | CL6AH | |||
| UL LFIC 6-pin housing w/ | CTAHD | |||
|
disposable core
UL LFIC 6-pin w/ temporary |
CT6AHR | |||
|
construction core (red)
UL LFIC 6-pin w/ temporary construction core (blue) |
CT6AHB | |||
|
UL LFIC 6-pin w/ temporary
construction core (green) |
CT6AHG | |||
Cylinders and Keying (Cont.)
| Description | Specify | |||
|---|---|---|---|---|
| Keying and Keys | ||||
| 6-pin Disposable Core | CT6D | |||
| 7-pin Disposable Core | CT7D | |||
| Keyed Random (Standard) | KR | |||
|
Construction Master Keyed
(not available for Pyramid) |
CMK | |||
| 2 Keys per Cylinder | (standard) | |||
| More than 2 Keys |
KY#
(e.g., KY6) |
|||
| Visual Key Control | ||||
|
No Keying Data Stamped on
Key or Cylinder |
VKC0 | |||
| Keys Only | VKC1 | |||
|
Cylinders and Keys
(not for HS, CHS, PHS or PCHS) |
VKC2 | |||
|
Cylinders Only (not for HS,
CHS, PHS or PCHS) |
VKC3 | |||
| Concealed Key Control (CKC) | ||||
| CKC Cylinders with VKC Keys | CKC2 | |||
|
CKC Cylinders Only (not for
PHS, PCHS) |
CKC3 | |||
Exit Device Finishes
| Description | Specify |
|---|---|
| Polished Brass, Clear Coated | 605 |
| Satin Brass, Clear Coated | 606 |
| Polished Bronze, Clear Coated | 611 |
| Satin Bronze, Clear Coated | 612 |
|
Dark Oxidized Satin Bronze, Oil
Rubbed |
613 |
|
Dark Oxidized Satin Bronze -
Equivalent |
613E |
|
Oxidized Satin, Bronze, Clear
Coated |
613L |
| Satin Stainless Steel | 629* |
| Bright Stainless Steel | 630* |
|
Satin Stainless Steel with Micro
Shield® |
630C* |
| Black Suede Powder Coat | BSP |
| White Suede Powder Coat | WSP |
Note; Mixed finishes available please see PED5000 Series Catalog
Strikes
| Description | Specify |
|---|---|
| Half mortised strike | 613 |
| Mortised strike | 642 |
| Door pairs w/o mullion | 644 |
| Surface strike | 649 |
| Blade Stop Strike | 657 |
| Mullion Strike | 658 |
| Curved Lip Strike | C908 |
| Open Back Strike | 815 |
| Flat lip strike | 908 |
Door Thickness
| Door Thickness | Specify |
|---|---|
| 1-3/4" (44mm) | D134 (standard) |
| 2" (51mm) | D200 |
| 2-1/4" (57mm) | D214 |
| Door Width | |||||
|---|---|---|---|---|---|
| Inches | Fractions | ||||
| Code | Measurement | Code | Measurement | ||
| W024 | 24" | 1 | 1/8" | ||
| W025 | 25" | 2 | 1/4" | ||
| W026 | 26" | 3 | 3/8" | ||
| W027 | 27" | 4 | 1/2" | ||
| W028 | 28" | 5 | 5/8" | ||
| W029 | 29" | 6 | 3/4" | ||
| W030 | 30" | 7 | 7/8" | ||
| W031 | 31" | ||||
| W032 | 32" | ||||
| W033 | 33" | ||||
| W034 | 34" | ||||
| W035 | 35" | ||||
| W036 | 36" | ||||
| W037 | 37" | ||||
| W038 | 38" | ||||
| W039 | 39" | ||||
| W040 | 40" | ||||
| W041 | 41" | ||||
| W042 | 42" | ||||
| W043 | 43" | ||||
| W044 | 44" | ||||
| W045 | 45" | ||||
| W046 | 46" | ||||
| W047 | 47" | ||||
| W048 | 48" | ||||
Note; Reference PED5000 catalog for door width example.
Handing
| Hand | Specify |
|---|---|
| Right Hand Reverse | RHR |
| Left Hand Reverse | LHR |
Note: Arrow ( ) indicates secure side of door.
Miscellaneous Options
| Description | Specify |
|---|---|
| Security Fasteners | M04 |
| Milled Outside Lever | M211 |
|
Abrasive Strip on Rail & Abrasive
Coating on Outside Lever |
M23 |
| Abrasive Coating on Outside Lever | M24 |
| Abrasive Strip on Rail | M25 |
| Passage Dogging Indicator | M48 |
| Less dogging | M51 |
| Cylinder dogging | M52 |
| Thrubolts | M54 |
| Windstorm | M107 |
|
Ease of Access (Required for PED5400
and PED5800) |
EA |
1 Not available with Muséo levers.
* Metal escutcheon trim (MB) plated to match
Features
Von Duprin 98/99 Series Rim Exit Devices
Mechanical Features
cylinder (not included).
Certified ANSI/BHMA A156.3 Grade 1. Key override compatible with a variety of rim cylinders. Trim prepped for
Requires Von Duprin RX switch assembly #050251-00 (supplied by others).
Provides complete coverage of door prep for Von Duprin 996 trim; call 800-810-WIRE for information on door prep coverage for other trims. Available with Muséo Line, Vineyard Collection and all standard levers.
UL/ULC Listed for fire doors* Matching dummy trim available for double doors.
IN Series Exit Device Functions
Lever outside rigid except when in passage mode or valid user code entered.
Always allows free egress.
Request-to-Exit (REX): monitors rail position Low battery, tamper signaling standard.
Door position switch (DPS, part #820F609) supplied.
* Any retrofit or other field modification to a fire rated opening can potentially impact the fire rating of the opening, and Sargent Manufacturing Company makes no representations or warranties concerning what such impact may be in any specific situation. When retrofitting any portion of an existing fire rated opening, or specifying and installing a new fire-rated opening, please consult with a code specialist or local code official (Authority Having Jurisdiction) to ensure compliance with all applicable codes and ratings.
Select from the following options to order IN Series multi-point locks:
| Technology | Function | ||
|---|---|---|---|
| IN100 | Aperio wireless | 231 | Rim exit device, key override |
| Reader Modifier | Description |
|---|---|
| B | Black reader, black trim |
| MB | Black reader, metal trim |
Note: Metal trim for the reader is supplied in the finish specified in the order string. It is not available in stainless steel (629/630/630C) but will be plated to match.
Escutcheon
| CREK1 | Trim for Von Duprin Retrofit Fit |
|---|
Lever
The levers shown here are some of our most popular styles from the Muséo Line. To see the complete range of available levers, refer to pages 30-31.
Premium Levers
1. Lever returns within 1/2" (13 mm) of door face.
Von Duprin 98/99 Series Rim Exit Devices
Finishes
| Description | Specify |
| Polished Brass, Clear Coated | 605 |
| Satin Brass, Clear Coated | 606 |
|
Polished Bronze, Clear
Coated |
611 |
| Satin Bronze, Clear Coated | 612 |
|
Dark Oxidized Satin Bronze,
Oil Rubbed |
613 |
|
Dark Oxidized Satin Bronze -
Equivalent |
613E |
| Description | Specify |
| Polished Nickel | 618 |
| Satin Nickel | 619 |
| Polished Chrome | 625 |
| Satin Chrome | 626 |
|
Satin Chrome with
MicroShield® |
626C |
| Bright Stainless Steel | 629* |
| Satin Stainless Steel | 630* |
| Description | Specify |
|
Satin Stainless Steel with
MicroShield® |
630C* |
|
Black Oxidized Bronze,
Oil Rubbed |
722 |
| Black Suede Powder | BSP |
| White Suede Powder | WSP |
* Metal escutcheon trim (MB) plated to match
Handing
| Hand | Specify |
|---|---|
| Right Hand Reverse | RHR |
| Left Hand Reverse | LHR |
Note: Arrow indicates secure side of door.
Build your order string:
| Required Options | Other Options | |||||||
|---|---|---|---|---|---|---|---|---|
| Function | Trim | Finish | Handing | Technology Code | Reader Code | Escutcheon | Reader Modifier |
Cylinder, Strike, Door
Thickness |
| 231 | 102 | 605 | RHR | IN100 | BIPS | CREK1 | B | — |
For finish, additional cylinder, and/or mechanical options, please refer to page 13.
- 1. Lever returns within 1/2" (13 mm) of door face.
- 2. Gramercy levers are customized. See page 31 for ordering information
Features
BL6600/FE6600/MP6600 Series Multi-Point Locks
Features
Handing
Handed; quick reversibility. The lockset can be re-handed without disassembling the lock body.
Door Thickness
1-3/4" thick door only; fully integrated – 6600 is part of a complete ASSA ABLOY windstorm solution
Backset
2-3/4" (70mm).
Lockcase
Heavy-gauge chrome plated steel, 5-7/8" (149mm) x 4" (102mm) x 15/16" (24mm).
Front
Heavy-gauge steel, 8" (203mm) x 1-1/4" (32mm) x 3/32" (2mm). Accommodates non-beveled and beveled doors 1/8" (3mm) in 2" (51mm).
Armored Front
Wrought brass, bronze or stainless steel attached by machine screws to lockcase front.
Device Type
Available with both BL (Blast) and FE (FEMA) prefixes
Top Bolt
Adjustable stainless steel 3/4" square bolt with 11/16" engagement; 5/16" steel reinforcement plate
Installation
Concealed vertical assembly (rods, latches and cassette) pre-installed in door
Bottom Bolt
Adjustable stainless steel 3/4" square bolt with 5/8" engagement; 1/4" steel reinforcement plate
Center Bolts
Latchbolt is stainless steel with 3/4" projection. One piece, anti-friction reversible catch. Deadbolt is one piece hardened stainless steel with 1" projection Lock Front
1/8" steel mortise front reinforced with 13/64" thick lock edge stiffener
Center Bolt Strike
1/4" thick stainless steel
Backset
2-3/4" standard
Door Thickness
1-3/4" standard
Door Height
7'0" - 8'0"
Maximum Opening
Single door 4'0" x 8'0" and double doors 8'0" x 8'0"
Strike
Wrought brass, bronze or stainless steel ANSI straight lip standard, 4-7/8" (124mm) x 1-1/4" (32mm) x 1-1/8" (29mm) lip to center.
Environmental Specifications
Operating Temperature:
-13°F (-25°C) to 151°F (66°C)
Operating humidity:
Operates in condensing environments
*always refer to the installation instructions for correct procedure when installing in condensing environments
Monitoring
-
Deadbolt
- Latch bolt
- DPS integrated into lock body
- Request to exit
Warranty
7-year limited mechanical. 2-year limited electrical.
Shipping Weight
Approx. 11 lbs.
Certification/Compliance
ANSI/BHMA
Meets A156.37, Operational Grade 1 and Security Grade 1 requirements. Meets A117.1 Accessibility Code. Meets A156.25 requirements.
UL /ULC-UL10C Positive Pressure
All locks listed for A label and lesser class doors, 4' (122cm) x 8' (305cm) single or 8' (244cm) x 8' (305cm) pair. Letter F and UL symbol on armored front indicate listing.
Windstorm Certification
Windstorm certification information is listed in the Corbin Russwin 6600 Series catalog.
Any retrofit or other field modification to a fire rated opening can potentially impact the fire rating of the opening, and Corbin Russwin, Inc. makes no representations or warranties concerning what such impact may be in any specific situation. When retrofitting any portion of an existing fire rated opening, or specifying and installing a new fire-rated opening, please consult with a code specialist or local code official (Authority Having Jurisdiction) to ensure compliance with all applicable codes and ratings.
BL6600/FE6600/MP6600 Series Multi-Point Locks
Build your order string:
| Required Options | |||||||
|---|---|---|---|---|---|---|---|
| Function | Trim | Finish | Handing |
Technology
Code |
Reader Code | Reader Modifier | Other Options |
| 66135 | IN100 | BIPS | |||||
For finish, additional cylinder, and/or mechanical options, please refer to page 13.
| Series/Function | Type | Function Description |
|---|---|---|
|
BL/FE/MP66135
No Key Override With Deadbolt1 |
Entry |
• Deadlocking latch
• Latch and deadbolt retracted by inside lever at all times • Outside lever rigid except when in "passage" mode or valid user code entered |
|
BL/FE/MP66136
Key Override With Deadbolt |
Entry
With Deadbolt |
• Key outside retracts deadbolt.
Key outside also retracts latch and unlocks outside when trim is locked electronically • Top and bottom rods retracted by lever • Deadbolt projected and retracted by thumbturn or key |
| Reader Modifier | Description |
|---|---|
| B | Black reader, black trim |
| MB | Black reader, metal trim |
Note: Metal trim for the reader is supplied in the finish specified in the order string. It is not available in stainless steel (629/630/630C) but will be plated to match.
Finishes
| Description | Specify |
|---|---|
| Polished Brass, Clear Coated | 605 |
| Satin Brass, Clear Coated | 606 |
|
Polished Bronze, Clear
Coated |
611 |
| Satin Bronze, Clear Coated | 612 |
|
Dark Oxidized Satin Bronze,
Oil Rubbed |
613 |
|
Dark Oxidized Satin Bronze -
Equivalent |
613E |
| Description | Specify |
|---|---|
| Polished Nickel | 618 |
| Satin Nickel | 619 |
| Polished Chrome | 625 |
| Satin Chrome | 626 |
|
Satin Chrome
with MicroShield® |
626C |
|
Black Oxidized Bronze,
Oil Rubbed |
722 |
| Description | Specify |
| Satin Stainless Steel | 629* |
| Bright Stainless Steel | 630* |
|
Satin Stainless Steel with
MicroShield® |
630C* |
| Black Suede Powder Coat | BSP |
| White Suede Powder Coat | WSP |
* Metal escutcheon trim (MB and MW) plated to match
BL6600/FE6600/MP6600 Series Multi-Point Locks
Roses
The roses shown are some of our most popular styles. To see the complete list of available roses, refer to pages 33.
T X E2 E3 E41
Levers
The levers shown here are some of our most popular styles from the Muséo Collection. To see the complete range of levers, refer to pages 30-31.
1242 1252 1232
Premium Levers
- 1 Rose design suites with IN100 reader.
- 2 Lever returns within 1/2" (13 mm) of door face.
Miscellaneous Options
| Description | Specify |
|---|---|
| Torx® head screws | M04 |
| ANSI wrought strike box | M17 |
| Knurling outside and inside1 | M202 |
| Knurling outside only1 | M212 |
| Knurling inside only1 | M222 |
|
Abrasive coat outside and
inside1 |
M23 |
| Abrasive coat inside only1 | M24 |
| Abrasive coat outside only1 | M25 |
- 1 Not available with Vineyard or Museo levers.
- 2 All levers provided in a powder coat finish will be supplied with an abrasive coating
Thumbturns
| Description | Specify |
|---|---|
| Decorative | MT1 |
| Decorative Square | MT2 |
| Decorative Cylinder | MT2 |
Handing
| Hand | Specify |
| Right Hand | RH |
| Left Hand | LH |
| Right Hand Reverse | RHR |
| Left Hand Reverse | LHR |
Note: Arrow indicates secure side of door.
Alternate Power Options
Aperio® Configuration Kits
Alternate Power Options
Hard Power Option (M35)
The Hard Power option (Quick Code M35) is recommended for high traffic doors or openings that require online behavior. Corbin Russwin offers a range of power supplies suitable for this application.
Operation
Power supplies are designed to provide reliable filtered and regulated power for long life to a variety of electrified hardware components. All modular power supplies are designed to meet UL 1481 Standards.
Features
- Fire panel emergency release input
- PC Board mounted system LED indicator
- Regulated and filtered with input and output protection
- Fused line voltage input with one, four, or eight DC outputs (depending on model)
- Battery charging is provided from a separate output terminal
Electrical Specifications
- Inputs: 115VAC @600mA
- Outputs: 12/24 VDC (Current based on model), Filtered and regulated output
Listings
- UL & cUL listed 1012 General Purpose Power Supply
- Fire & Burglar Alarm Power Supply Unit URT2
- Releasing device Accessory SYSW
- Access Control Systems Units ALVY
- Burglar Alarm Systems Power Supply APHY
| Model | Description |
|---|---|
| BPS-24-1 | Power supply 1.0 amp @ 24 VDC output |
| BPS-24-2 | Power supply 2 amp @ 24 VDC output |
| BPS-24-4 | Power supply 4 amp @ 24 VDC output |
| BPS-12-1 | Power supply 1 amp @ 12 VDC output |
| BPS-12-3 | Power supply 3 amp @ 12 VDC output |
ElectroLynx® hinges and harnesses required for hard-powered IN100 applications are available through McKINNEY.
784F199 Hard Power Kit
- Included with M35 option IN100 units
- Allows for hard powering (M35) of IN100
- Compatible with ElectroLynx® system
Aperio Configuration Kits
Aperio offers the flexibility to make field configurations easily and without any special equipment. Configuration adjustments can be made to the Aperio hub and Aperio locks using the Aperio Programming tool software and Aperio USB programing dongle from a Windows netbook or laptop with an available USB port.
-
Requirements for Operation:
- Laptop or Netbook with:
- Windows 10
- USB 2.0 port
-
APA-10-PC Aperio Programming Application Tool Kit
- USB Flash Drive
- Programming Application Tool Software and License Files
- Aperio Instructions (electronic files)
- Tritech Tribee USB Radio Dongle (APD-10-USB)
- HID iCLASS/Prox Card
-
APD-10-USB Aperio Configuration USB Dongle
- Tritech Tribee USB Radio Dongle
- Included in APA-10-PC Kit
-
783F909 USB cable
- USB cable is a stand-alone item (sold separately)
Integration Tools for ASSA ABLOY Locks
ASSA ABLOY electronic access control locks integrate with a range of industry leading access control systems. For more information on which systems support our Aperio enabled locks, please contact your local ASSA ABLOY Door Security Solutions office, www.assaabloydss.com. To learn more about how to integrate these and other ASSA ABLOY products with your system, please call 800-810-WIRE.
Options & Accessories
IN100 Aperio® Wireless Access Control
Aperio™ Hub
The Aperio hub is available in a Mercury version for completely seamless integration into Mercury-based access control systems. Please contact your Mercury-based access control provider for ordering information.
The IN100 lock uses short distance wireless transmission (IEEE 802.15.4, 2.4 GHz) to communicate with an Aperio hub, which is connected to an access control system via IP, RS-485 or Wiegand.
Specifications:
- Wireless Communication: IEEE 802.15.4 (2.4 GHz)
- Wireless Range: 50-80 feet (depending on installed environment)
- EAC Communication: IP, RS-485 or Wiegand
- Power: Powered using Power over Ethernet (PoE) or external power supply (8-24VDC)
- Security: AES 128 encryption
- Operating Temperature: 41°F (5 °C) to 95°F (35 °C)
- Humidity: < 95% maximum (non-condensing)
Ordering Aperio Hubs
| SERIES | HARDWARE VERSION |
HARDWARE
CONFIGURATION |
CONFIGURATION
CODE* |
|---|---|---|---|
| AH |
20: Wiegand hub;
30: RS-485 hub; 40: IP hub |
W14: Wiegand 1:1;
R12: RS-485 1:8 (Mercury); or 1:16 (non Mercury) IN2: IP 1:64 |
NNNN |
| Ex.: AH | 30 | R12 | NNNN |
* NNNN is the standard configuration code for Aperio hubs. Access Control Partners should contact 800-810-WIRE for specific ordering information
Aperio Hub Accessories:
• EXT-10-ANT Aperio External Antenna
Aperio hubs are certified for use with the ASSA ABLOY external (omni-directional) antenna EXT-10-ANT. The external antenna may be used to obtain more even radio coverage (in the form of a doughnut) around the hub. Please note that the antenna does not extend the maximum range of the Aperio hub.
Specifications:
- For indoor use only
- Operating Temperature: 32°F (0 °C) to 113°F (45 °C)
- Humidity: < 95% maximum (non-condensing)
Available Trim Options
IN100 Mortise Locks and Exit Devices
|
Standard
Lever |
A Rose | B Rose | F Rose | ||
|---|---|---|---|---|---|
| Armstrong | ASA | ASB | ASF | ||
| Newport | NSA | NSB | NSF | ||
| Princeton | PSA | PSB | PSF | ||
| Citation | CSA | CSB | CSF | ||
| Dirke | DSA | DSB | DSF | ||
| Essex | ESA | ESB | ESF | ||
| Lustra | LSA | LSB | LSF | Armstrong | Citation |
| Regis | RSA | RSB | RSF | ||
| Dirke | Essex* | ||||
| Lustra | Newport* | ||||
| Princeton* | Regis | ||||
| Vineyard™ | G Rose | ||||
| Frascati | FSG | ||||
| Merlot | MSG | ||||
| Zinfandel | ZSG | ||||
| Frascati | Merlot | ||||
| Zinfandel |
Available Trim Options
IN100 Mortise Locks and Exit Devices
Available Trim Options & Finishes
IN100 Mortise Locks
Grooved Insert 21G
Leather Insert 21L
Polished with Satin Insert 21M
Santoprene™ Insert 21S
With Raised Band 23M
Plain 25M
Plain with Two Grooves 27M
Piet Finish Codes
| Finish | Piet Code* | Description |
|---|---|---|
| 630 | 30 | Satin Stainless Steel |
| 629 | 29 | Bright Stainless Steel |
| 613E | 3E | Dark Oxidized Satin Bronze, Equivalent |
| BSP | BS Black Suede Powder Coat | |
| WSP | WS White Suede Powder Coat | |
| N/A | BK Black (Santoprene™ or leather insert) | |
| N/A | BN Brown (leather insert) | |
| N/A | 00 | No Insert |
* Code used to specify Piet Collection finishes only. Use available finishes list to specify desired finish when ordering.
Piet Lever Descriptions & Available Finishes
| Lever Designation | Lever Description | Available Finishes (as ordered) |
|---|---|---|
| 21G | Grooved Insert |
303030, 292929, 293029, 302930, 3E003E, BS00BS
OR WS00WS |
| 21L | Leather Insert |
30BK30, 30BN30, 29BK29, 29BN29, 3EBK3E,
BSBKBS, WSBKWS, 3EBN3E, BSBNBS OR WSBNWS |
| 21M | Metallic Insert | 293029** |
| 215 | Santoprene Insert | 30BK30, 29BK29, 3E003E, BS00BS or WS00WS |
| 23M | Raised Band |
290030, 290029, 300030, 3E003E, BS00BS OR
WS00WS |
| 25M | Plain | 290029, 300030, 3E003E, BS00BS or WS00WS |
| 27M | Two Grooves | 290029, 300030, 3E003E, BS00BS or WS00WS |
** Two-tone finish - grip of lever is 630, balance of lever is 629. Rose/escutcheon and lock finish will be 629.
Ordering Examples
Rose Options: E2, E3, E4, T, U, V, W, X, Y
| Quantity |
Series/
Function |
Trim | Lever Finish | Lock Finish | Hand |
Thumbturn
Options |
|---|---|---|---|---|---|---|
| 2 | ML20134 | 21LU | 29BK29 | 629 | RH | MT3 |
| 1 | ML20136 | 23ME3 | 290030 | 629 | RH | MT3 |
How to Order the Muséo® Piet Levers
IN100 Mortise Locks
The Muséo® Line Roses1
Thumbturns3
Specify quick code MT1, MT2, or MT3 for decorative turns. Standard thumbturn will be supplied without quick code.
Notes:
- 1. Roses only available with Muséo levers.
- 2. Square cylinder collar and thumbturn backplate automatically supplied with E2, E3, and E4 roses.
- 3. Thumbturn back plate will match shape of rose chosen (i.e. round or square).
Finishes
Common Replacement Parts
IN100 Mortise Locks
| Catalog Number | Color |
|---|---|
| Outside Escutcheon (Reader), Controller & Inside Mounting Kit | |
| IN-100-CREM01-BIPS-B | Black |
| IN-100-CREM01-BIPS-MB [finish]** | Black with metal trim |
| Catalog Number | Description | Color |
|---|---|---|
| Inside Escutcheon (Battery Cover) | ||
| 820F489 | Inside escutcheon | Black |
| 820F525 [finish]** | Inside escutcheon | Black with metal trim |
| Catalog Number | Description |
|---|---|
| 820F609 | IN100 door position switch |
| IN-100-CREM04 | Inside mounting kit (mounting plate and hardware) |
| 783F909 | USB cable, 10 ft. |
| Catalog Number | Description |
|---|---|
| Lock Bodies | |
| 784F848 [handing]* 26D |
IN100 ML20133/ML20134 Mortise lock,
no deadbolt |
| 885F980 |
IN100 CLX33134 Cylindrical lock,
freewheeling lever (1-3/8" - 2-1/4" door) |
| 885F990 |
IN100 CLX33134 Cylindrical lock, rigid
lever (1-3/8" - 2-1/4" door) |
| 816F048 [handing]*26D |
ML20233/ML20234 Lock Case - No
Deadbolt |
| 816F058 [handing]*26D |
ML20235/ML20236 Lock Case - With
Deadbolt |
| Catalog Number | Description | |
| Exit Device Replacement Parts | ||
| N9133 [handing]* [finish]** IN100 | Rim exit trim without cylinder | |
| N9134 [handing]* [finish]** IN100 | Rim exit trim with cylinder | |
| N9M133 [handing]* [finish]** IN100 | Mortise exit trim without cylinder | |
| N9M134 [handing]* [finish]** IN100 | Mortise exit trim without cylinder | |
* Replace with handing (L, LR, R, RR)
Cover Plate Kits
| Description | Part Number |
|---|---|
| IN Series mortise lock, ML20133/ML20233 (no key override, no deadbolt) | 784F137 32D |
| IN Series mortise lock, ML20134/ML20234 (key override, no deadbolt) | 784F147 32D |
| IN Series mortise lock, ML20235 (no key override, with deadbolt) | 784F157 32D |
| IN Series mortise lock, ML20236 (key override, with deadbolt) | 784F167 32D |
| IN Series cylindrical lock, CLX33134 (with key override) | 784F177 32D |
** Select from finishes on previous page
Notes
IN100 Mortise Locks
The ASSA ABLOY Group is the global leader in access solutions. Every day, we help billions of people experience a more open world.
ASSA ABLOY Opening Solutions leads the development within door openings and products for access solutions in homes, businesses and institutions. Our offering includes doors, frames, door and window hardware, mechanical and smart locks, access control and service.
For additional information, contact your ASSA ABLOY Door Security Solutions sales consultant or visit www.corbinrusswin.com.
In U.S. Corbin Russwin 225 Episcopal Road Berlin, CT 06037 Phone: 800-543-3658 Fax: 800-447-6714 www.corbinrusswin.com
In Canada ASSA ABLOY Door Security Solutions Canada 160 Four Valley Drive Vaughan, Ontario Canada L4K 4T9 Phone: 800-461-3007 Fax: 800-461-8989 www.assaabloydss.ca
MicroShield®
As part of their promise to provide innovative solutions to their customers, certain ASSA ABLOY Group brands offer the MicroShield® technology, a silver-based antimicrobial coating designed to inhibit the growth of bacteria.
Microshield® is a registered trademark of ASSA ABLOY Access and Egress Hardware Group, Inc.
Wakefield, MA, USA
The Agion antimicrobial is not intended as a substitute for good hygiene. Coated products must still be cleaned to ensure the surfaces will be free of destructive microbes. ASSA ABLOY makes no representations or warranties, express or implied, as to the efficacy of the Agion antimicrobial. A copy of the Agion warranty is available upon request. Agion is a registered trademark of Agion Technologies, Inc.,
