Corbin Russwin HPSK Positive Pull Stop Installation Instructions

INSTALLATION INSTRUCTIONS

HPSK Positive Pull Stop Retrofit Kit Instructions FM 348 Rev. 10/18

HPSK POSITIVE PULL STOP RETROFIT KIT INSTALLATION

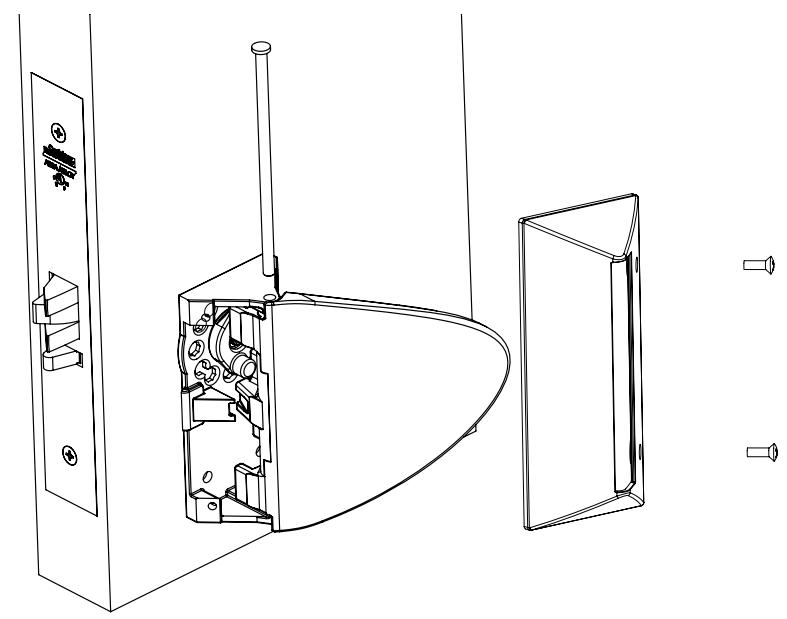

Step 1) Remove cover and paddle on pull side of door

Step 2) Remove both surface mount screws from pull side of door

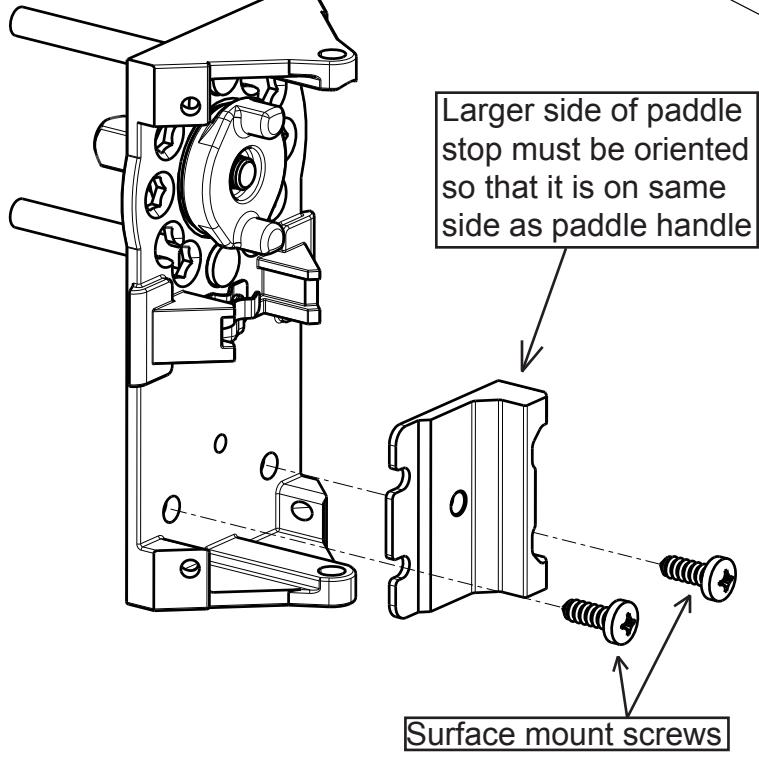

Step 3) Orient paddle stop so that larger side is underneath the paddle

Step 4) Re-install both surface mount screws

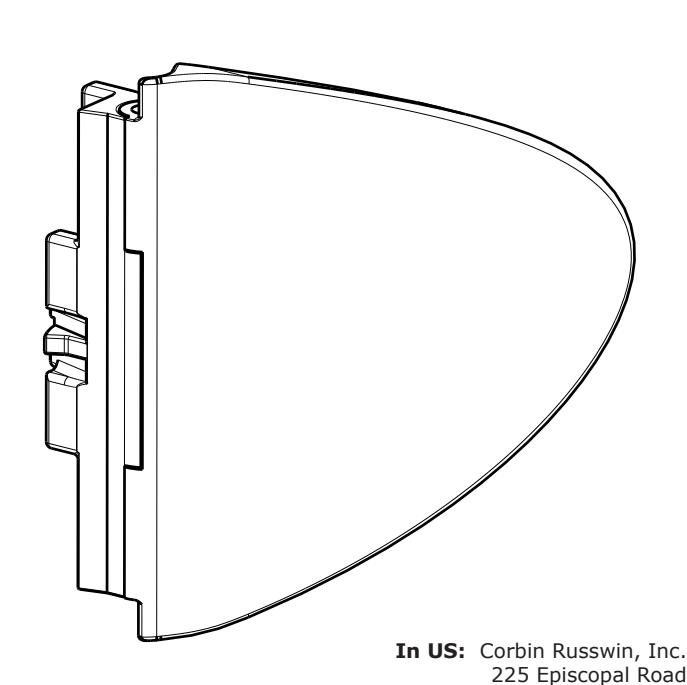

Step 5) Re-Install paddle

Step 6) Check to make sure paddle retracts latch when pushed but not when pulled

Step 7) Re-Install cover
