Installation Instructions

FE6800 Series

Multi-Point Lock

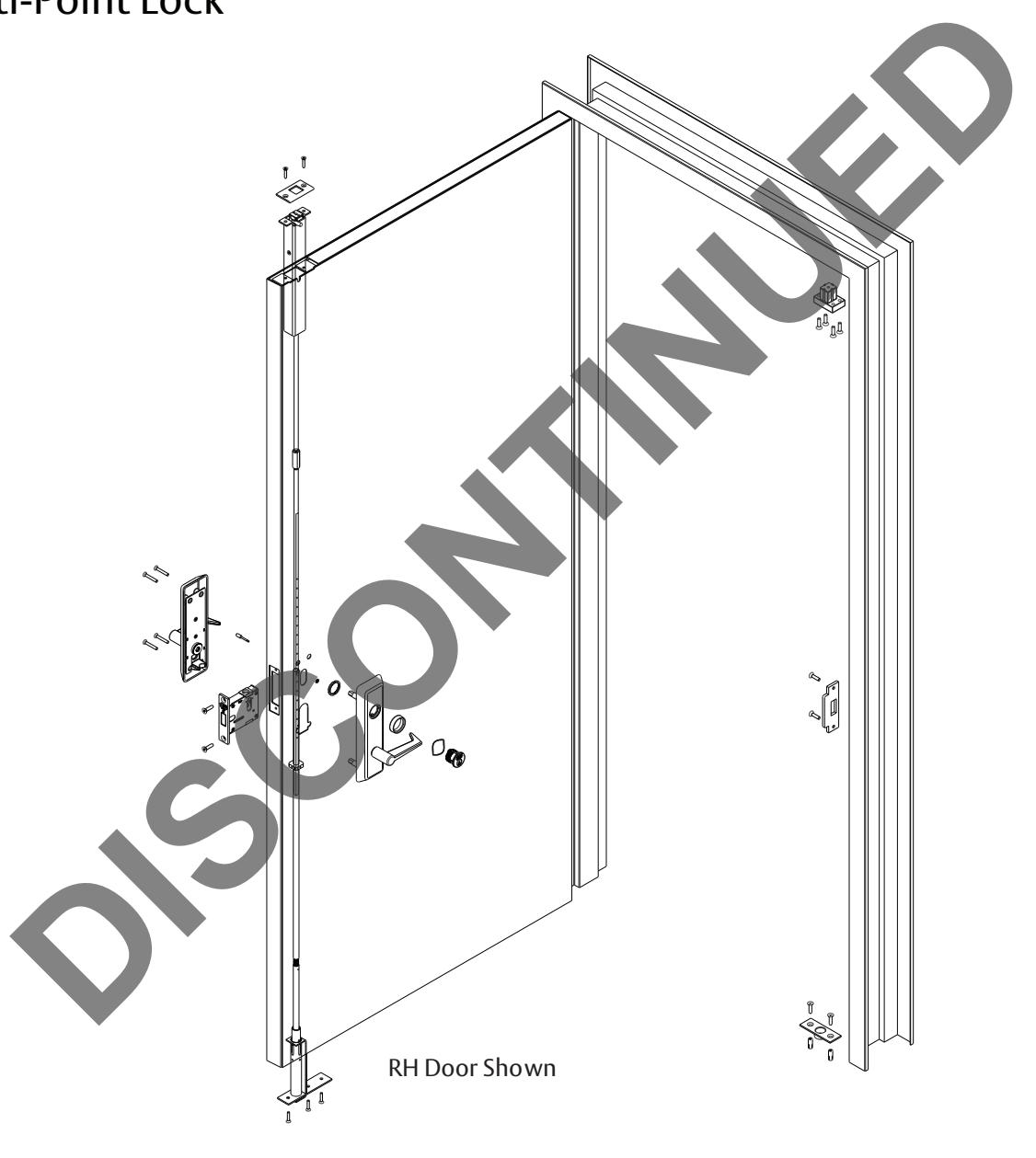

Multi-Point Lock

Installation Instructions

ASSA ABLOY

This device is intended to be part of an integrated door, frame and hardware assembly UL-approved for both FEMA P-361 (2014), FEMA P-320 (2015) & ICC 500 (2014) guidelines for both in-swing and out-swing doors.

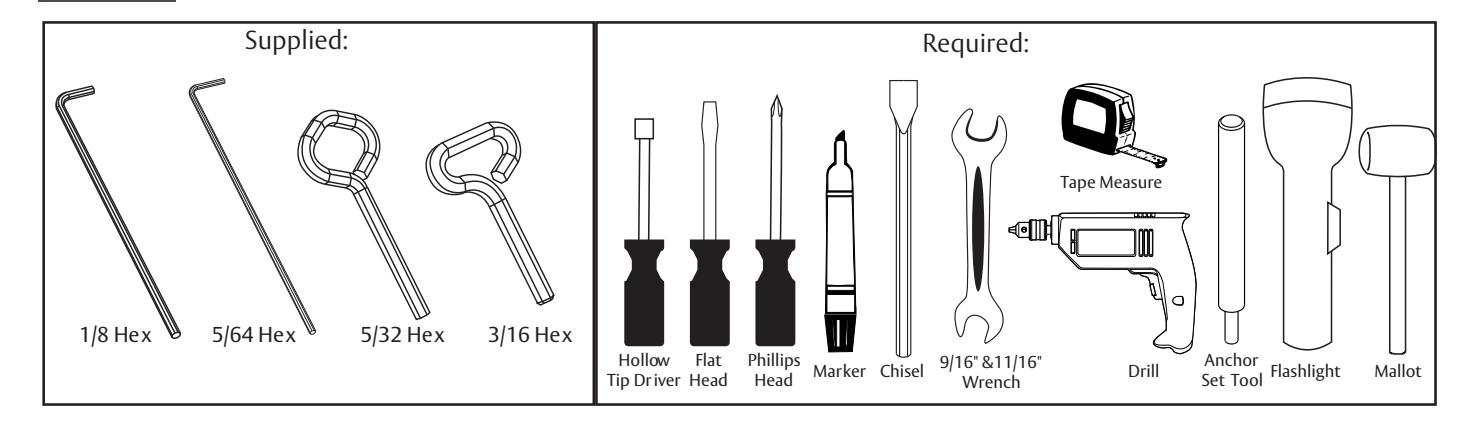

Tools Needed

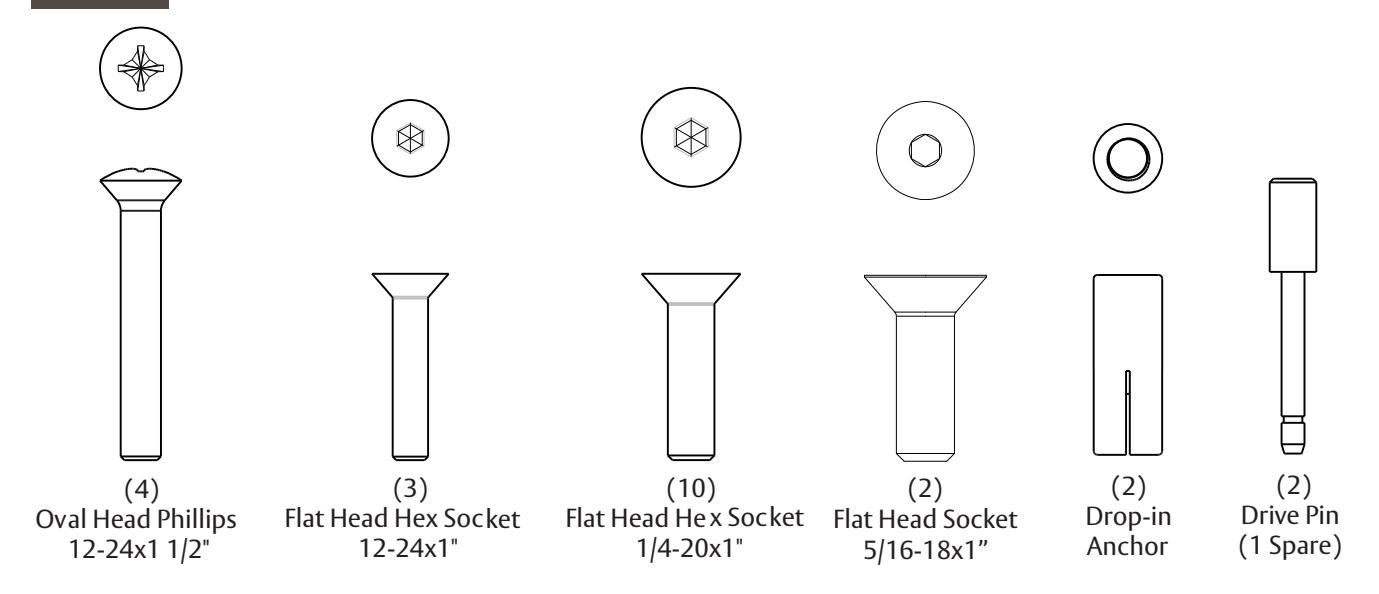

Mounting Hardware (Full Scale)

(2) Push-on Retaining Ring (1 Spare)

Multi-Point Lock

Installation Instructions

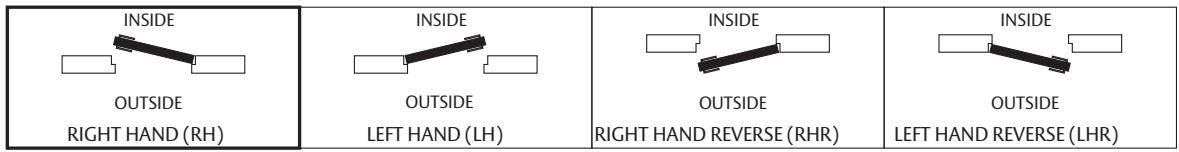

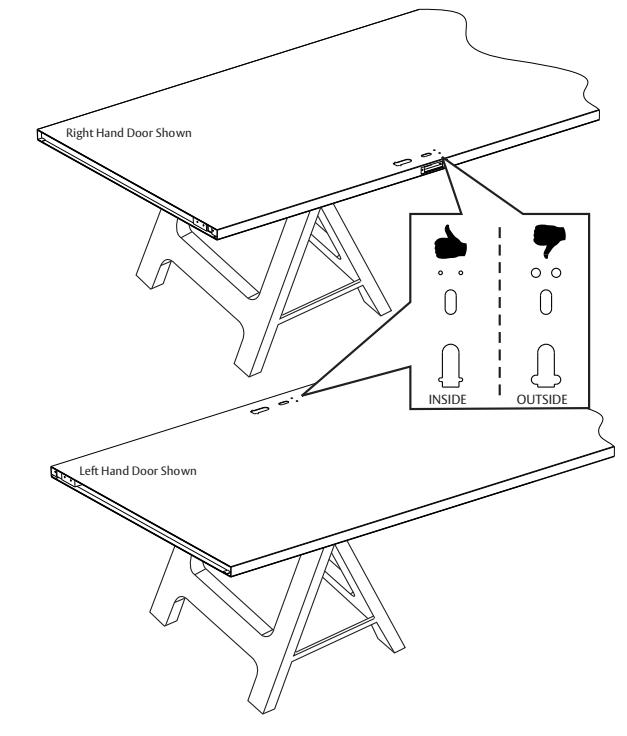

3 Verify Handing

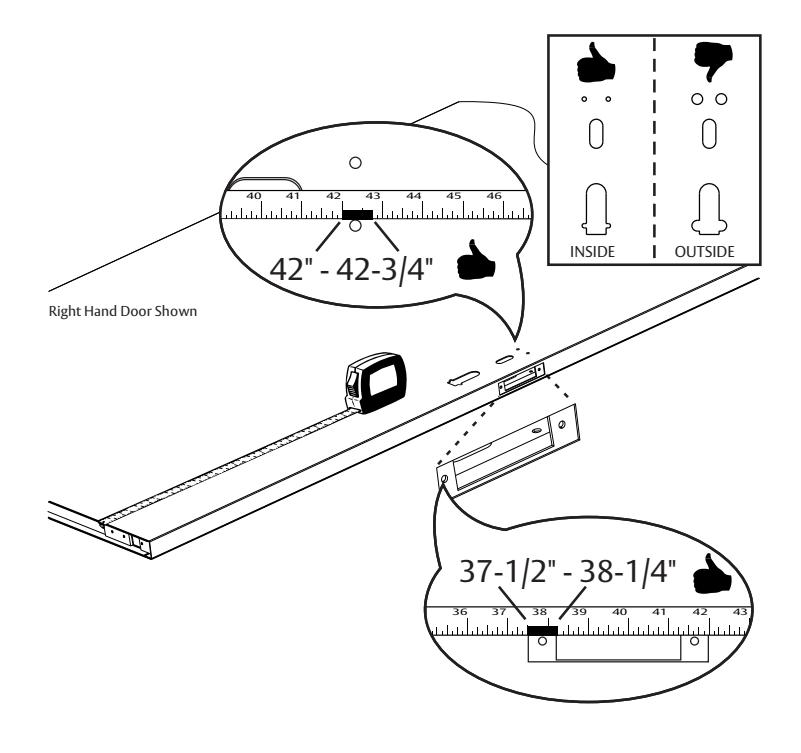

4 Verify Door Dimensions

LOCK IN condition can occur and EMERGENCY EGRESS will be prevented if critical dimensions are not met. Device will not operate, if door cutouts are not within the dimensions below.

Copyright © 2016, 2022, ASSA ABLOY Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole or in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.

Multi-Point Lock

Installation Instructions

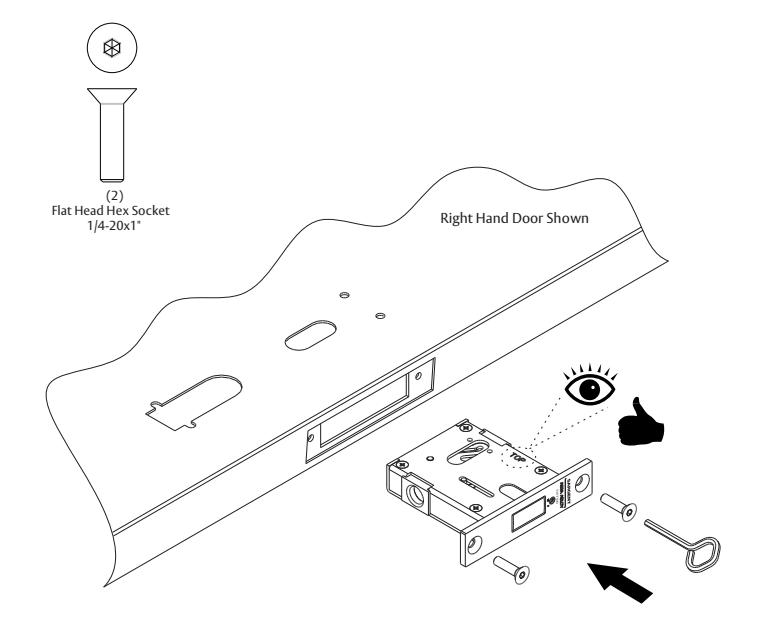

5 Install Deadbolt Assembly

Deadbolt must be retracted before moving to the next step.

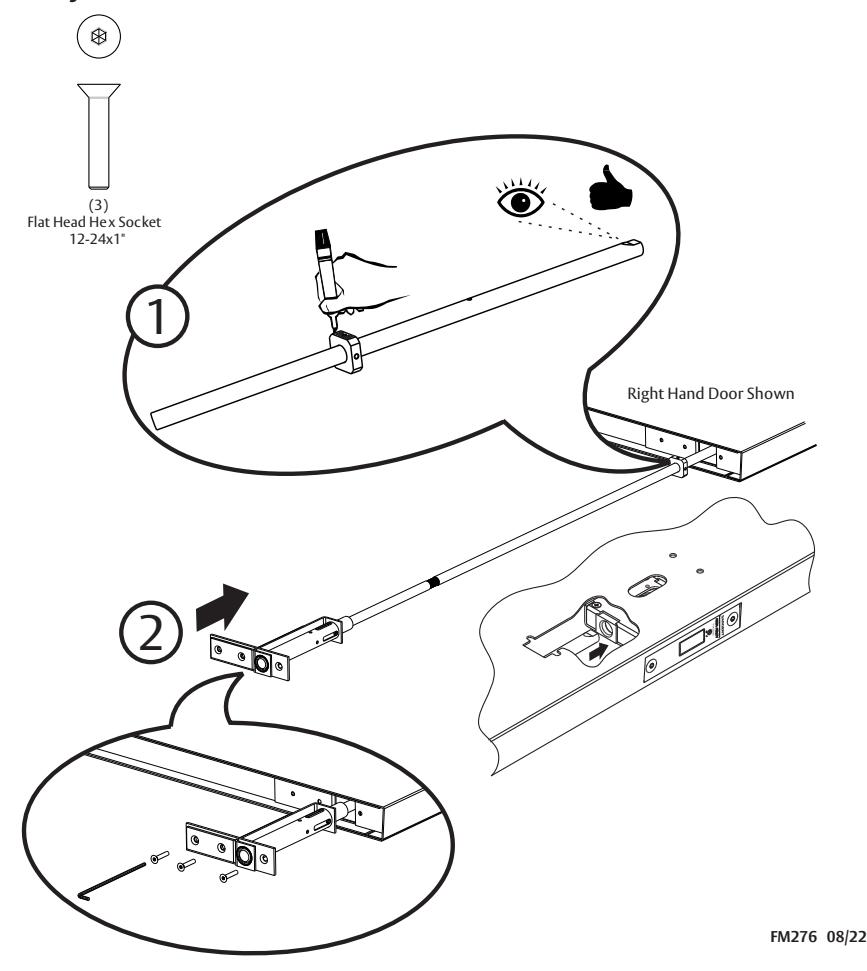

6 Install Bottom Bolt Assembly

For installation assistance contact Corbin Russwin

1-800-543-3658 • techsupport.corbinrusswin@assaabloy.com

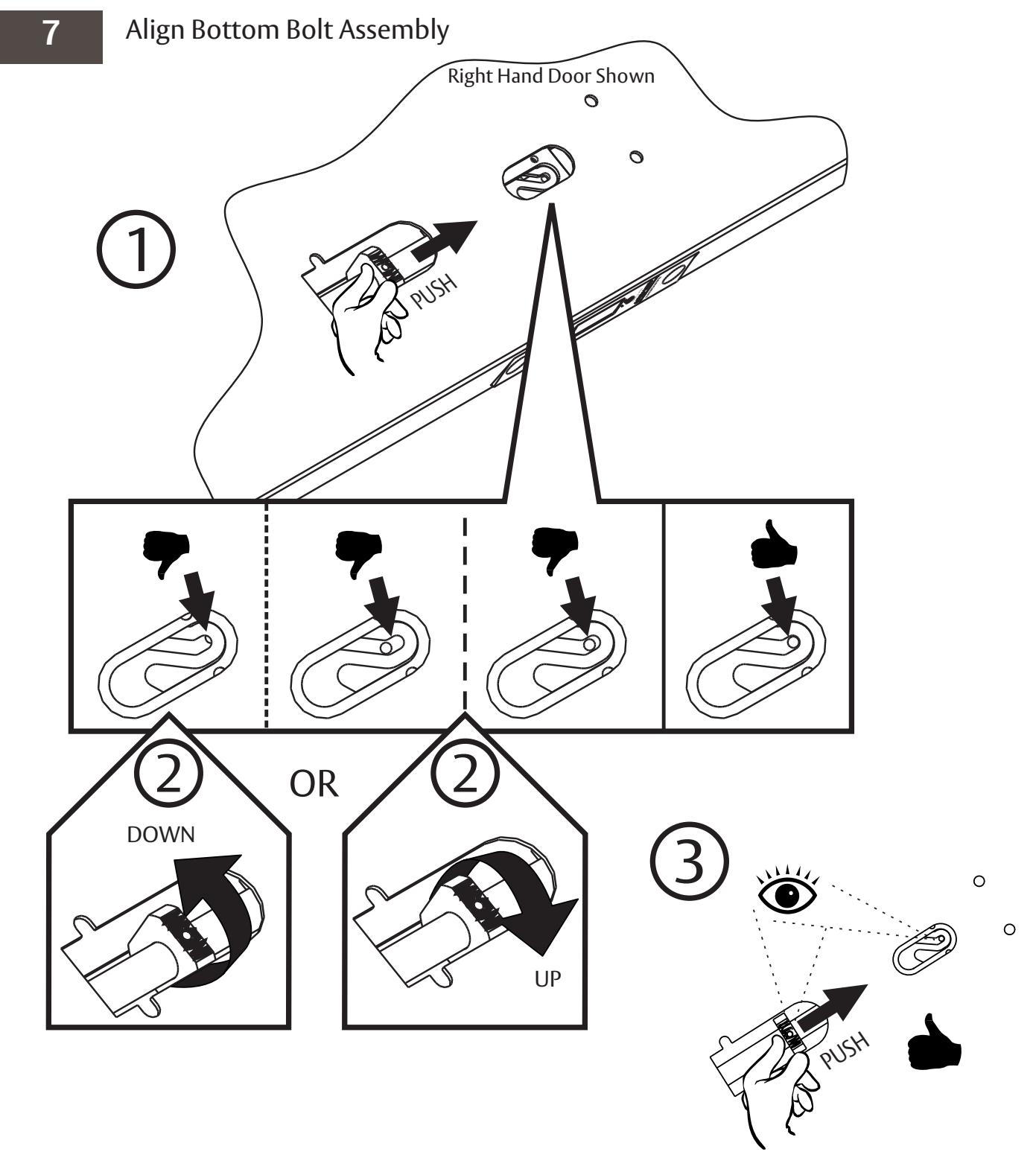

Multi-Point Lock

Installation Instructions

Copyright © 2016, 2022, ASSA ABLOY Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole or in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.

Multi-Point Lock

Installation Instructions

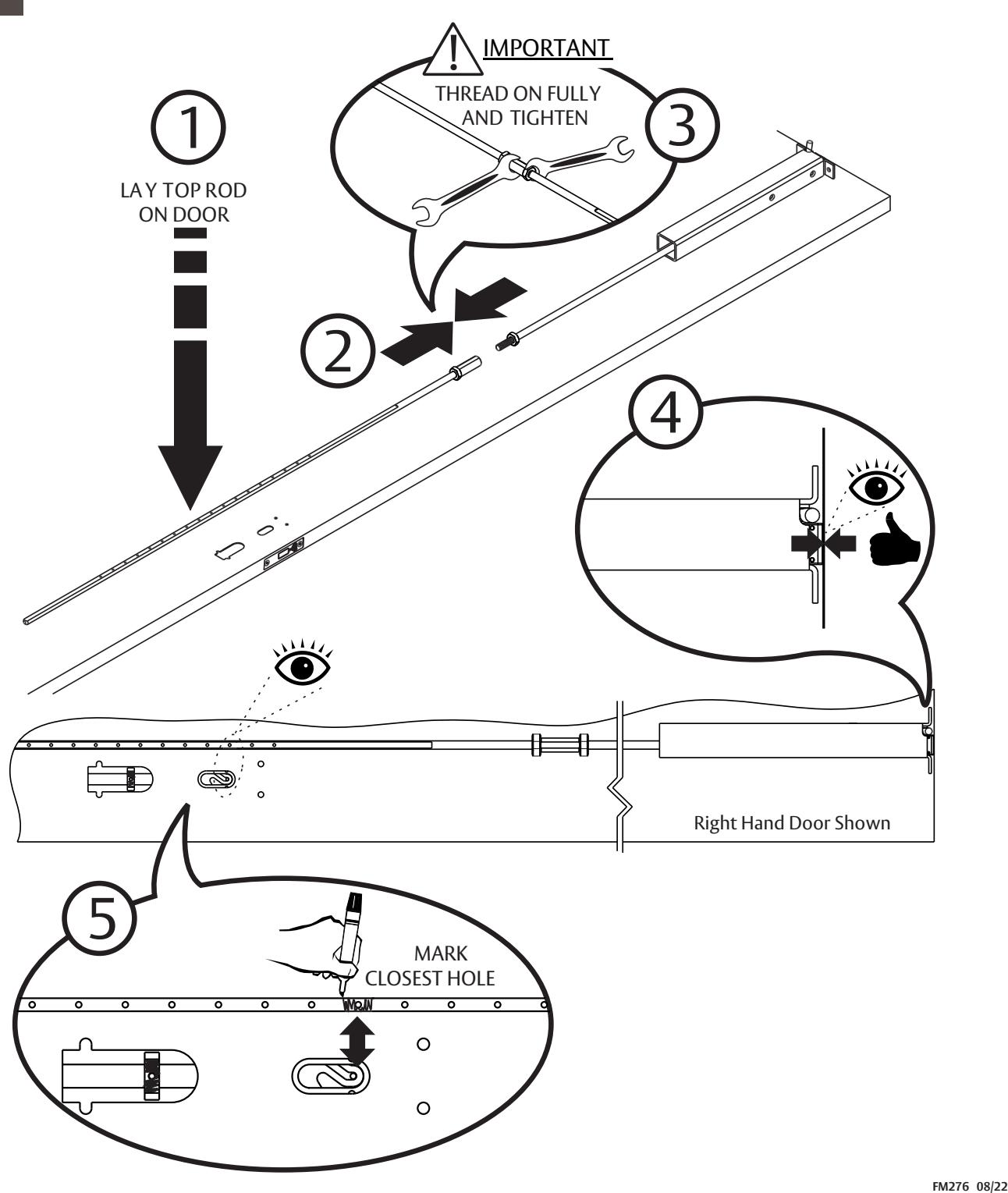

8 Prep Top Assembly

For installation assistance contact Corbin Russwin 1-800-543-3658 • techsupport.corbinrusswin@assaabloy.com

Multi-Point Lock

Installation Instructions

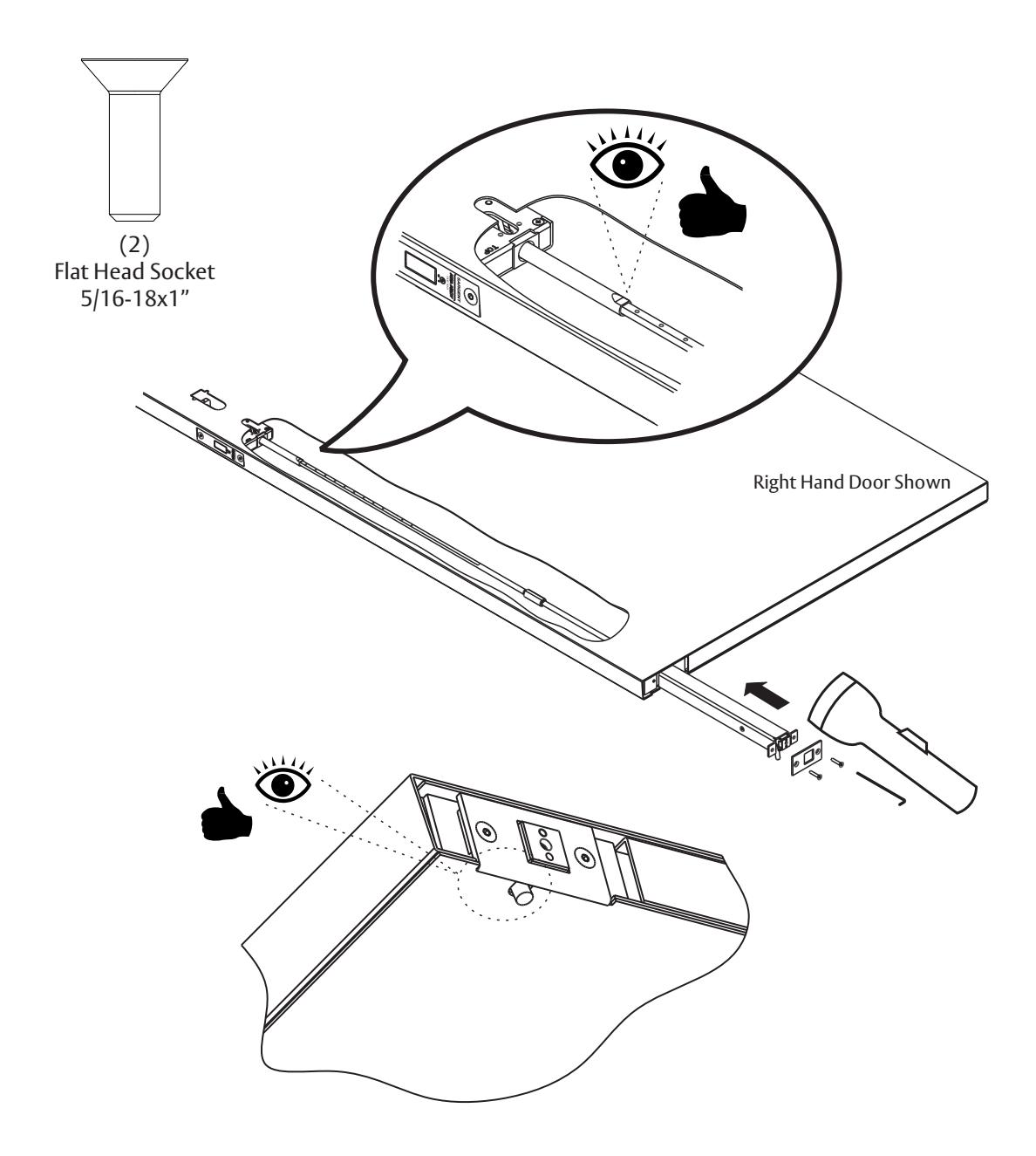

9 Install Top Assembly

For doors manufactured before July 2022, drill & tap top bolt screw holes for 5/16-18 screw threads.

Multi-Point Lock

Installation Instructions

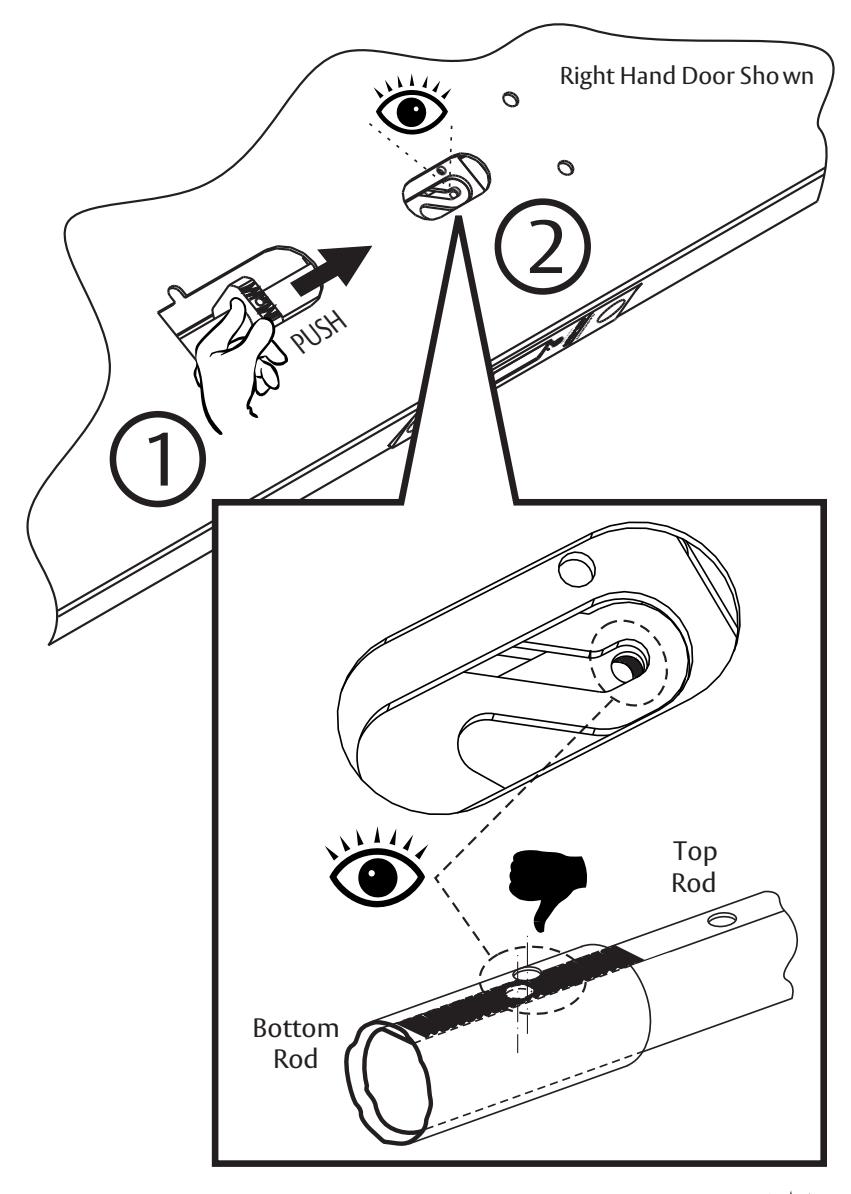

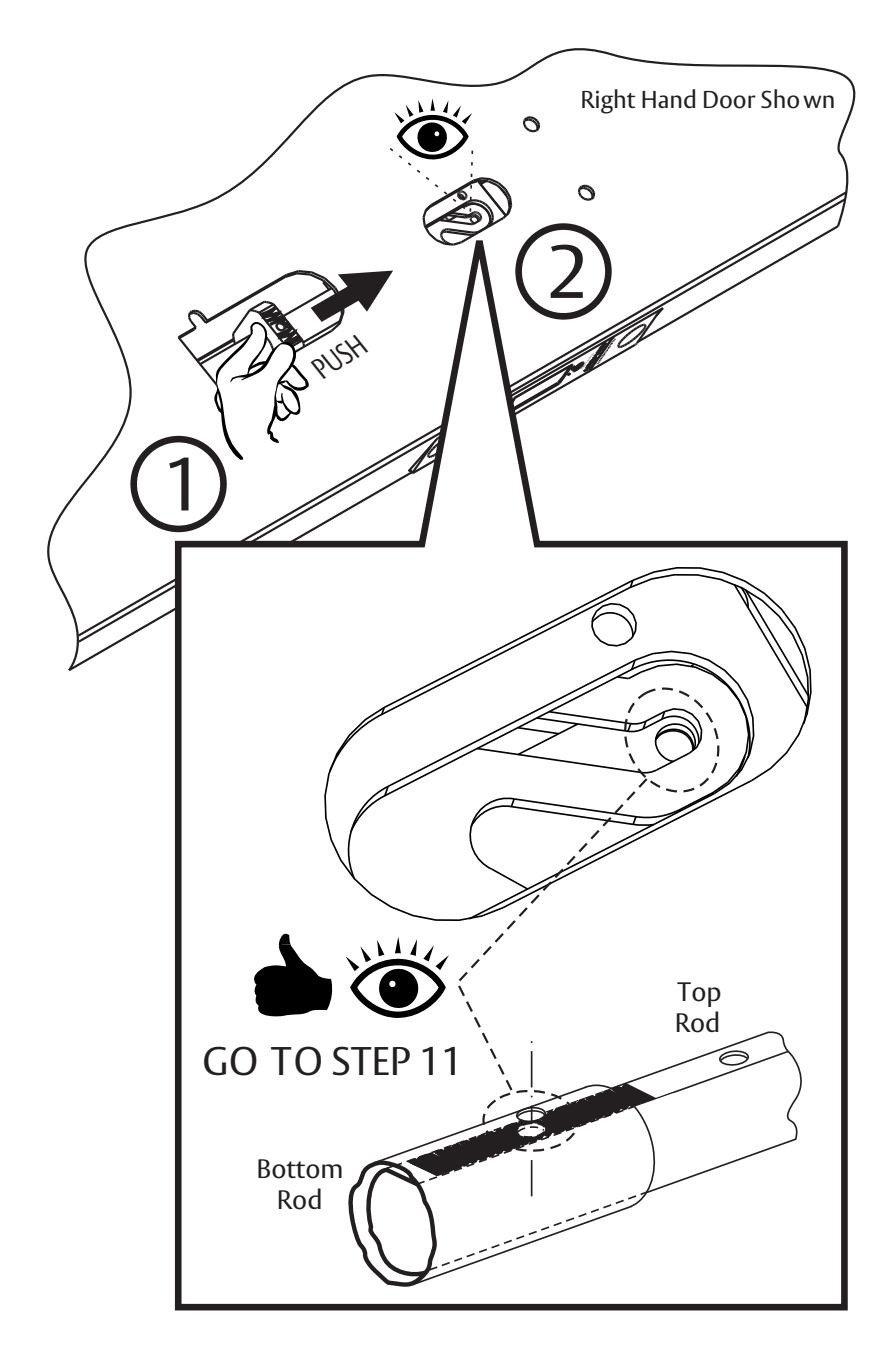

10 Align Top & Bottom Pinning Holes

Multi-Point Lock

Installation Instructions

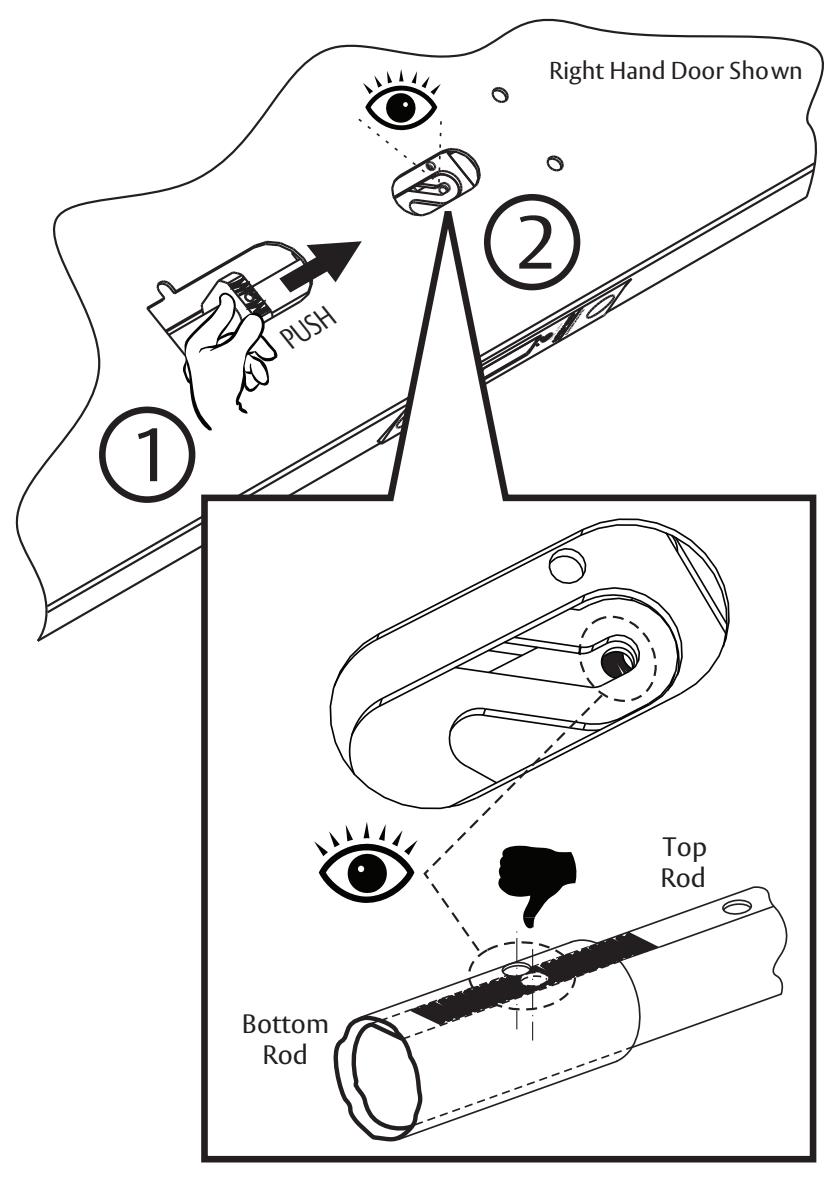

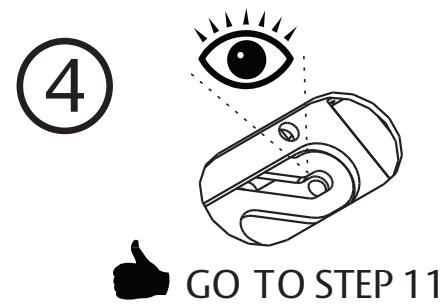

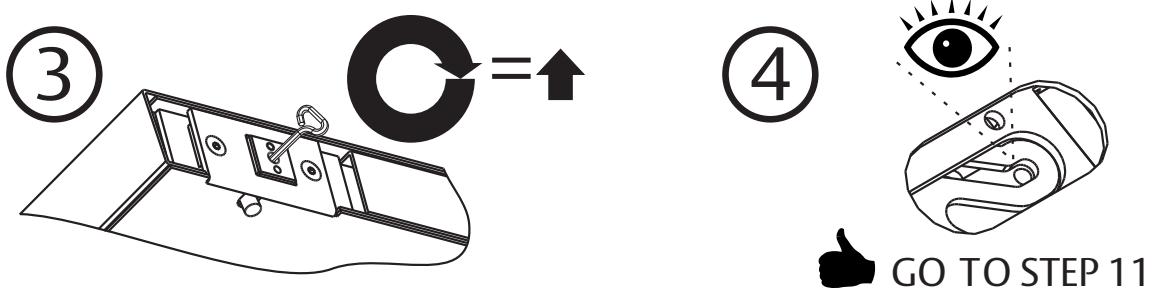

10a Adjust Misaligned Pinning Holes Up

FM276 08/22 For installation assistance contact Corbin Russwin 1-800-543-3658 • techsupport.corbinrusswin@assaabloy.com

Multi-Point Lock

Installation Instructions

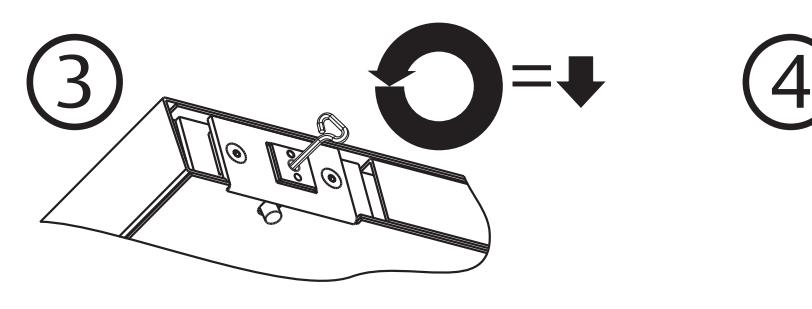

10b Adjust Misaligned Pinning Holes Down

Multi-Point Lock

Installation Instructions

11

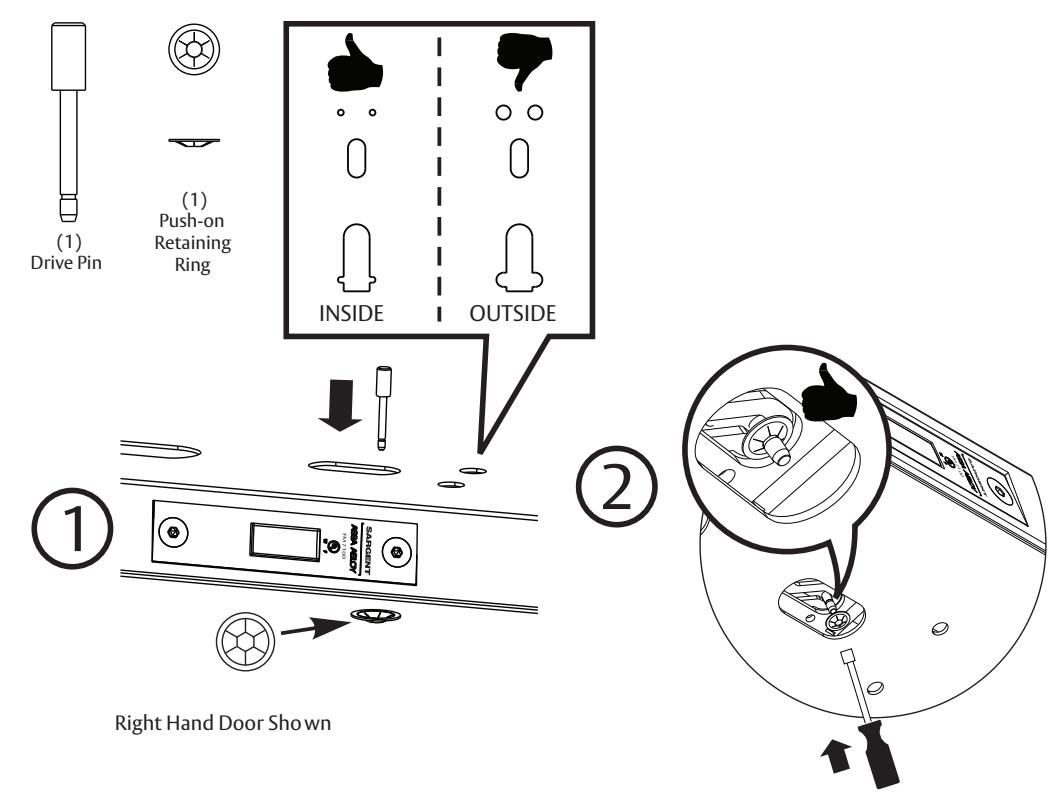

Pin Three Assemblies

12

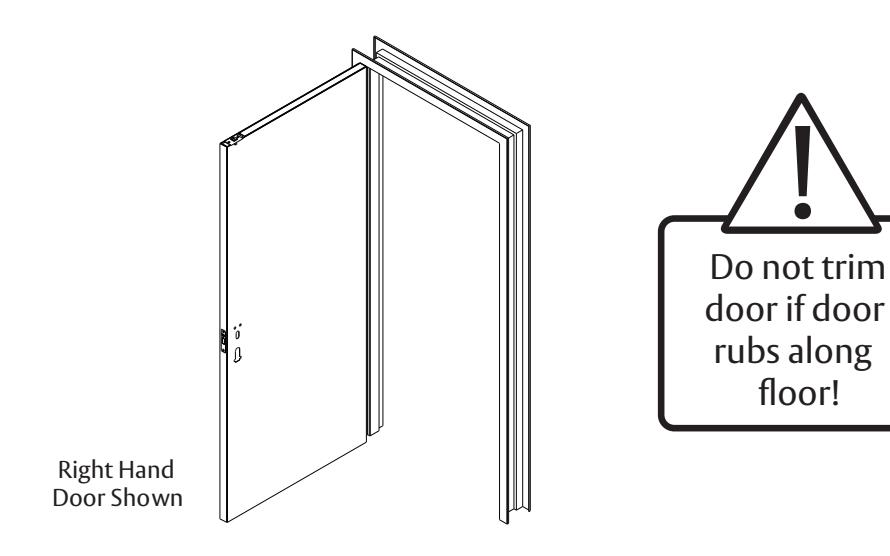

Mount Door to Frame

FM276 08/22

Copyright @ 2016, 2022, ASSA ABLOY Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole or in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.

Multi-Point Lock

Installation Instructions

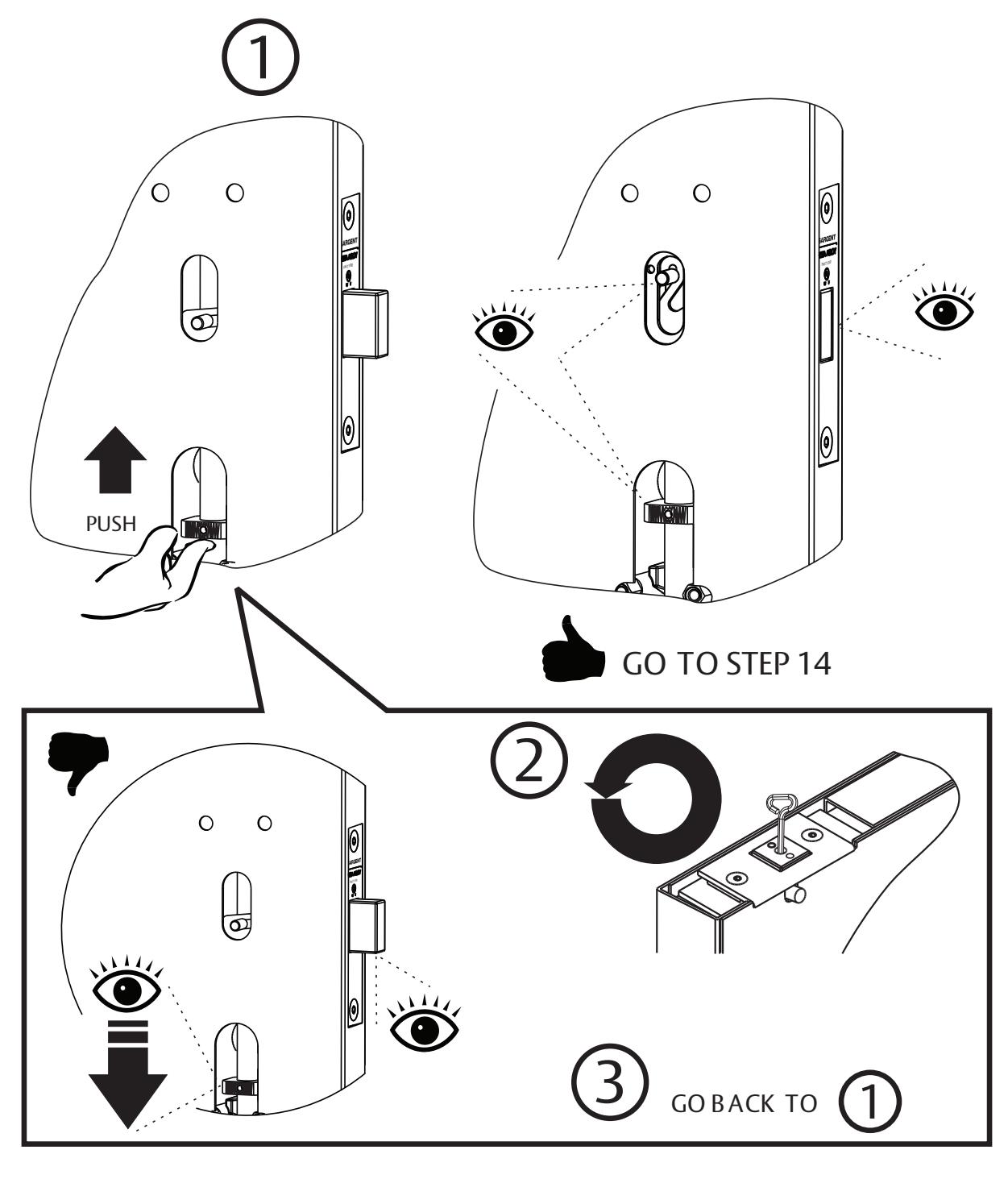

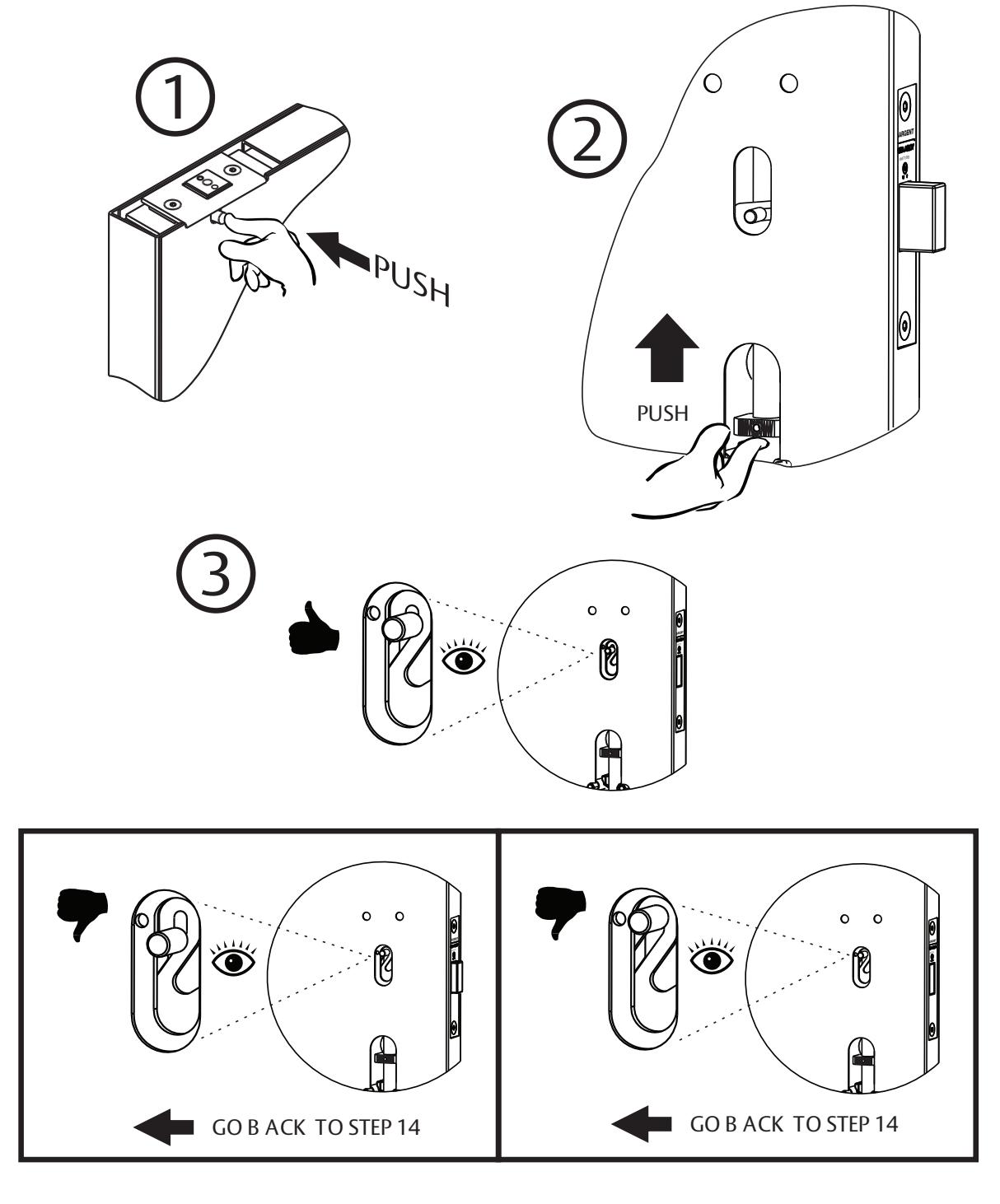

13 Check for Hold Open

Multi-Point Lock

Installation Instructions

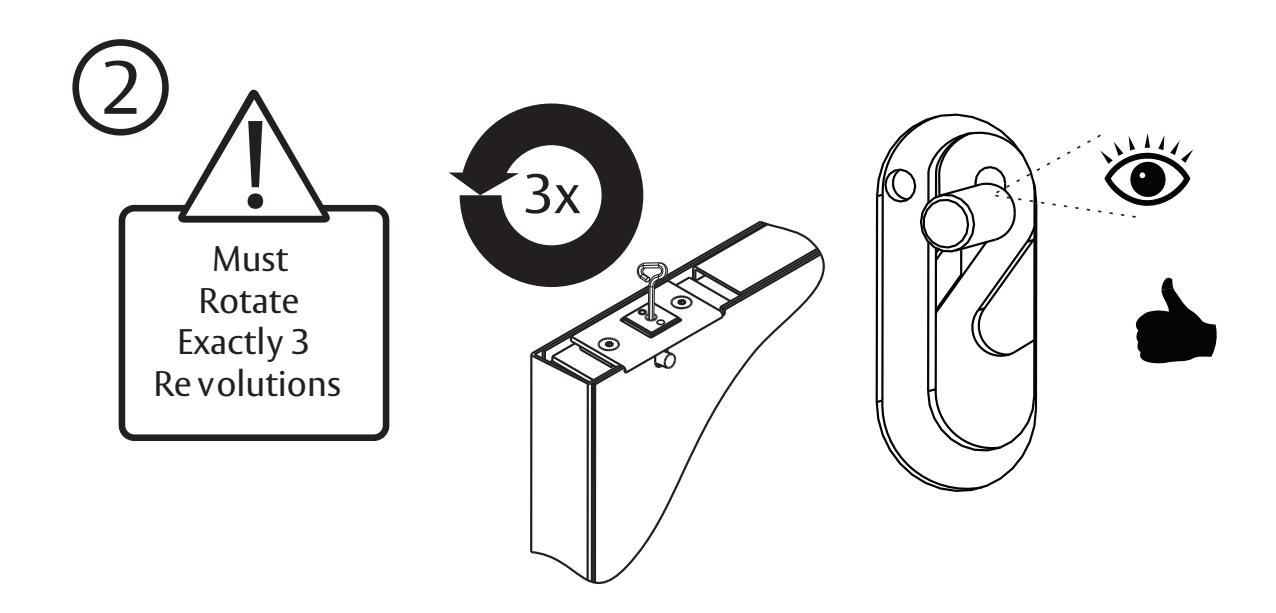

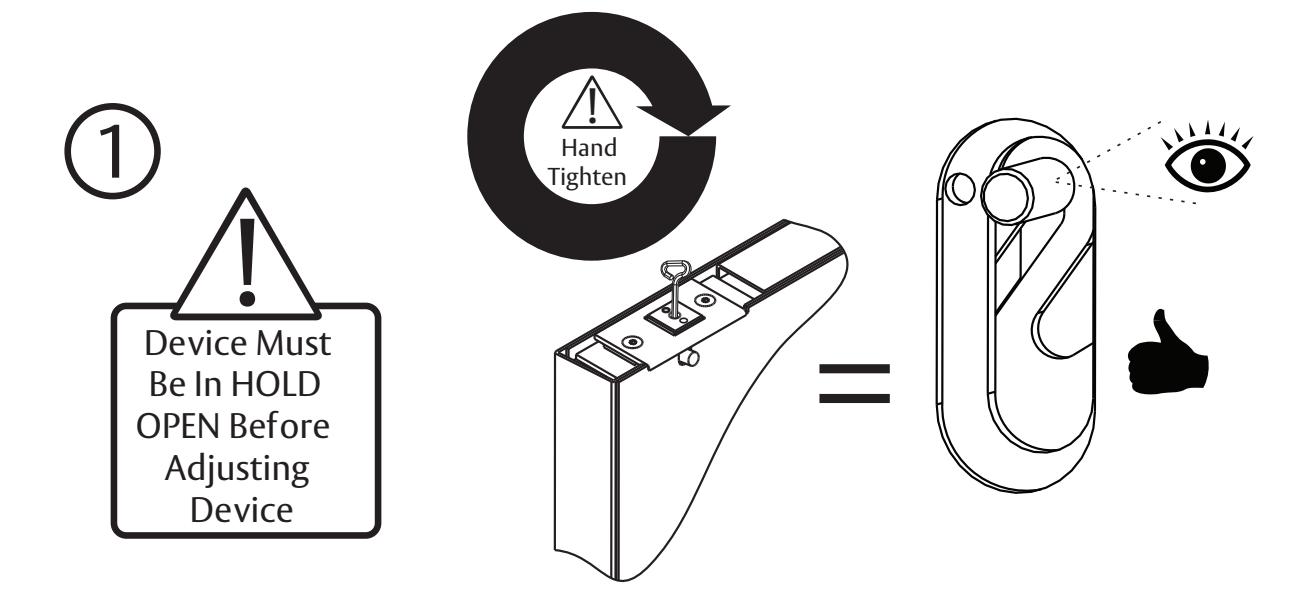

14 Adjust Device

Multi-Point Lock

Installation Instructions

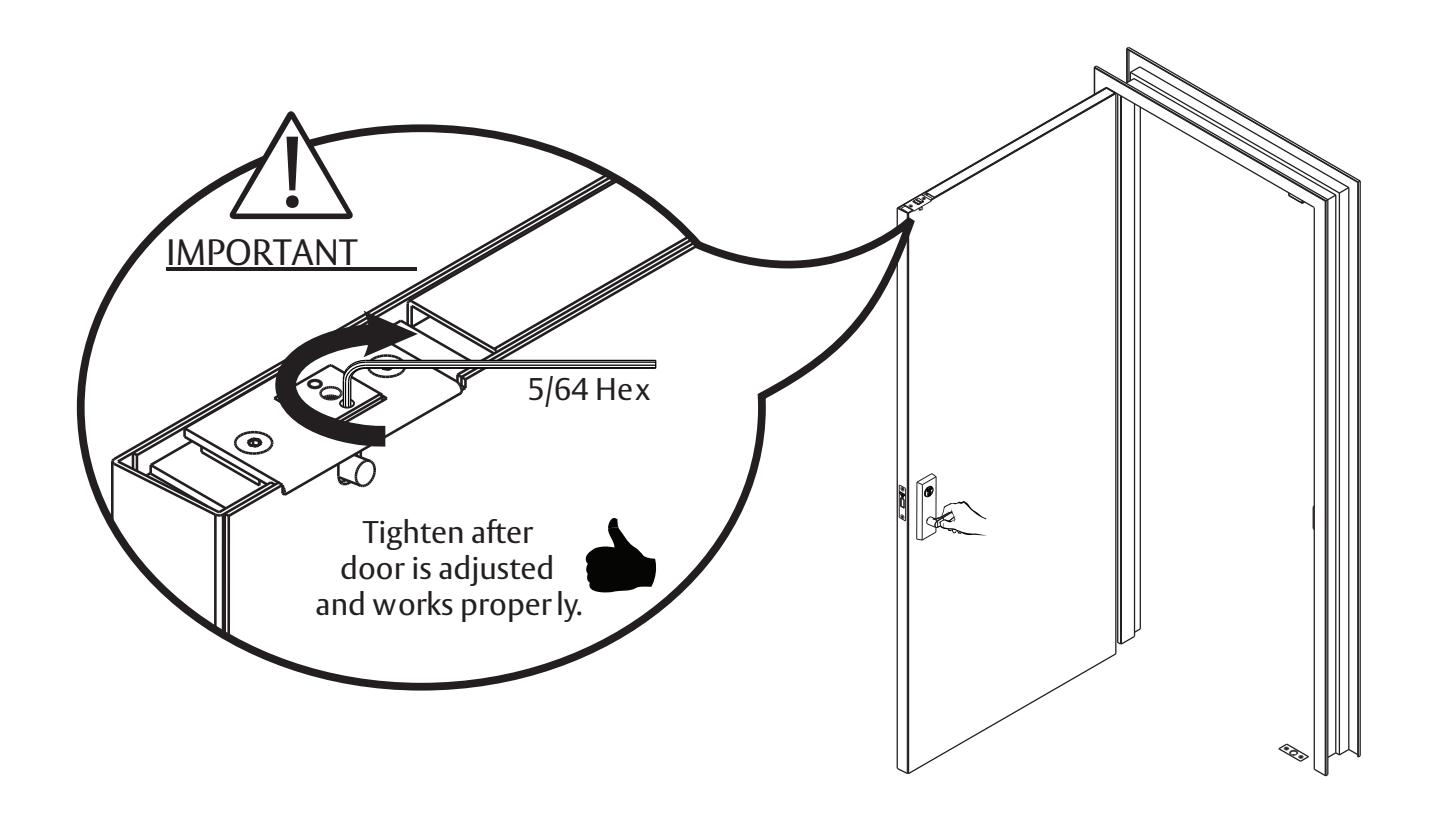

15 Trigger Device & Final Check

Multi-Point Lock

Installation Instructions

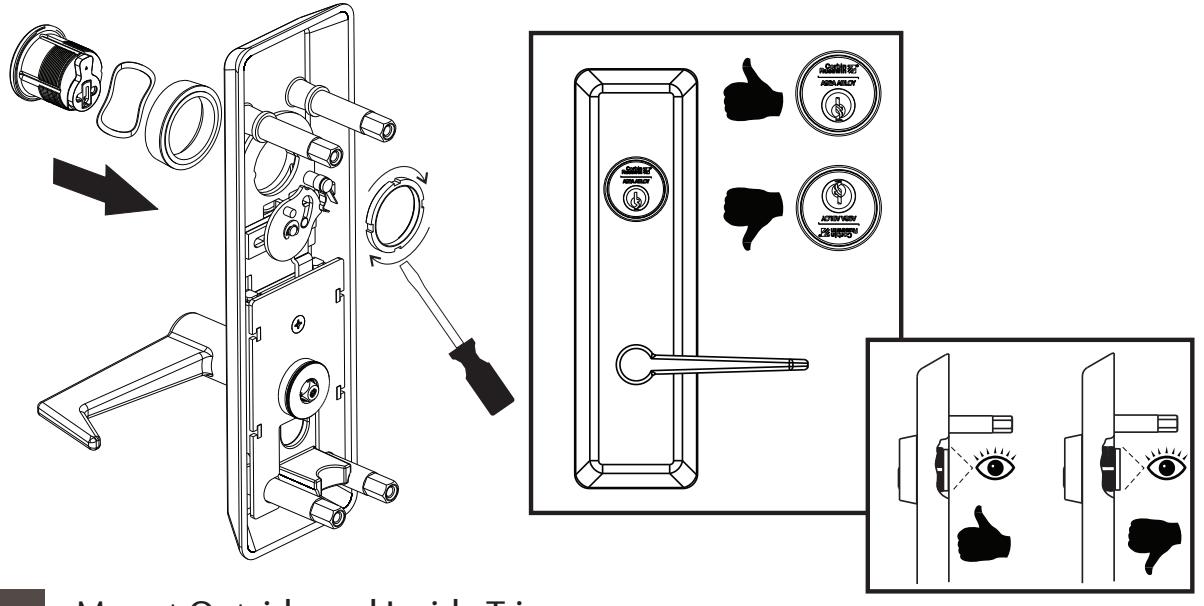

16 Assemble Cylinder into Outside Trim

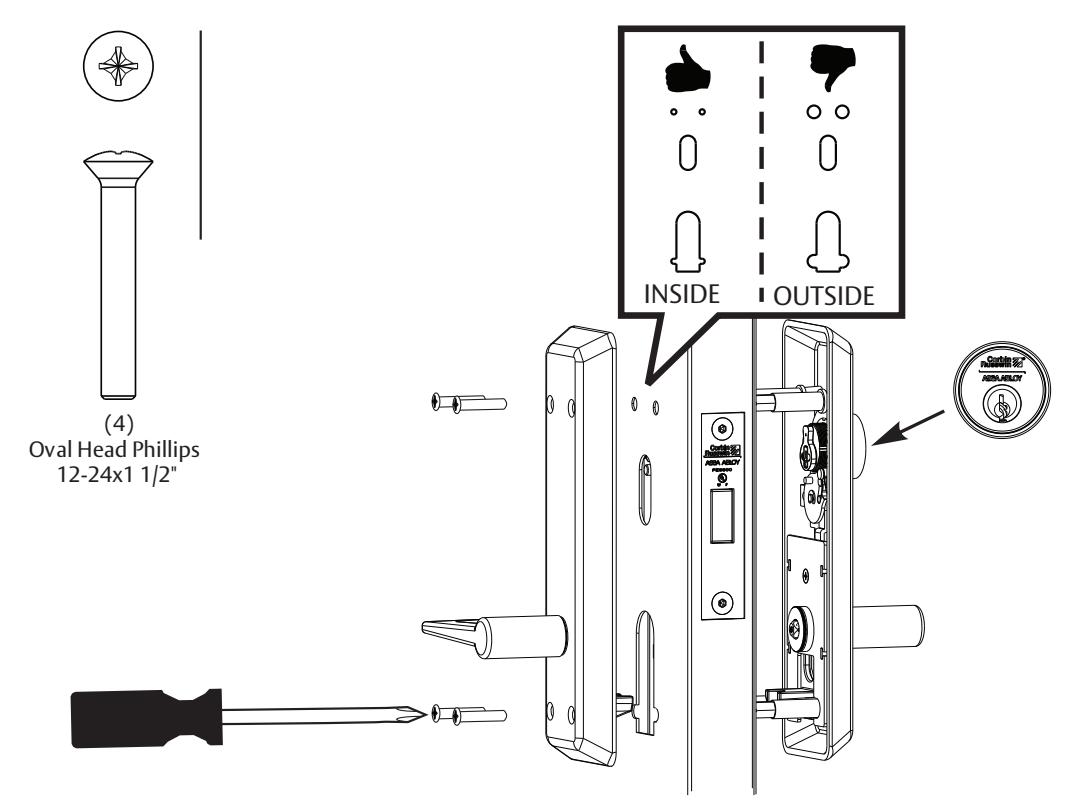

17 Mount Outside and Inside Trim

Multi-Point Lock

Installation Instructions

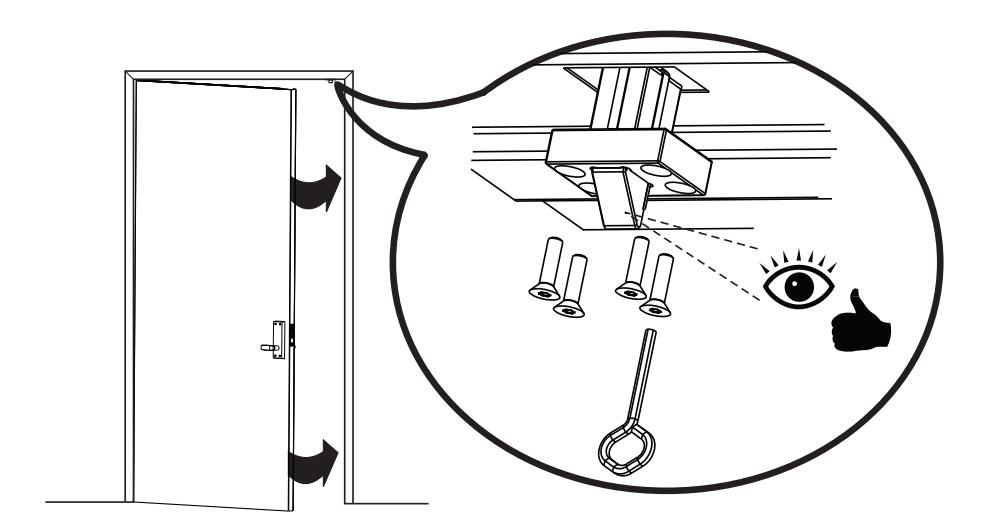

18 Install Top Latch into Door Frame

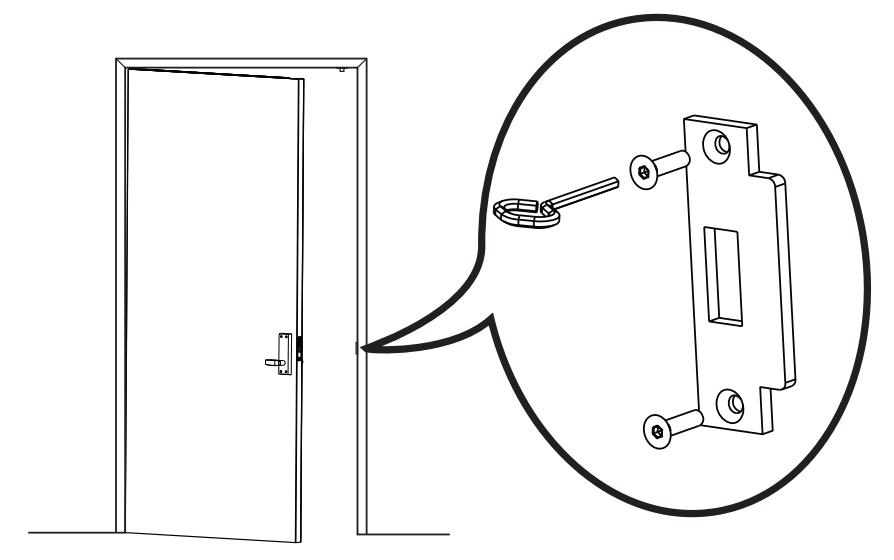

19 Attach Deadbolt Strike Plate to Frame

Multi-Point Lock

Installation Instructions

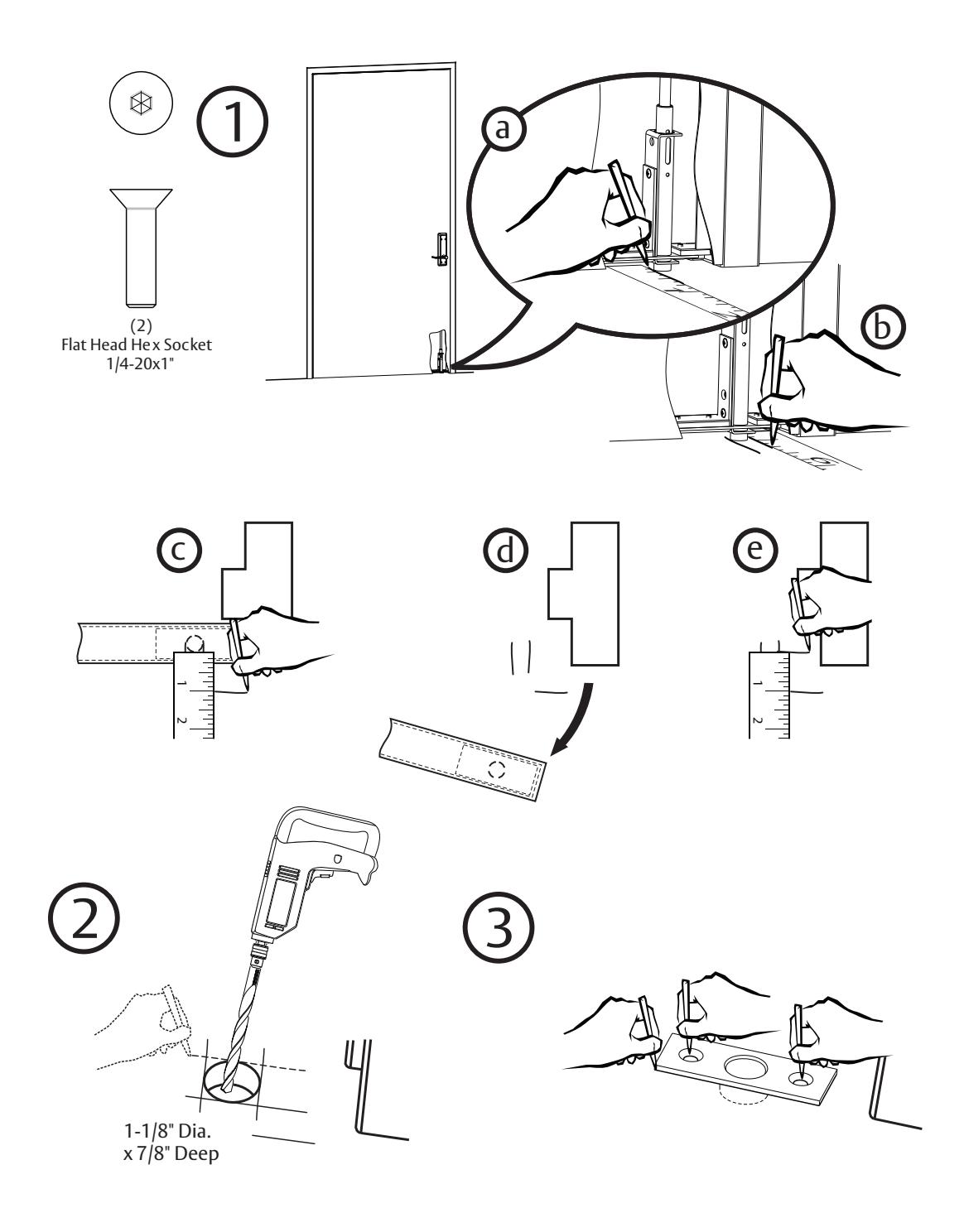

20 Prepare Floor for Bottom Strike

Multi-Point Lock

Installation Instructions

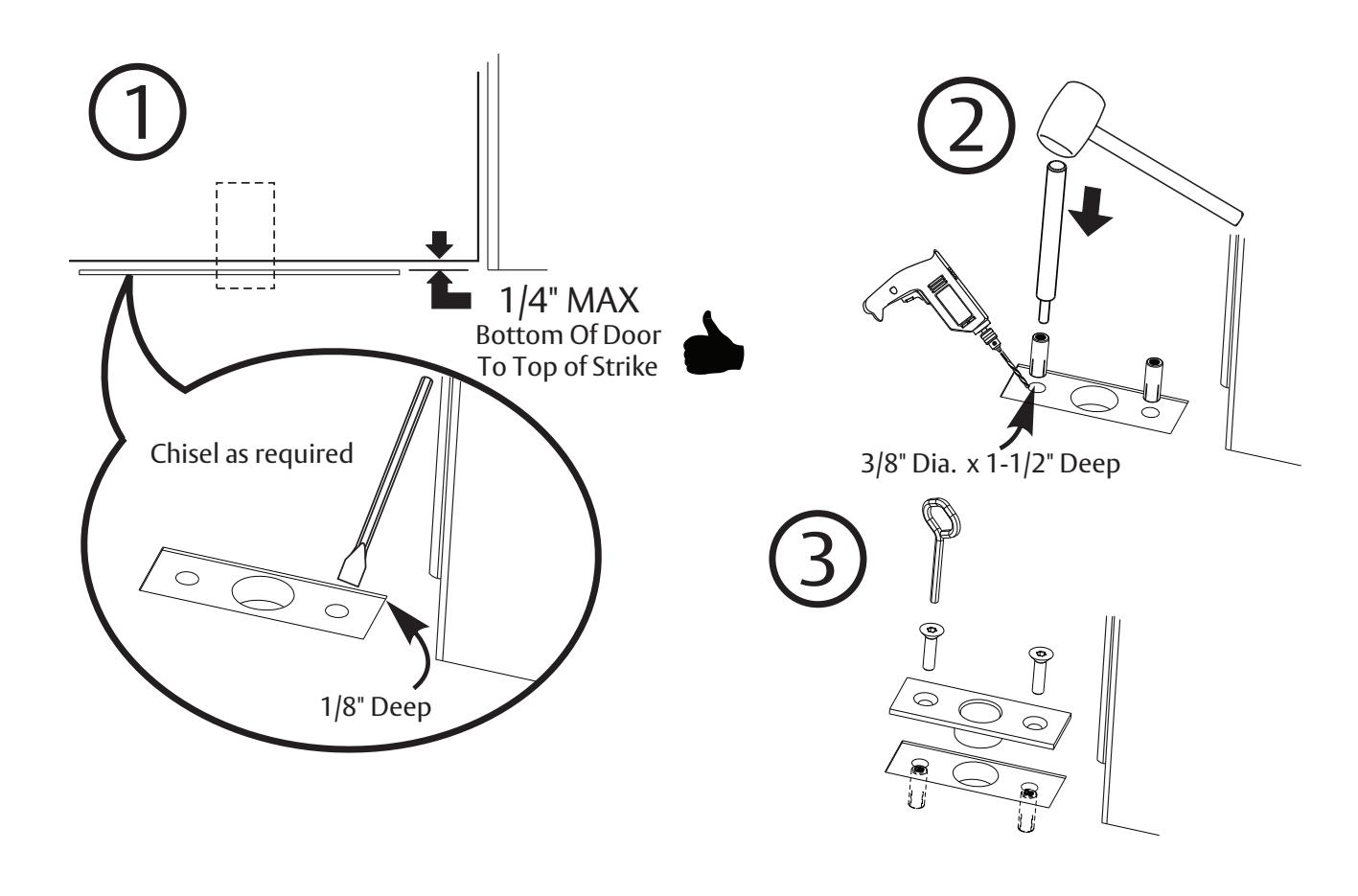

21 Install Bottom Strike

Multi-Point Lock

Installation Instructions

22 Test Installation
