Corbin Russwin F9M57 Trim for ED5600 Wide Stile Mortise with IK (INTELLIKEY) Metal Door Template_T30966

Open the original PDF document

View PDF

Notes:

  • 1. This template is an addition to the device template. Locate centerlines using horizontal and vertical references on device template.
  • 2. Do not scale drawing.
  • 3. Dimensions are in inches (mm).
  • 4. LHR door shown. Preparation is typical for both door hands.
  • 5. For door reinforcement see template T30800.
  • 6. Prepare mounting holes when installing trim.
  • 7. Provide adequate internal support to prevent door deformation from bolting trim to the device.

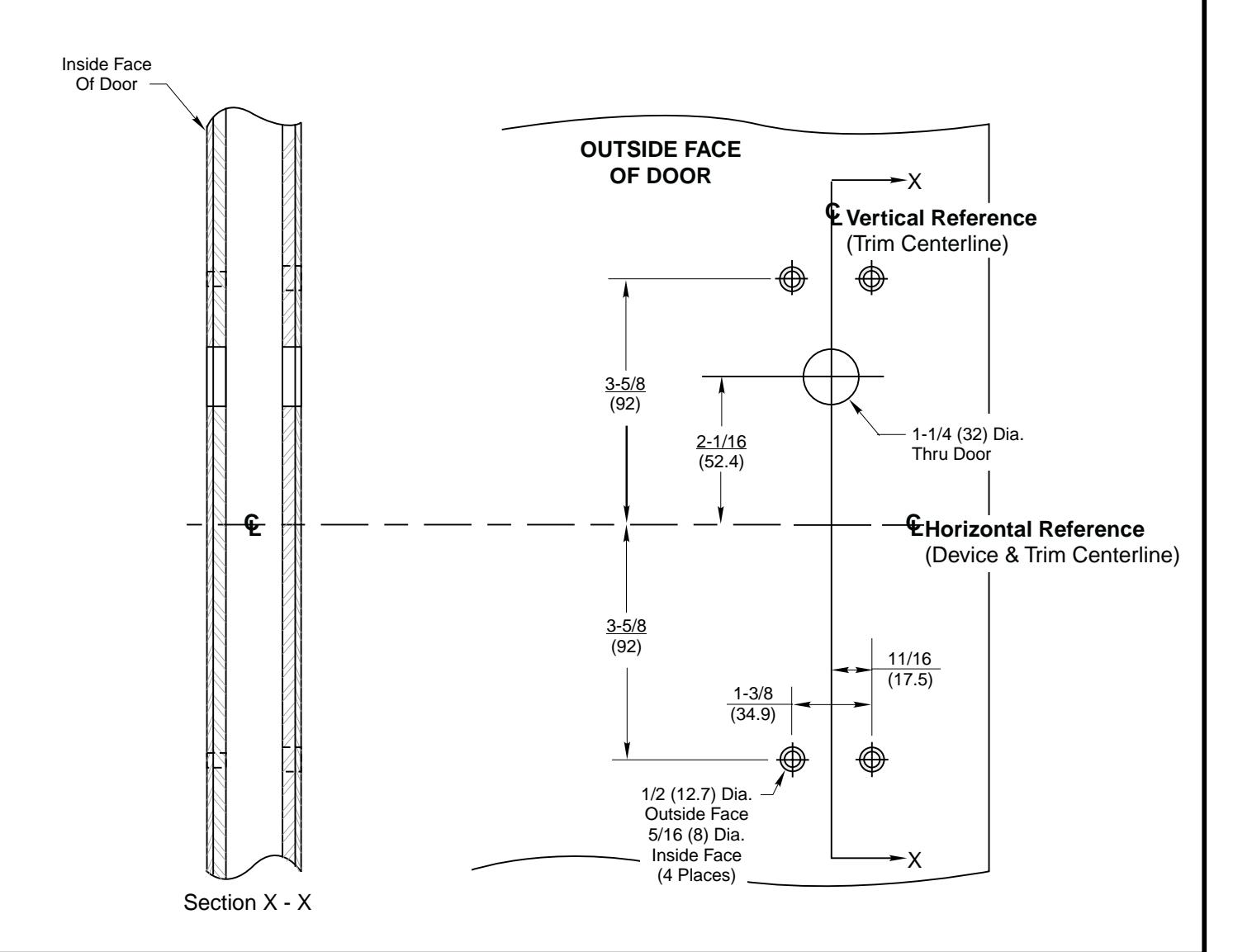

F9M57 Trim For Use With IK (INTELLIKEY) Exit Devices Metal Door Preparation ED5600 Series Mortise Exit Devices

DO NOT SCALE DRAWING SUPERSEDES

TEMPLATE NUMBER DATE T30966 11-01
