Notes:

  • 1. This template is an addition to the device template. Locate centerlines using horizontal and vertical references on device template.
  • 2. Do not scale drawing.
  • 3. Dimensions are in inches (mm).
  • 4. LHR door shown. Preparation is typical for both door hands.
  • 5. Prepare mounting holes when installing trim.

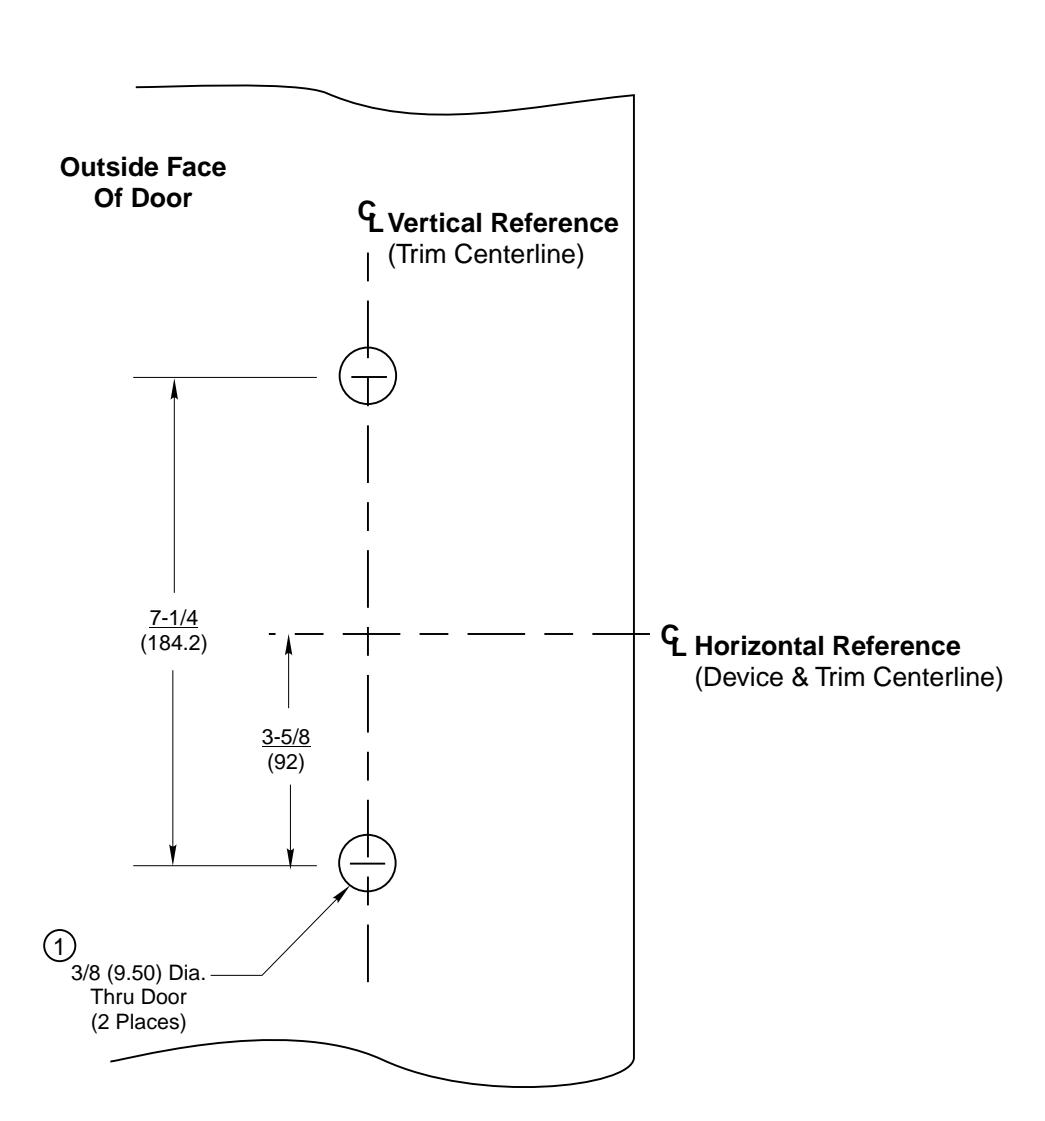

F450 Narrow Escutcheon Trim Wood or Composite Door Preparation With ED4200, ED4400 or ED4800 Series Rim and Vertical Rod Exit Devices

T30846 www.corbinrusswin.com

DO NOT SCALE DRAWING SUPERSEDES

TEMPLATE NUMBER DATE T30846-1 9-99
