Corbin Russwin F257 Trim for ED5200, ED5400, ED5800 Wide Stile Rim, SecureBolt, CVR, SVR Wood or Composite Door …_T30854

Open the original PDF document

View PDF

Notes:

  • 1. This template is an addition to the device template. Locate centerlines using horizontal and vertical references on device template.
  • 2. Do not scale drawing.
  • 3. Dimensions are in inches (mm).
  • 4. LHR door shown. Preparation is typical for both door hands.
  • 5. Provide adequate structural support to maintain door integrity during operation.
  • 6. Prepare mounting holes when installing trim.
  • 7. Dimensions given about a centerline are symmetrical.

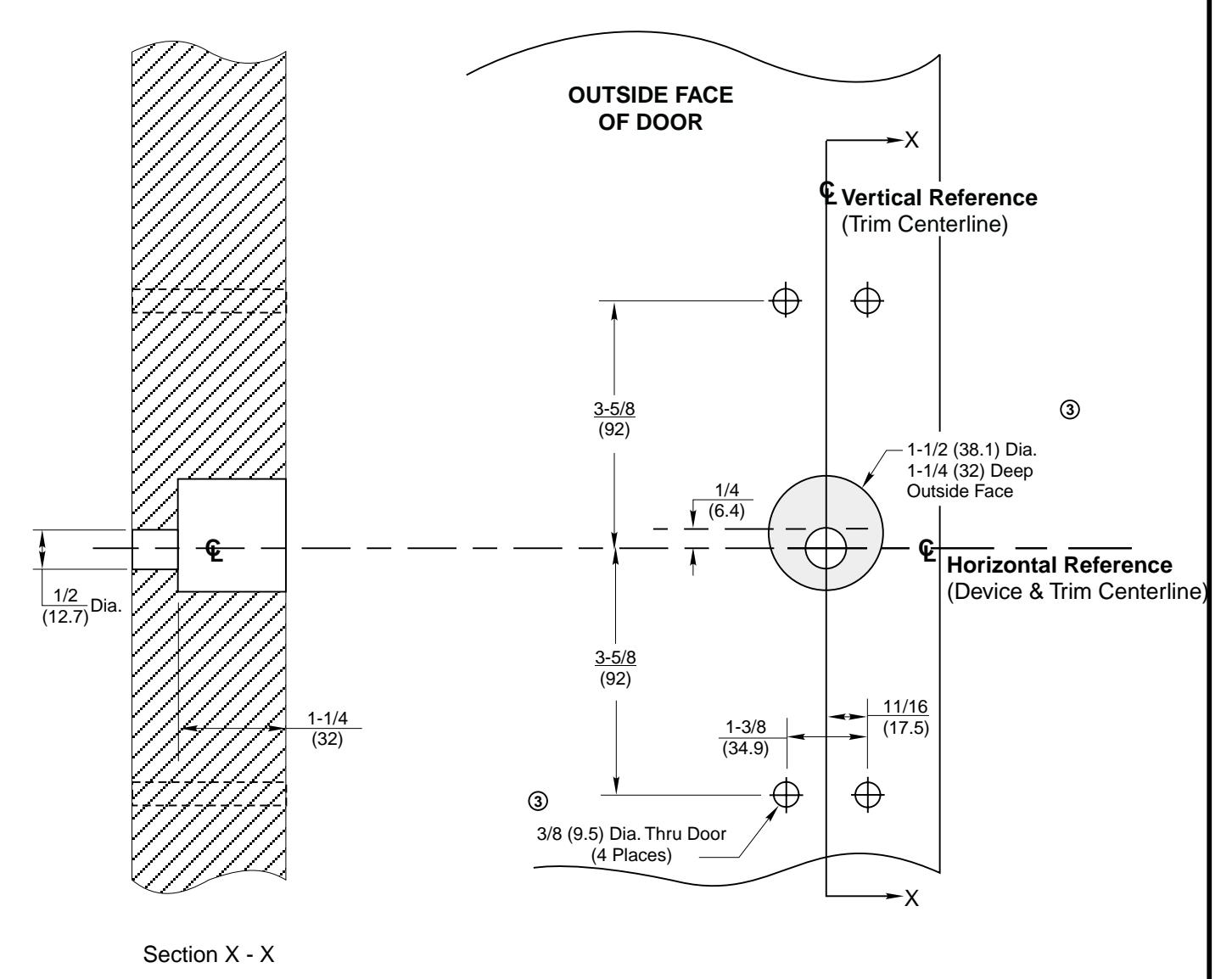

F257 Trim

Wood or Composite Door Preparation With ED5200, ED5400 or ED5800 Series Rim, and Vertical Rod Exit Devices SecureBolt,

www.corbinrusswin.com

T30854-2

DO NOT SCALE DRAWING SUPERSEDES

T30854-3 TEMPLATE NUMBER DATE

10-01
