Corbin Russwin F250 and F950 Trim for ED5200, ED5400, ED5800 Wide Stile Mortise, Rim, CVR, SVR Metal Door Templa…_T30817

Open the original PDF document

View PDF

Notes:

  • 1. This template is an addition to the device template. Locate centerlines using horizontal and vertical references on device template.
  • 2. Do not scale drawing.
  • 3. Dimensions are in inches (mm).
  • 4. LHR door shown. Preparation is typical for both door hands.
  • 5. For door reinforcement see template T30800.
  • 6. Prepare mounting holes when installing trim.
  • 7. Provide adequate internal support to prevent door deformation after trim is bolted to the device.

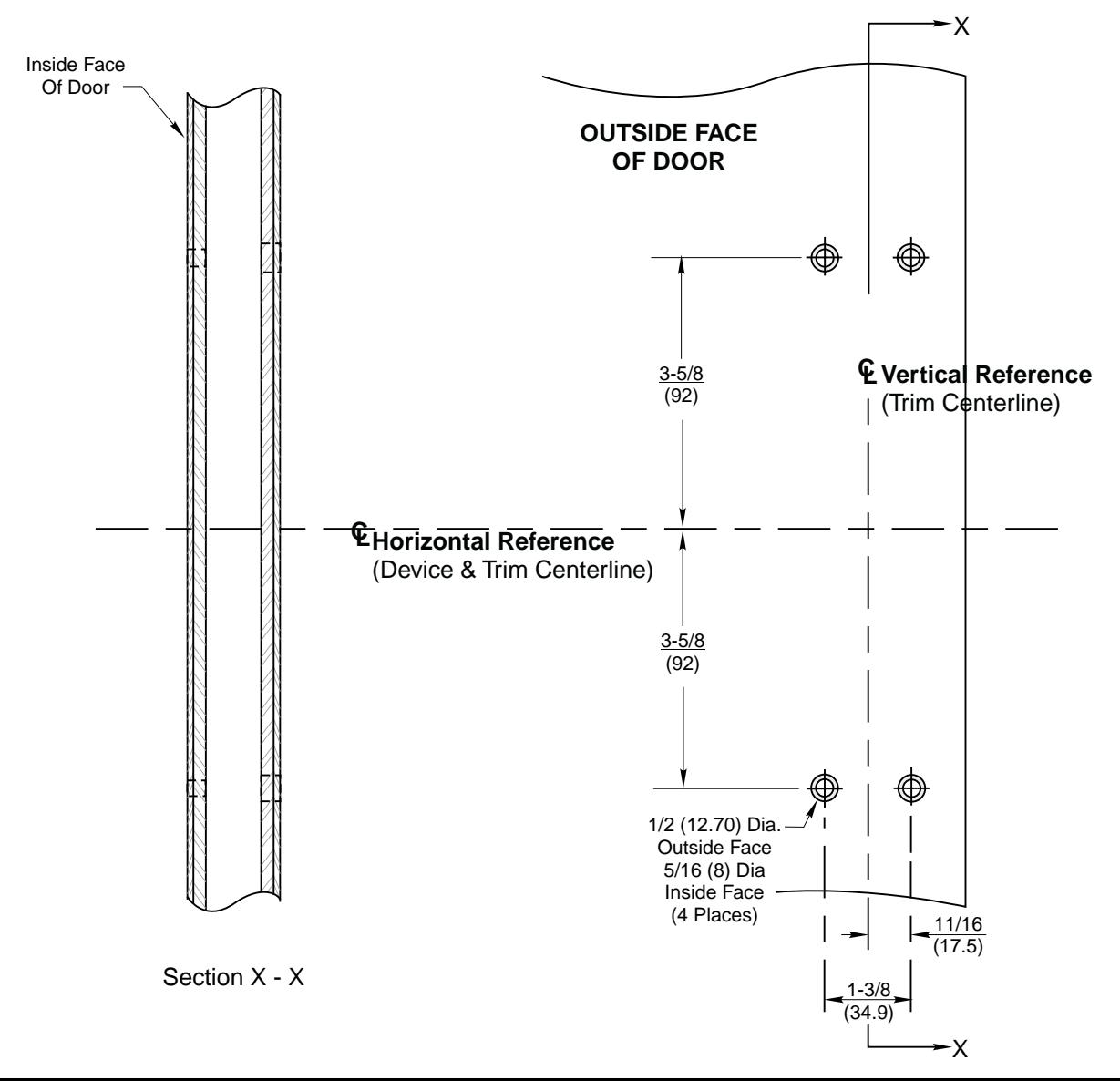

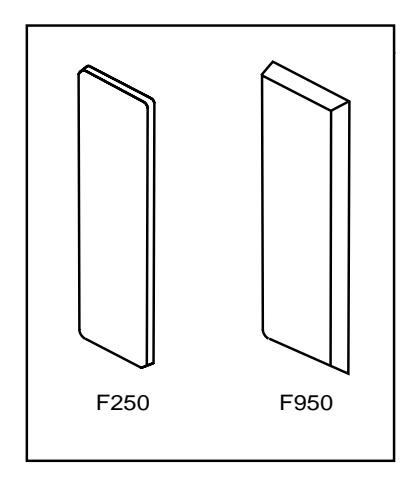

F250 & F950 Trim Metal Door Preparation With ED5200, ED5400, ED5600 or ED5800 Series Rim, Mortise and Vertical Rod Exit Devices

®

www.corbinrusswin.com

DO NOT SCALE DRAWING SUPERSEDES T30817

TEMPLATE NUMBER DATE T30817-1 9-99
