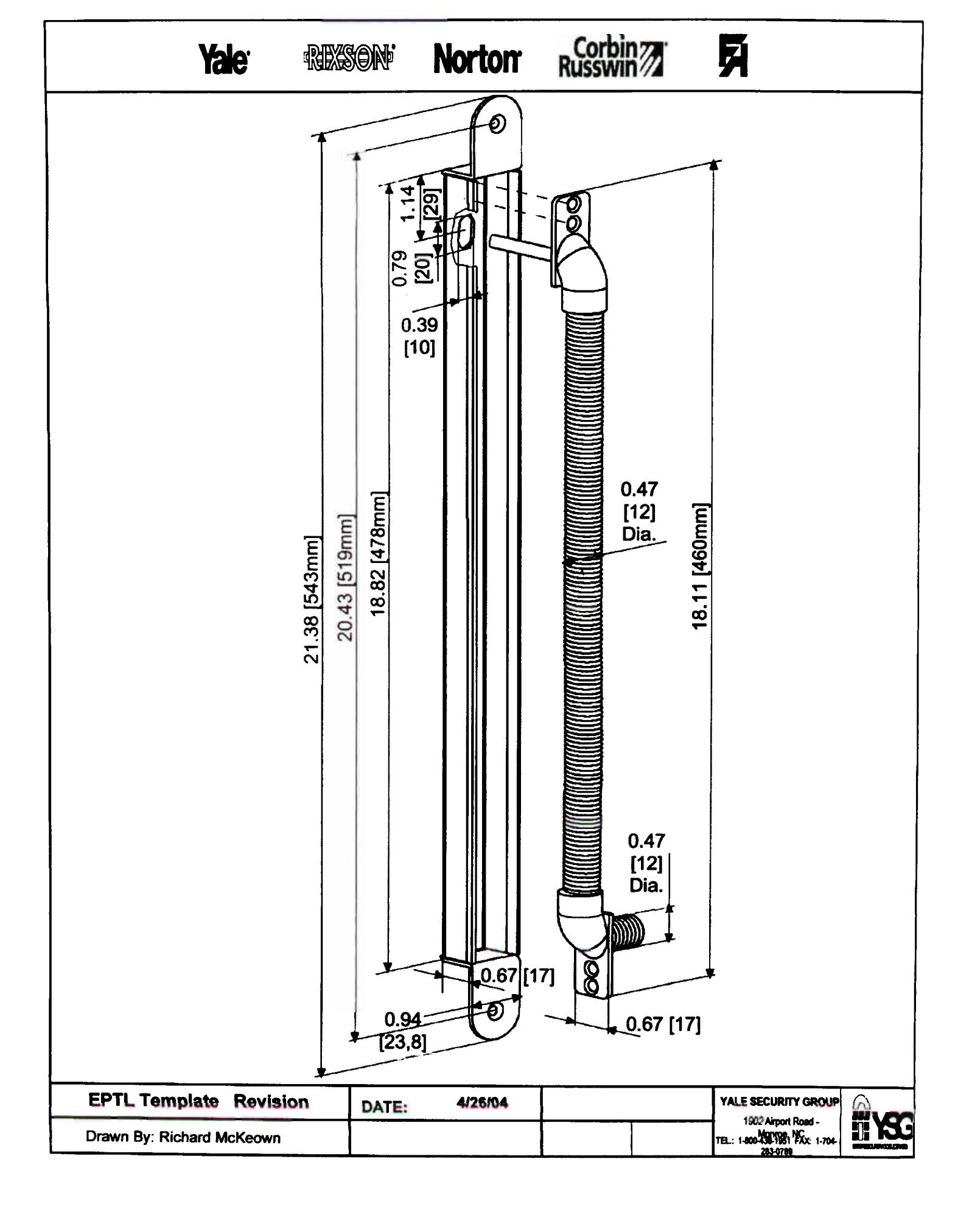

Corbin Russwin EPT, EPTL Template
Open the original PDF document
View PDF
| EPT Template Revision | DATE: 4/26/04 |
YALE SECURITY GROUP
1902 Airport Road - TEL: 1-800 1901 1811 Fax: 1-704- 283-9789 |
888 | |
|---|---|---|---|---|
| Drawn By: Richard McKeown | - |

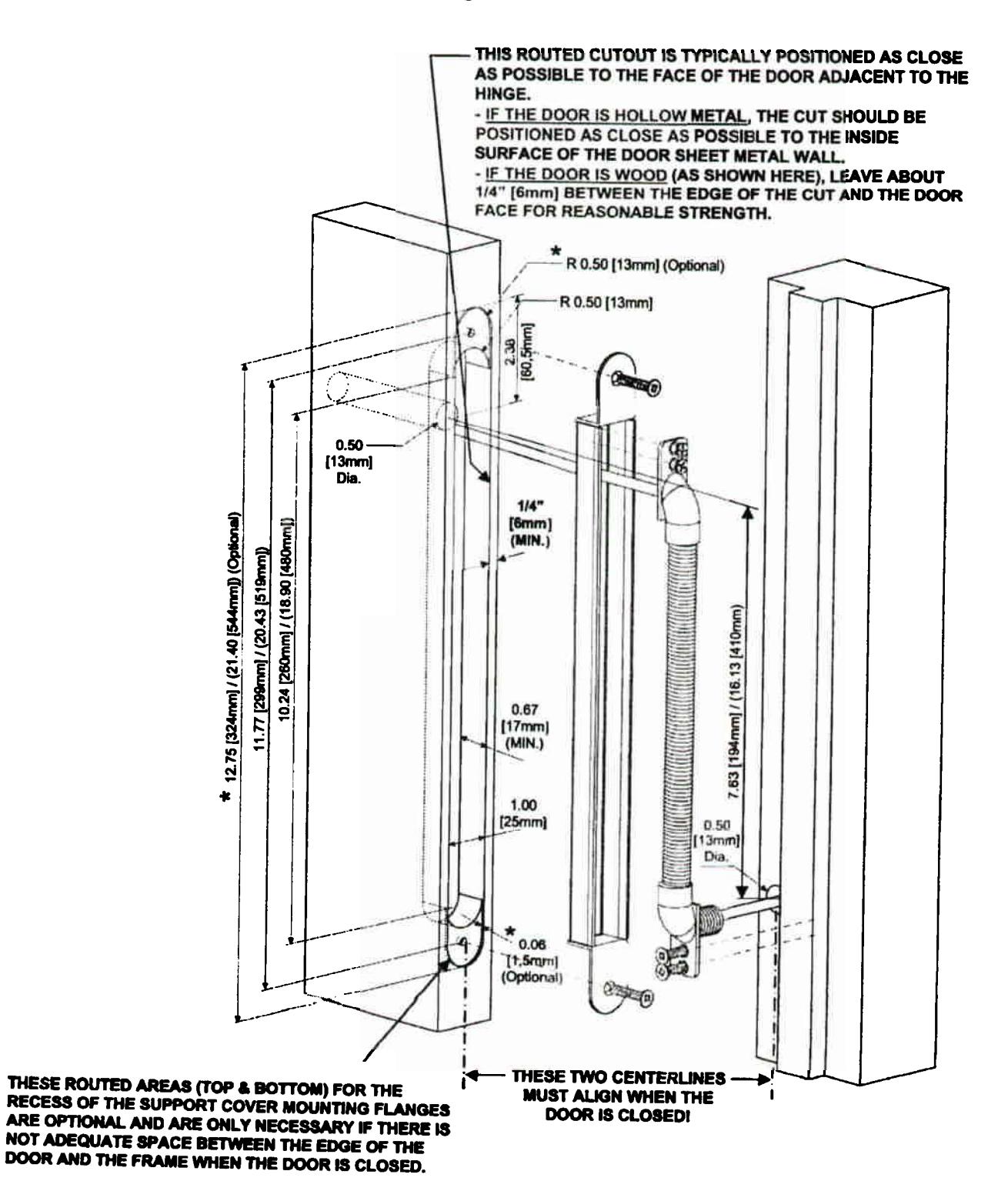

Figure 3: ROUTING DETAIL
| Routing Detail | DATE: 4/26/04 | YALE SECURITY GROUP | |
|---|---|---|---|
| Drawn By: Richard McKeown |
1902 Airport Road -
TEL: 1-806 49 1951 FXX: 1-704- 213-0789 |
||
