Corbin Russwin ED8200B Series Template_T30940-1

Open the original PDF document

NOTES:

1. For 707A and 708A (KM) Mullion Frame Preparation Template, refer to T30882.
2. For other device and strike mounting specifications, refer to appropriate single door application template.
*3. Caution: When glass bead shims are used to raise device off surface of door, refer to glass bead shim template T30494 for proper strike mounting dimensions.
4. For preparation of trim, refer to separate template.
5. Dimensions given in inches and (mm).

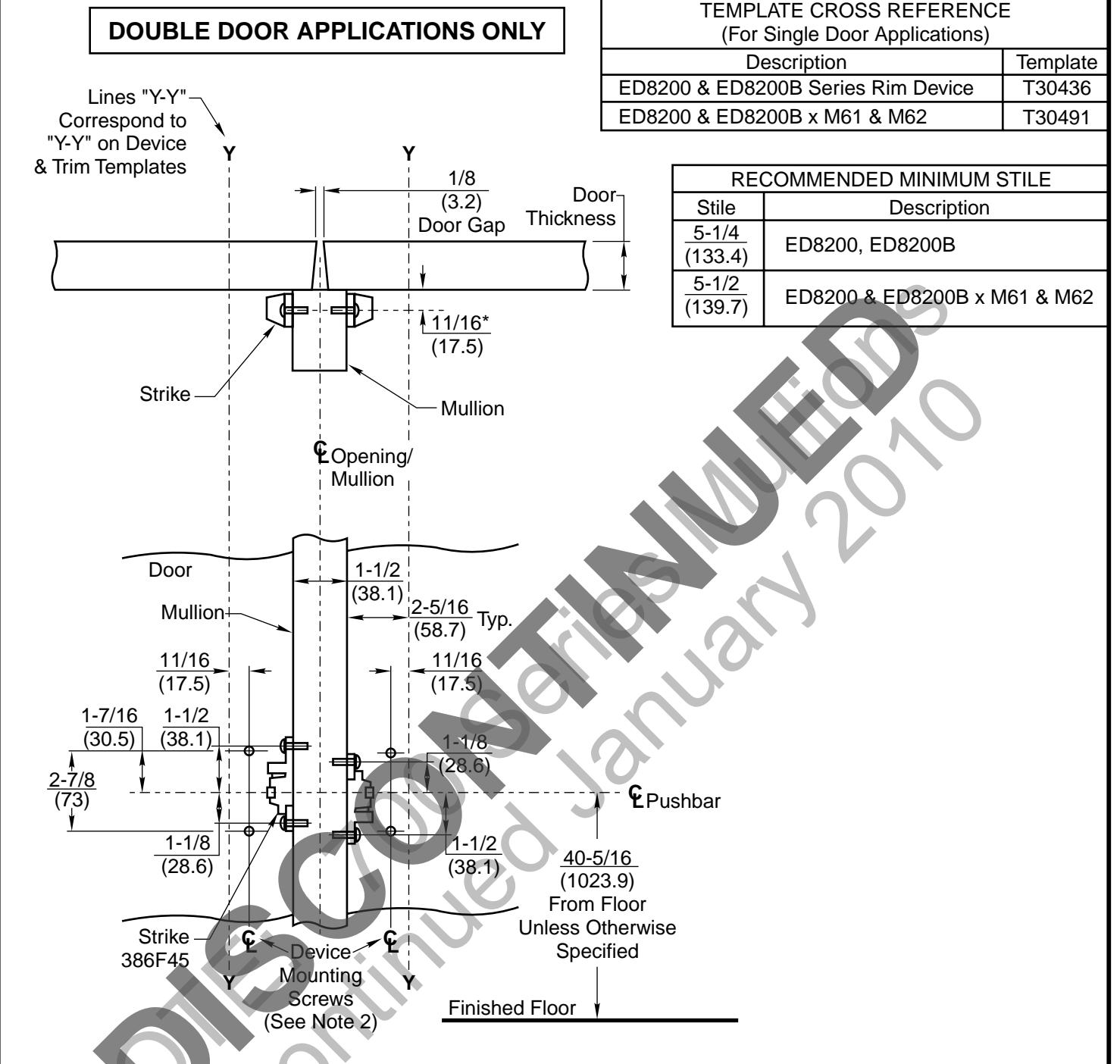

ED8200B Series Rim Fire Exit Devices Application to Metal, Wood or Composite Doors With 707A and 708A (KM) Mullion

DO NOT SCALE DRAWING

SUPERSEDES T30940 TEMPLATE NUMBER

DATE 10-05

T30940-1
