Corbin Russwin ED8200A Series Template_T30941-1

NOTES:

• 1. For 707A and 708A (KM) Mullion Frame Preparation Template, refer to T30882.
• 2. For other device and strike mounting specifications, refer to appropriate single door application template.
• *3. Caution: When glass bead shims are used to raise device off surface of door, refer to glass bead shim template T30494 for proper strike mounting dimensions.
• 4. For preparation of trim, refer to separate template.
• 5. Dimensions given in inches and (mm).

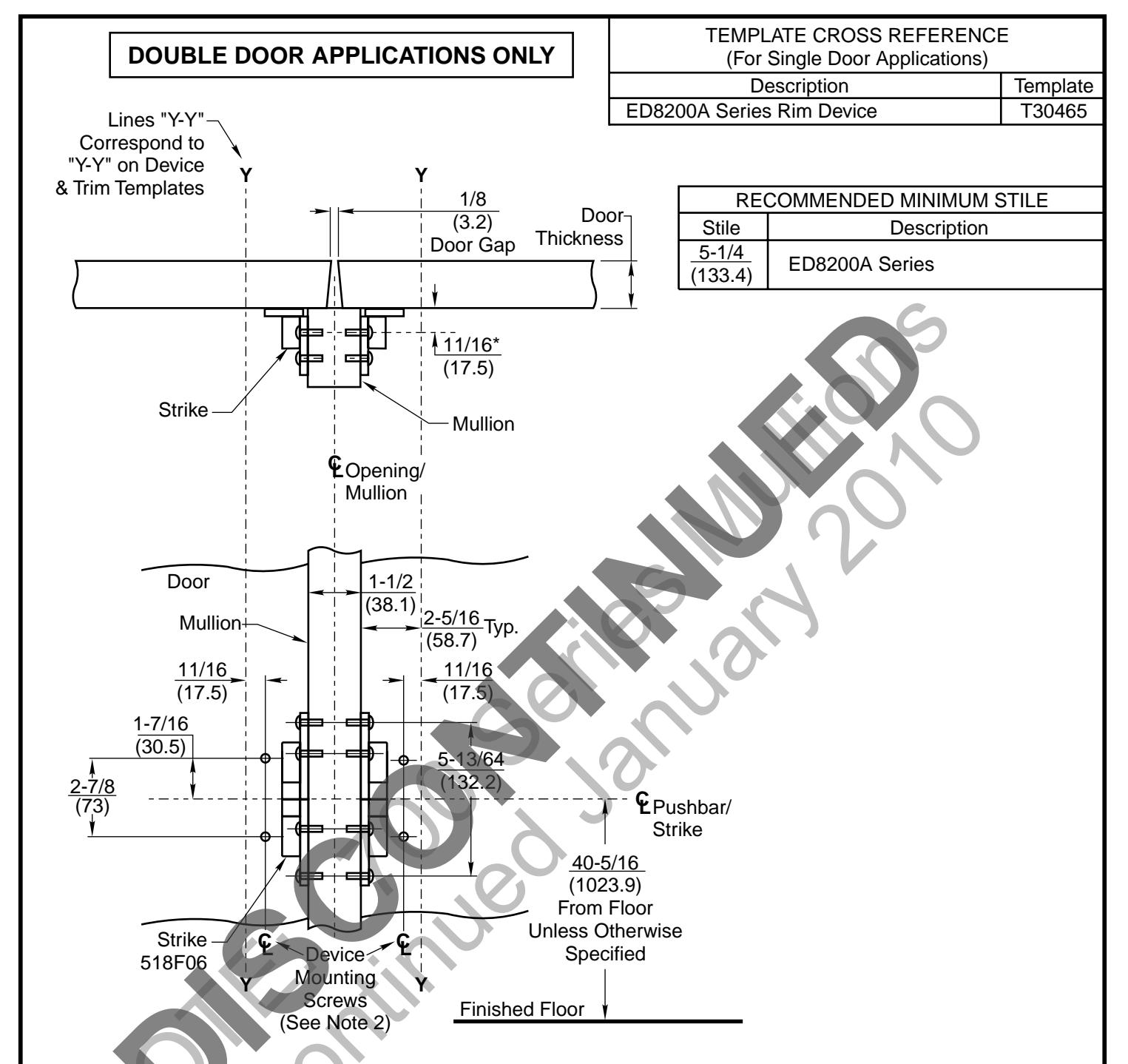

ED8200A Series Rim Fire Exit Devices Application to Metal, Wood or Composite Doors With 707A and 708A (KM) Mullion
