Corbin Russwin ED8200 Series Template_T30942
Open the original PDF document
View PDF
|
TEMPLATE CROSS REFEREN
(FOR SINGLE DOOR APPLICATIONS) |
|
|---|---|
| DESCRIPTION | TEMPLA |
| 200 SERIES RIM DEVICE | 17047 |
| DESCRIPTION | TEMPLATE |
|---|---|
| ED8200 SERIES RIM DEVICE | T30436 |
| ED8200 SERIES × M61 & M62 | [3049] |
| RECOMM | ENDED MINIMUM STILE |
|---|---|
| STILE | DESCRIPTION |
|
5-1/4
(133.4) |
ED8200 SERIES |
|
5-1/2
(139.7) |
ED8200 SERIES × M61 & M62 |
NOTES, FOR 707A (KM), 708A (KM) AND 710 (KM) MULLION FRAME PREPARATION TEMPLATE, REFER TO T30882.
Í-1/2 (38.1)
FINISHED FLOOR
£ PUSHBAR
40-5/16 (1023.9) FROM FLOOR UNLESS OTHERWISE
SPECIFIED
FOR OTHER DEVICE AND STRIKE MOUNTING SPECIFICATIONS, REFER TO APPROPRIATE SINGLE ODOR APPLICATION TEMPLATE.
MOUNTING SCREWS (SEE NOTE 2)
[CAUTION:] WHEN GLASS BEAD SHIMS ARE USED TO RAISE DEVICE OFF SURFACE DF DDDR, REFER TO GLASS BEAD SHIM TEMPLATE 130494 FOR PROPER STRIKE MOUNTING DIMENSIONS.
- FOR PREPARATION OF TRIM, REFER TO SEPARATE TEMPLATE.
- DIMENSIONS GIVEN IN INCHES AND (MM).
(36.5)
1-1/8 (28.6)
STRIKE
2-7/8
(73)

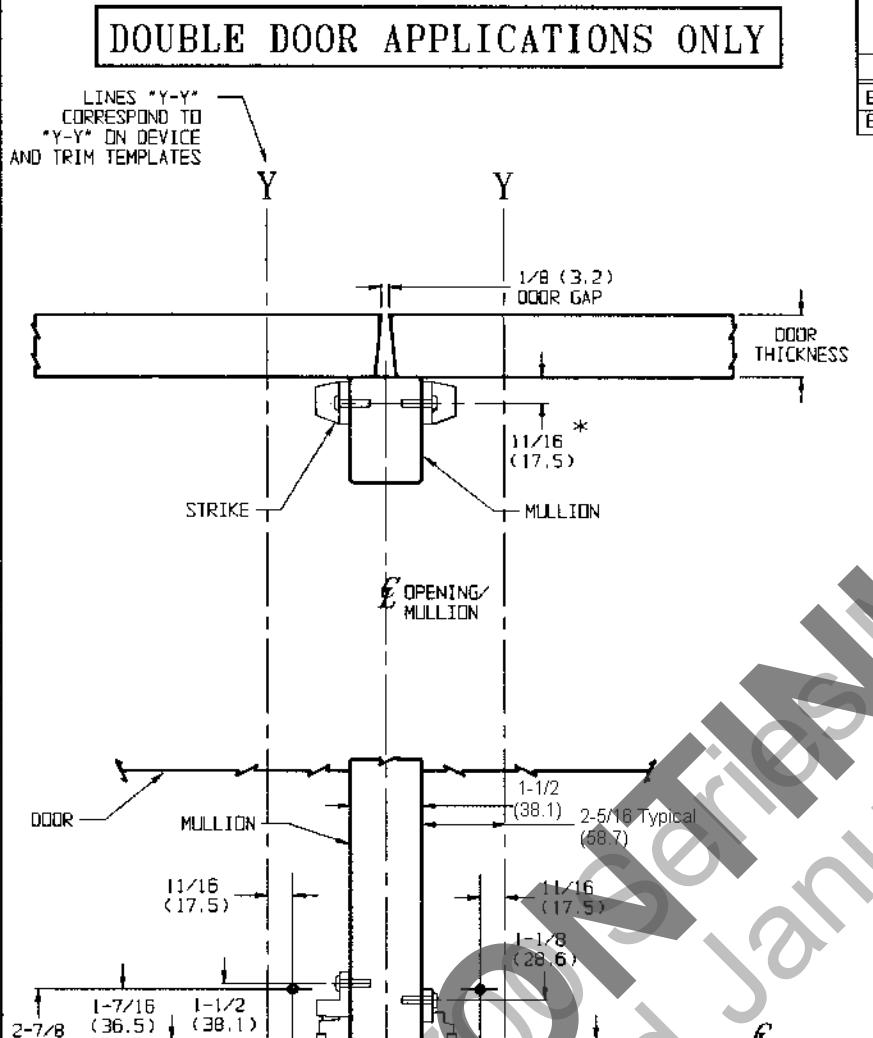

ED8200 Series Rim Panic Exit Devices Application to Metal, Wood, or Composite Doors With 707A (KM), 708A (KM), or 710 (KM) Mullion
www.corbinrusswin.com Do Not Scale Drawing Template Number T30942 9/99
