Corbin Russwin ED7800(A) Narrow Stile CVR Door Face Mounting Metal Doors Template_T30625

RESPONSIBILITY

DOOR AND FRAME MANUFACTURERS ARE RESPONSIBLE FOR PROVIDING ADEQUATE CONSTRUCTION OR REINFORCEMENTS FOR PROPER INSTALLATION OF HARDWARE SHOWN. ALL ARCHITECTURAL BUILDERS HARDWARE MUST BE INSTALLED ON PROPERLY REINFORCED DOORS AND FRAMES, REGARDLESS OF TYPE, MATERIAL, OR METHOD OF CONSTRUCTION.

ED7800 Series ED7800A Series

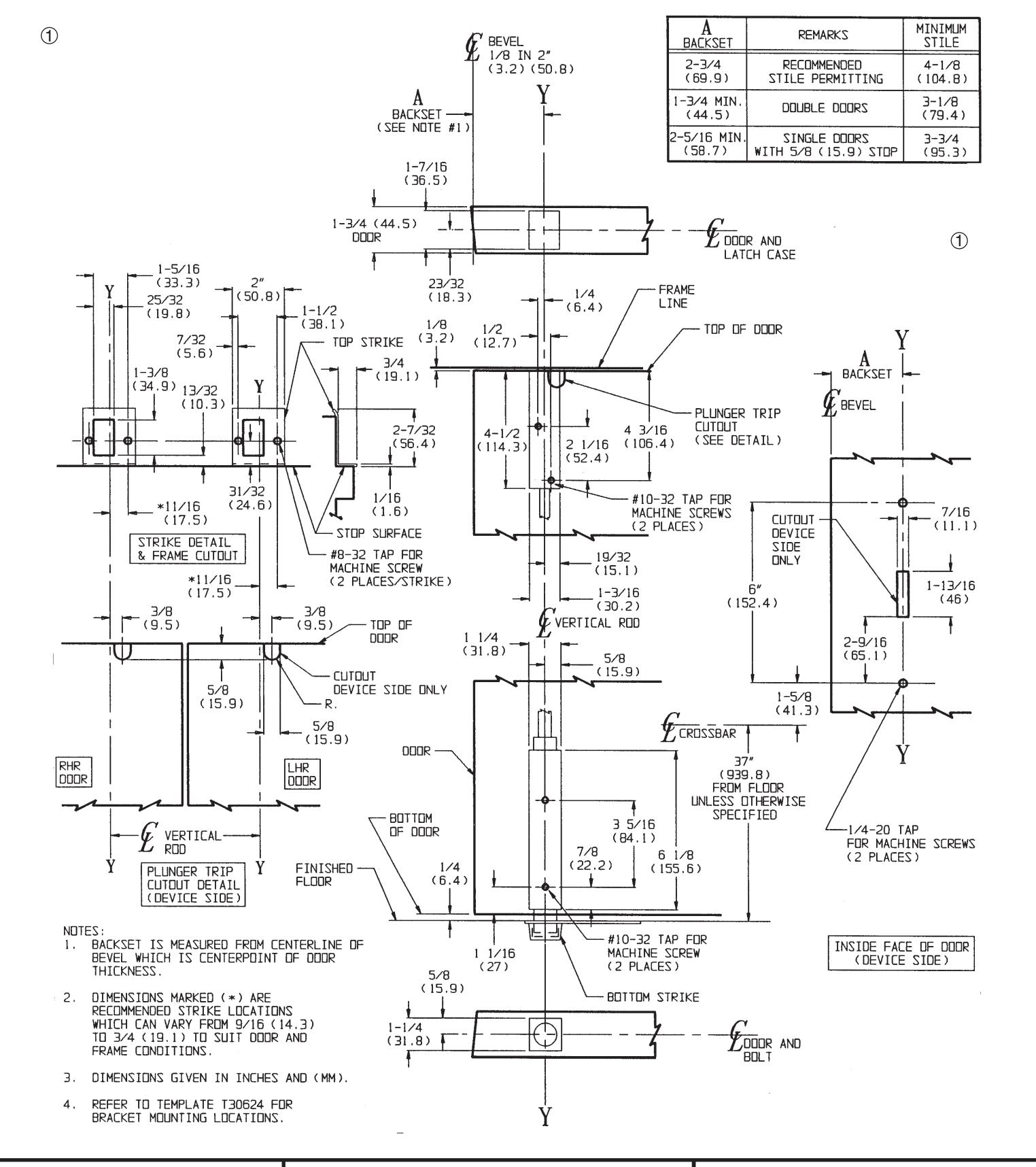

Crossbar Narrow Stile Concealed Vertical Rod Device Door Face Mounting - Metal Doors)

Corbin 70° Russwin 70°

ASSA ABLOY

www.corbinrusswin.com
