Corbin Russwin ED7200 Narrow Stile Rim S04 Strike Template_T30608

RESPONSIBILITY

Door and Frame Manufacturers are responsible for providing adequate construction or reinforcements for proper installation of hardware shown. All architectural builders hardware must be installed on properly reinforced doors and frames, regardless of the type, material, or method of construction.

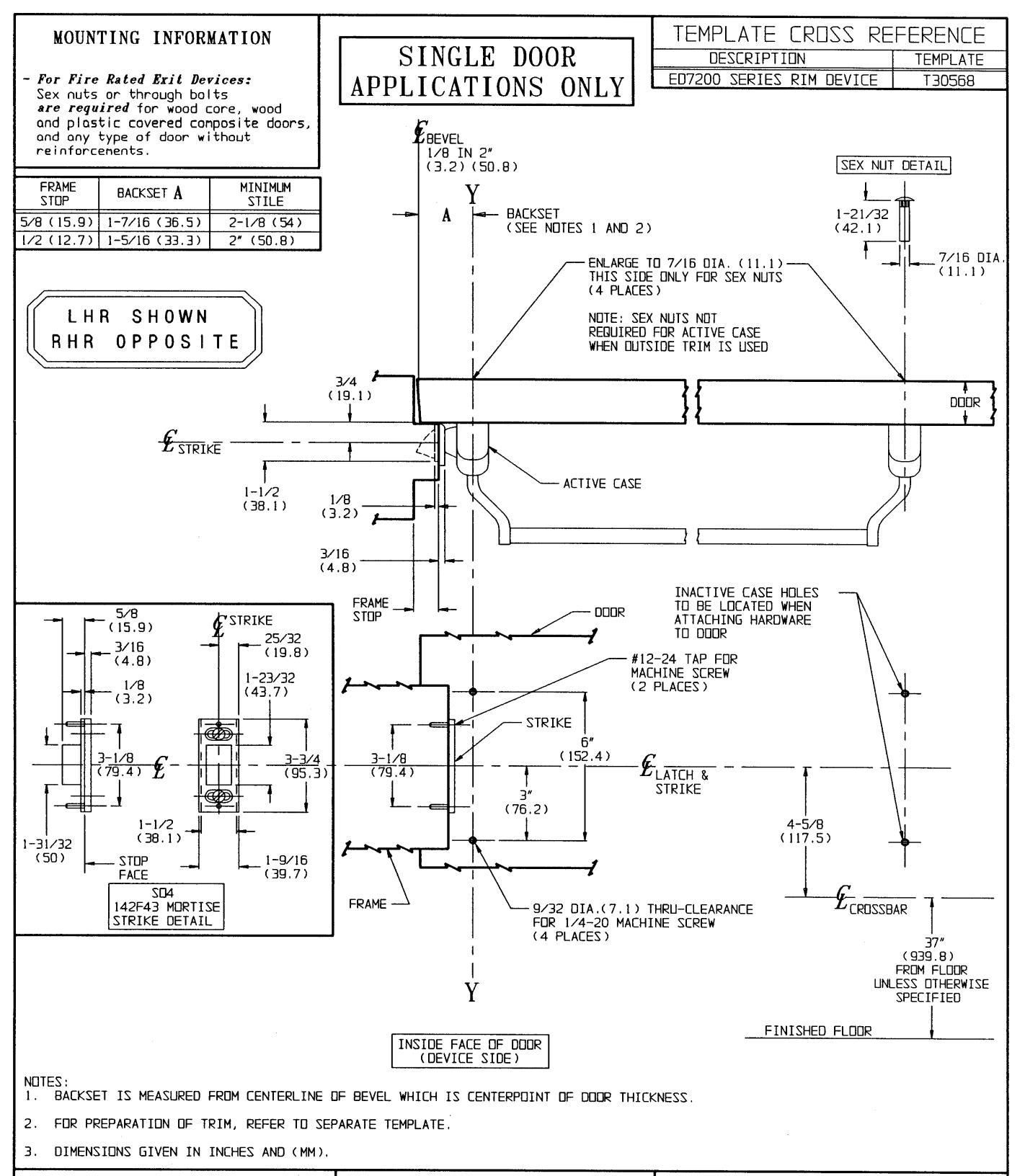

ED7200 SERIES BY SO4

CROSSBAR NARROW STILE RIM DEVICE BY MORTISE STRIKE

WWW.corbinrusswin.com DO NOT SCALE DRAWING SUPERSEDES VT30364 DR. BTH

TE 0 3 / 2 4 / 9 3 NAMBER T 3 0 6 0 8
