Corbin Russwin ED6200A Series Template_T30944

TEMPLATE CROSS REFERENCE (FOR SINGLE DOOR APPLICATIONS) DESCRIPTION TEMPLATE

ED6200A SERIES RIM DEVICE T30508

Notes:

• 1. For 707A (KM) and 708A (KM) Mullion Frame Preparation Template, Refer to T30882.
• For other device and strike mounting specifications, refer to single door application template.
• 3. For preparation of trim, refer to separate template.
• 4. Dimensions given in inches (mm).
• 5. ED6200A Series Fire Exit Doors up to 72" High. (Cut 708A (KM) Mullion to suit)

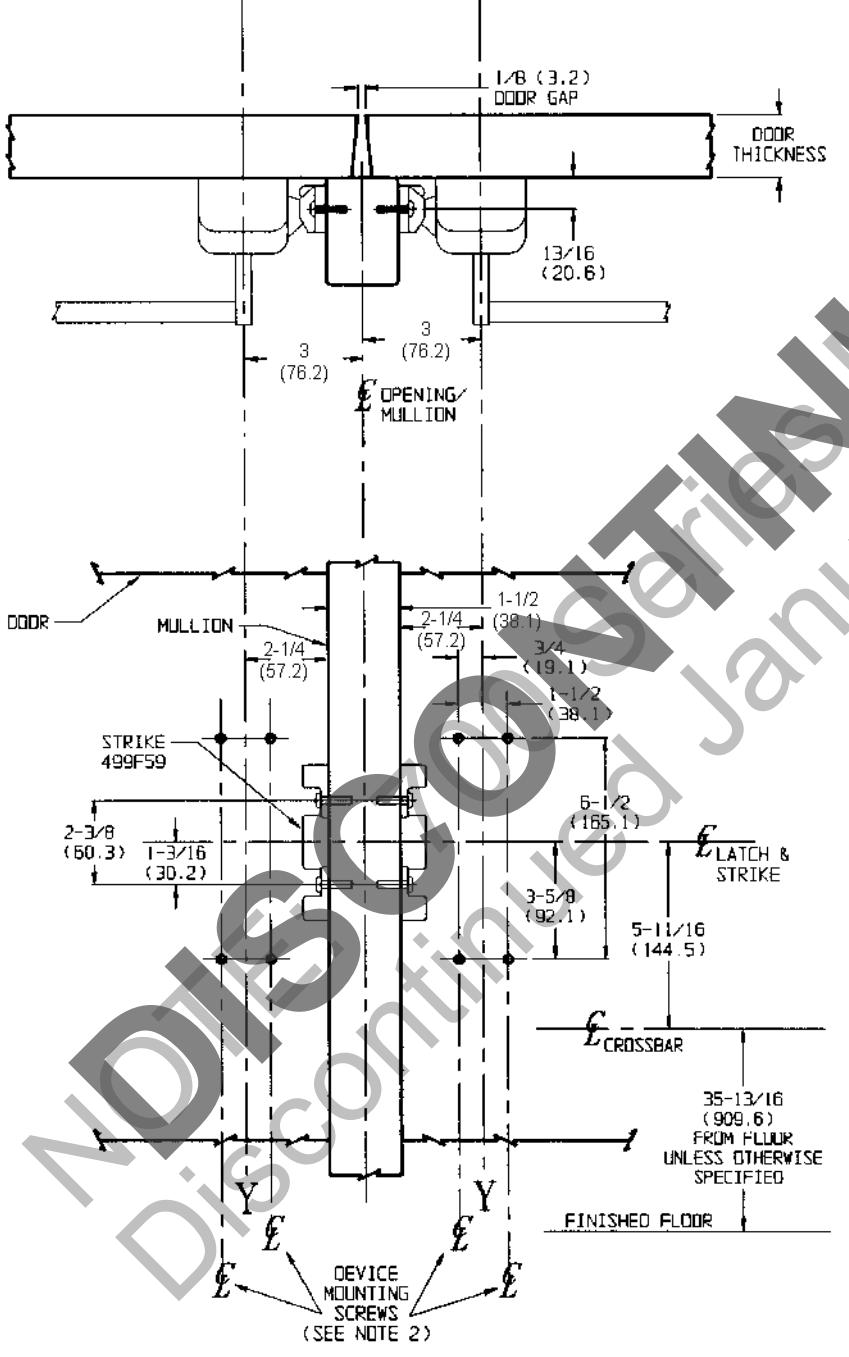

ED6200A Series Rim Fire Exit Devices Application to Metal, Wood or Composite Doors With 707A (KM) or 708A (KM) Mullion

www.corbinrusswin.com

SUPERSEDES Template Number

Do Not Scale Drawing

T30944

9/99
