Corbin Russwin ED6200 Series Template_T30943
Open the original PDF document
View PDF
| TEMPLATE CROSS REFERENCE (FOR SINGLE DOOR APPLICATIONS) | |
|---|---|
| DESCRIPTION | TEMPLATE |
| 6D6200 SERIES RIM DEVICE | 130566 |
Notes:
- 1. For 707A (KM), 708A (KM) or 710 (KM) mullion frame preparation template, refer to T30882.
- 2. For other device and strike mounting specifications, refer to appropriate single door application template.
- 3. For preparation of trim, refer to separate template.
- 4. Dimensions given in inches (mm).

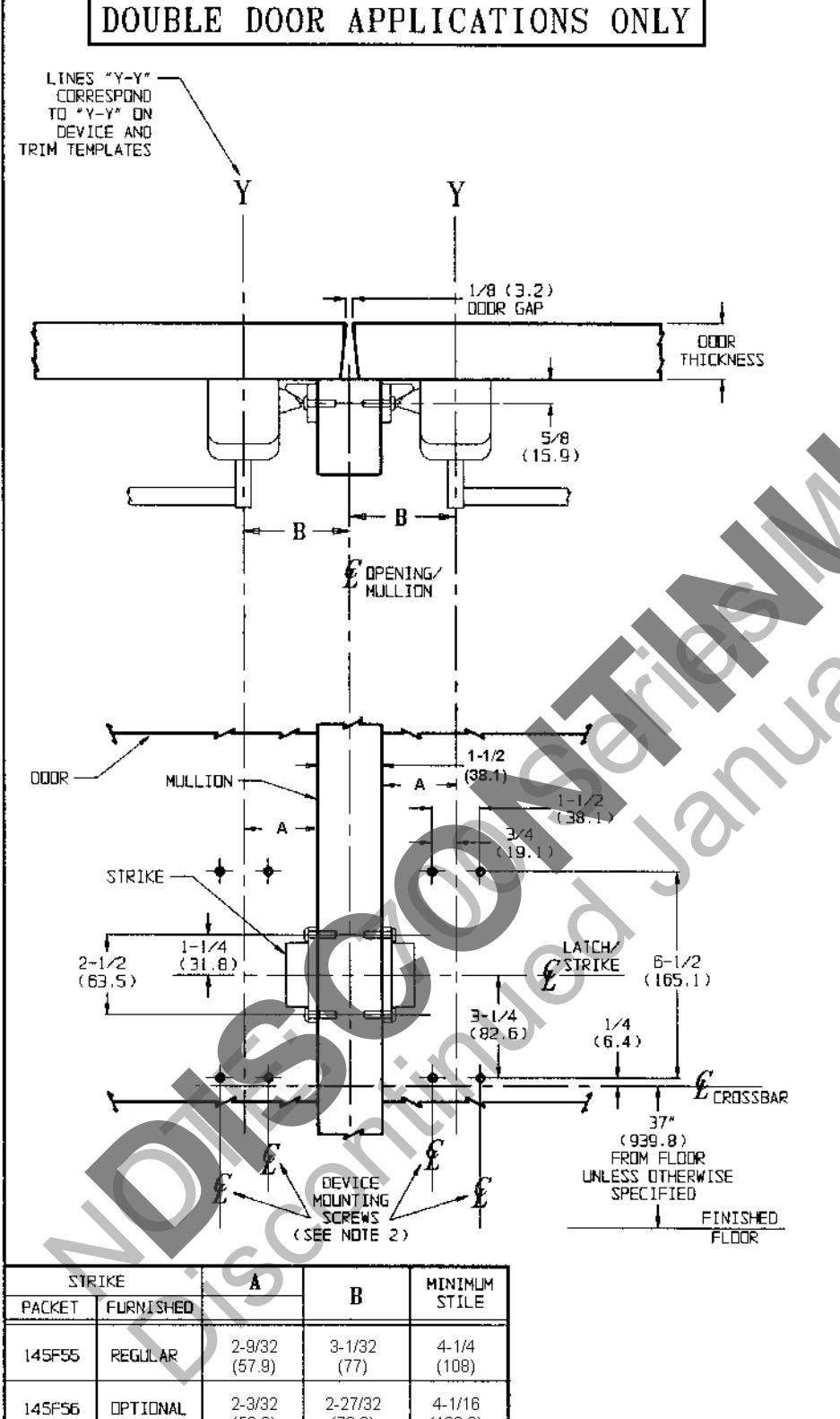

ED6200 Series Rim Panic Exit Devices Application to Metal, Wood or Composite Doors With 707A (KM), 708A (KM), or 710 (KM) Mullions
(103.2)
(72.2)
(53.2)
202
www.corbinrusswin.com
SUPERSEDES Do Not Scale Drawing Template Number T30943
9/99
