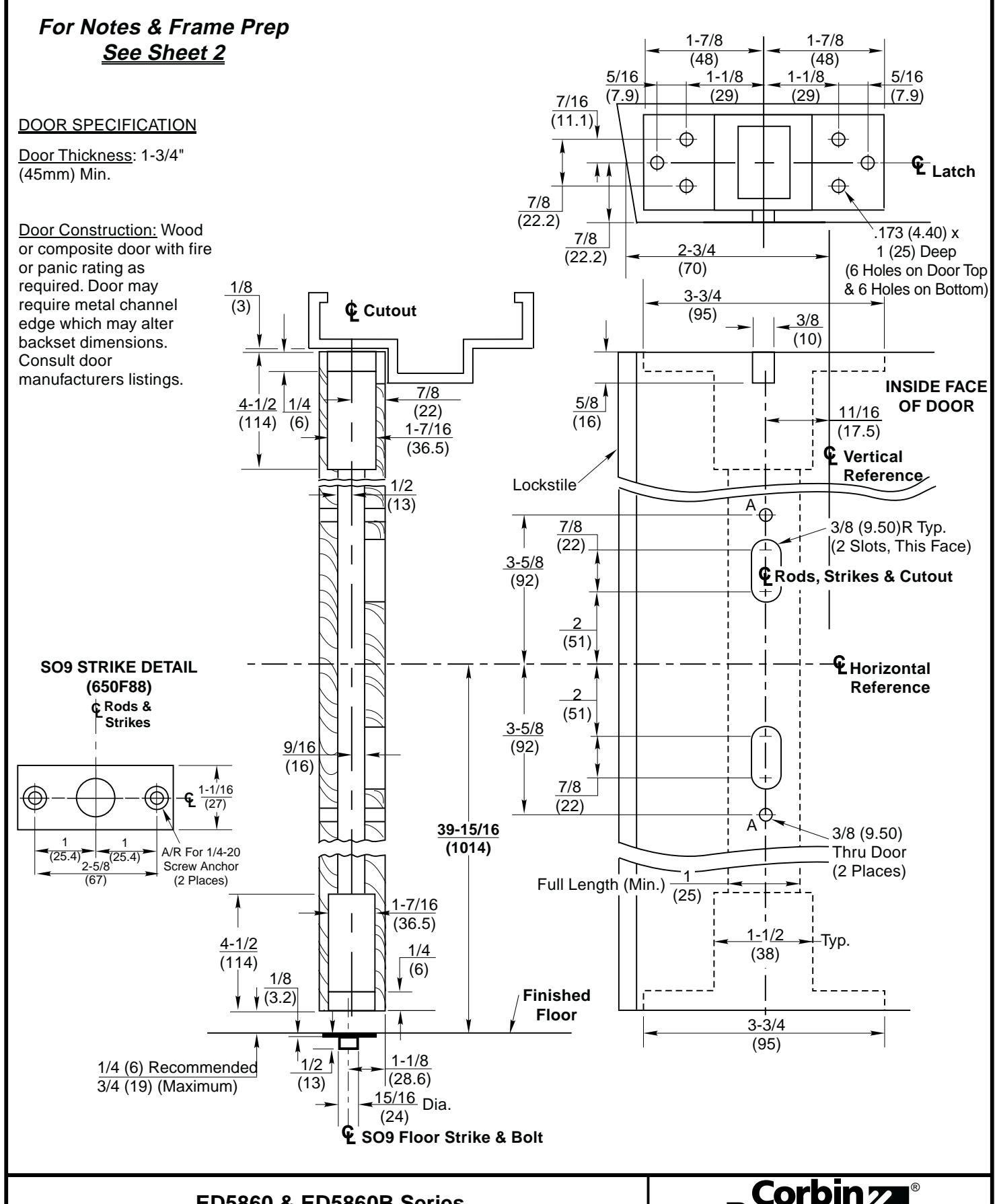

ED5860 & ED5860B Series Concealed Vertical Rod Exit Devices

Application for Wood Door & Metal Frame with Optional SO9 Floor Strike

www.corbinrusswin.com SUPERSEDES T30907-2 DO NOT SCALE DRAWING

SHEET 1 of 2 T30907-3

681F77 Top Strike Preparation (See Note 6) Dust Cover Reinforcements (By Frame Manufacturer) 1(25)min. -By Frame Manufacturer 1(25) Min. (30.2)3/32 RHR Door <u>3/4</u> (2.4)LHR Door (19) Inside Face Inside Face 1-1/2 (38.1)Latch & Latch & Strike Strike 4 VERTICAL REFERENCE 11/16 RHR Door Bevel C (17.5)(or square edge of door) LHR Door Bevel For Door Prep (or square edge of door) See Sheet 1 (3) 10-32 TAP (2 Places) 2-1/16 2-1/16 (52)(52)1-5/8 CUTOUT (41.3)(51)15/16(24) (Note 9) $\oplus$ Latch, Strike & Plane of Section Shown Above<sup>1</sup>

1. Do not scale drawing.
2. Dimensions are in inches (mm).
3. Preparation is typical for both hands.
4. Minimum door stile width: 4-1/2 (114).
5. Prepare mounting holes when installing the device.
Drawing shows elevation (frame bisected on strike center), bottom view looking up and side view.
Provide adequate structural support to maintain door integrity after device installation with power tools, door use, or abuse.

This template does not cover devices without bottom rod (M55 Option).
Door located in frame for door silencers. If not used, compensate this dimension to seat the door against the stop without rattle.
Device mount to hinge stile (not shown) requires hole location and preparation during device installation. Door structural requirements are similar for both stiles.
11. For outside trim preparation see appropriate trim template.
12. For electrical devices (suffixes M91, M92, M93, M94, M97) also see template T30890.
13. Bottom bolt should retract to 5/32 (4.0) above floor strike. Floor coverings in the door path must be laid accordingly.

ED5860 & ED5860B Series Concealed Vertical Rod Exit Devices

Application for Wood Door & Metal Frame with Optional SO9 Floor Strike

UPERSEDES T30907-2 DO NOT SCALE DRAWING

TEMPLATE NO. T30907-3 SHEET 2 of 2 DATE 1-02
