ED5860 & ED5860B Series Concealed Vertical Rod Exit Devices

Application for Metal Door and Frame With 1/2" Threshold and SO9 Optional Floor Strike

www.corbinrusswin.com

SHEET T30903-3 1 of 2 T30903-2 1-02 DO NOT SCALE DRAWING SUPERSEDES TEMPLATE NO. DATE

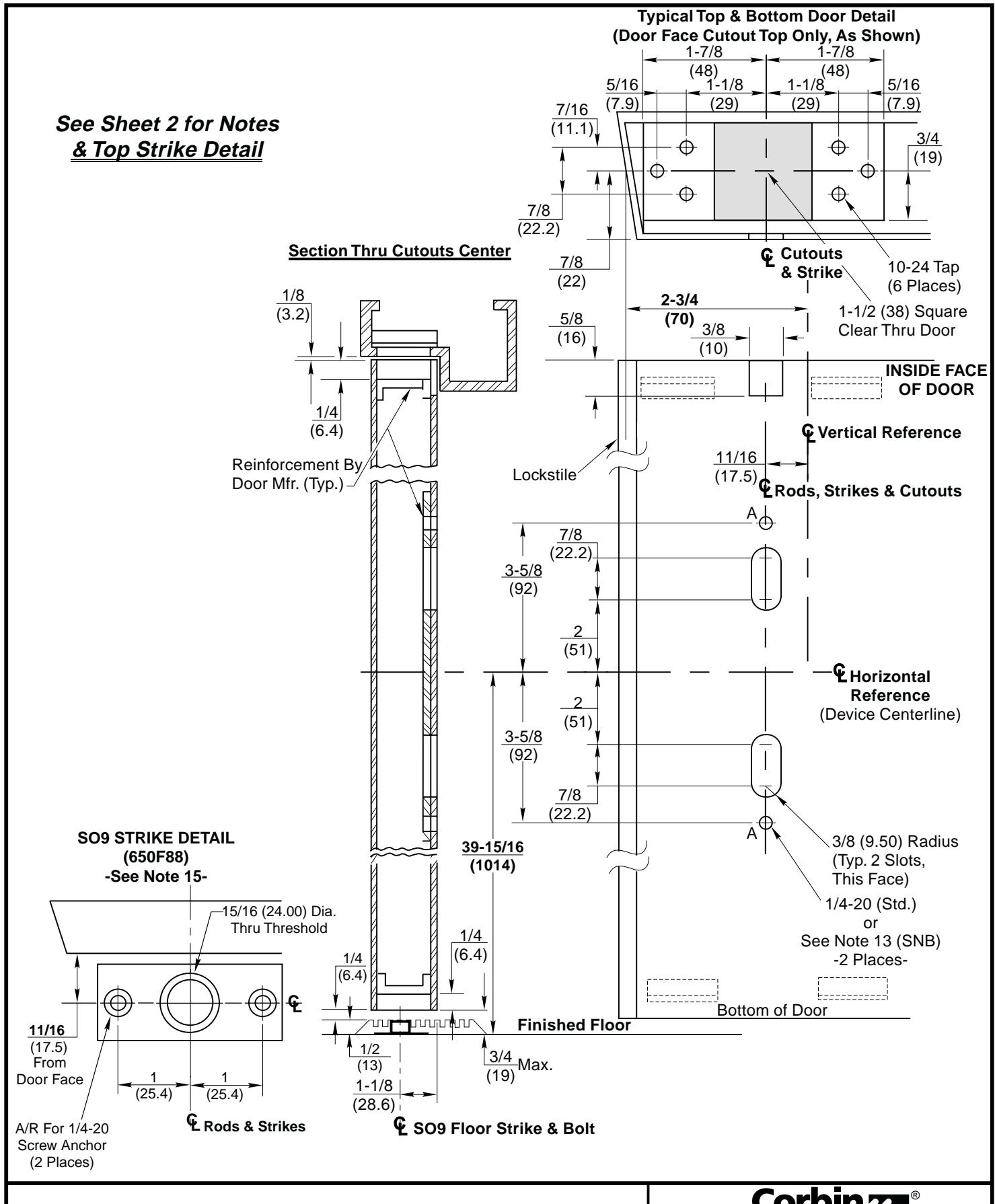

681F77 Top Strike Preparation (See Note 6) Dust Cover Reinforcements (By Frame Manufacturer) 1(25)min. By Frame Manufacturer 1(25) Min. (30.2)3/32 RHR Door (2.4) LHR Door (19) Inside Face Inside Face 1-1/2 (38.1)Latch & Latch & Strike Strike 坐VERTICAL REFERENCE 11/16 RHR Door Bevel C (17.5)(or square edge of door) LHR Door Bevel For Door Prep (or square edge of door) See Sheet 1 10-32 TAP (2 Places) 2-1/16 2-1/16 (52)(52)1-5/8 CUTOUT (41.3)(51)15/16(24) (Note 9) Œ Latch, Strike & Plane of Section Shown Above

Notes:

  • 1. Do not scale drawing.
  • 2. Dimensions are in inches (mm).
  • 3. Preparation is typical for both hands.
  • 4. Minimum door stile width: 4-1/2 (114).
  • 5. Prepare mounting holes when installing the device.
  • Drawing shows elevation (frame bisected on strike center), bottom view looking up and side view.
  • Provide adequate structural support to maintain door integrity after device installation with power tools, door use, or abuse.
  • 8. For recommended door reinforcements see template T30800.

  • 9. Door located in frame for door silencers. If not used, compensate this dimension to seat the door against the stop without rattle.
  • Device mount to hinge stile (not shown) requires hole location and preparation during device installation.
  • 11. For outside trim preparation see appropriate trim template.
  • For electrical devices (suffixes M91, M92, M93, M94, M97) also see template T30890.
  • Holes for optional SNB (Required for unreinforced doors): 9/32 (7.00) dia., inside door face; 3/8 (9.50) dia., outside door face.
  • 14. Maximum thickness 5/32 (4.0) when outside escutcheon trim is used.
  • 15. Bottom bolt should retract to 1/8 (3.2) above floor strike. Floor coverings in the door path must be laid accordingly.

ED5860 & ED5860B Series Concealed Vertical Rod Exit Devices

Application for Metal Door and Frame With 1/2" Threshold and SO9 Optional Floor Strike

UPERSEDES T30903-2 DO NOT SCALE DRAWING

T30903-3 SHEET 2 of 2 DATE 1-02
