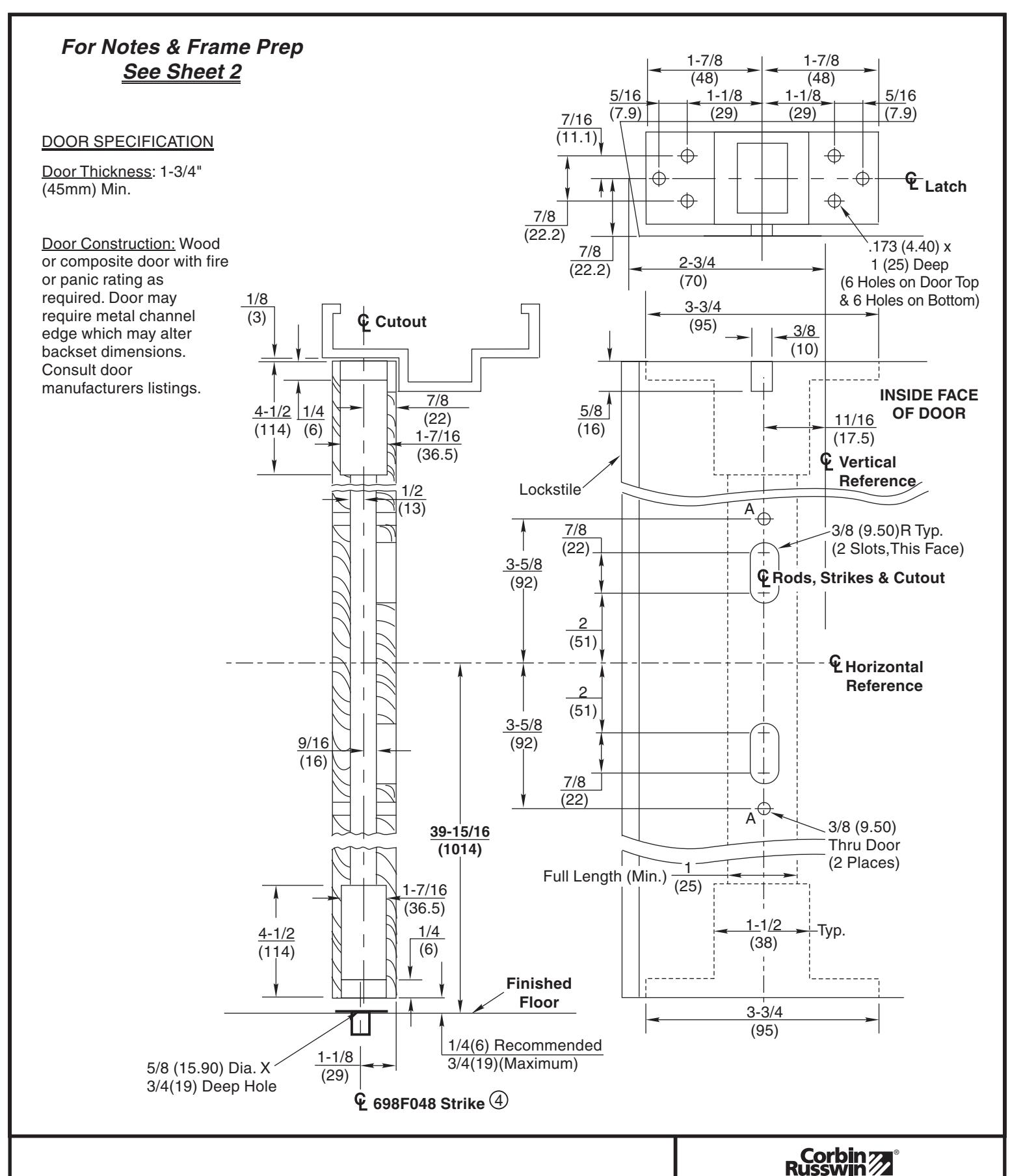

ED5860 & ED5860B Series Concealed Vertical Rod Exit Devices

Application for Wood Door with Metal Frame & 698F048 Floor Strike

ASSA ABLOY www.corbinrusswin.com SUPERSEDES T30905-3 DO NOT SCALE DRAWING TEMPLATE NUMBER T30905-4 SHEET 1 of 2 DATE 05-09

681F77 Top Strike Preparation (See Note 6) Reinforcements (By Frame Manufacturer) 1(25)min. By Frame Manufacturer 1-3/16 1(25) Min. (30.2) RHR Door LHR Door (19) Inside Face Inside Face (38.1)Latch & Latch & Strike Strike EVERTICAL REFERENCE 11/16 RHR Door Bevel C (or square edge of door) For Door Prep LHR Door Bevel (or square edge of door) See Sheet 1 10-32 TAP (2 Places) 2-1/16 2-1/16 (52)(52)1-5/8CUTOUT (41.3)(51)15/16(24) (Note 9) ะค Latch, Strike & Plane of Section Shown Above

Notes:

  • 1. Do not scale drawing.
  • 2. Dimensions are in inches (mm).
  • 3. Preparation is typical for both hands.
  • 4. Minimum door stile width: 4-1/2 (114).
  • 5. Prepare mounting holes when installing the device.
  • 6. Drawing shows elevation (frame bisected on strike center), bottom view looking up and side view.
  • Provide adequate structural support to maintain door integrity after device installation with power tools, door use, or abuse.

  • This template does not cover devices without bottom rod (M55 Option).
  • Door located in frame for door silencers. If not used, compensate this dimension to seat the door against the stop without rattle.
  • Device mount to hinge stile (not shown) requires hole location and preparation during device installation. Door structural requirements are similar for both stiles.
  • 11. For outside trim preparation see appropriate trim template.
  • 12. For electrical devices (suffixes M91, M92, M93, M94, M97) also see template T30890.
  • 13. Bottom bolt should retract to 5/32 (4.0) above floor strike. Floor coverings in the door path must be laid accordingly.

ED5860 & ED5860B Series Concealed Vertical Rod Exit Devices

Application for Wood Door with Metal Frame & 698F048 Floor Strike

ASSA ABLOY www.corbinrusswin.com SUPERSEDES T30905-3 DO NOT SCALE DRAWING TEMPLATE NUMBER T30905-4 SHEET 2 of 2 DATE T30905-4 2 05-09
