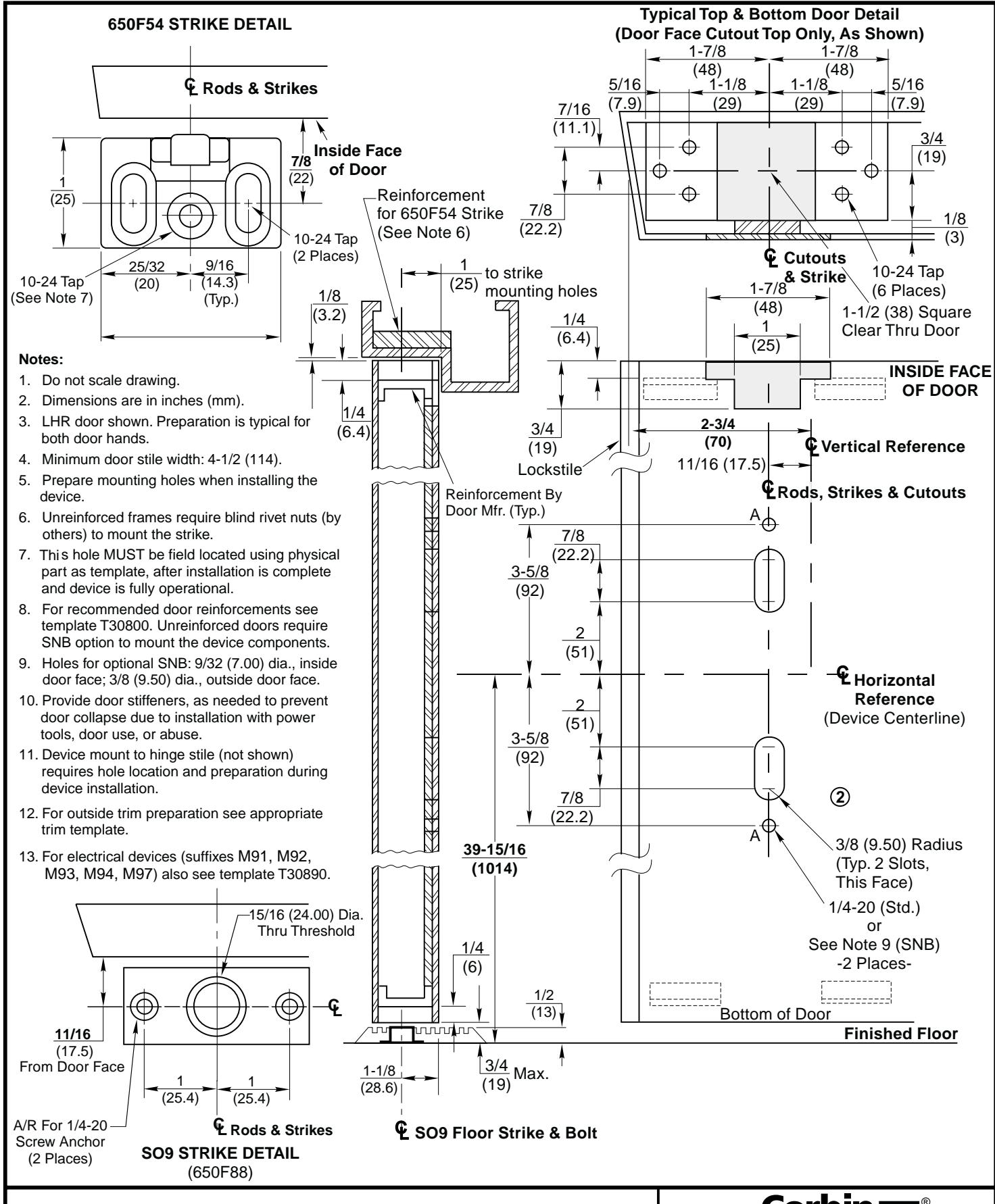

ED5800 & 5800A Series Concealed Vertical Rod Exit Devices
Application for Metal Door and Frame With 1/2" Threshold and SO9 Optional Floor Strike
www.corbinrusswin.com
SUPERSEDES T30807-1 DO NOT SCALE DRAWING
T30807-2
DATE 2-00
