Corbin Russwin ED5800(A) Wide Stile CVR Metal Door and Frame Template_T30806
Open the original PDF document
View PDF

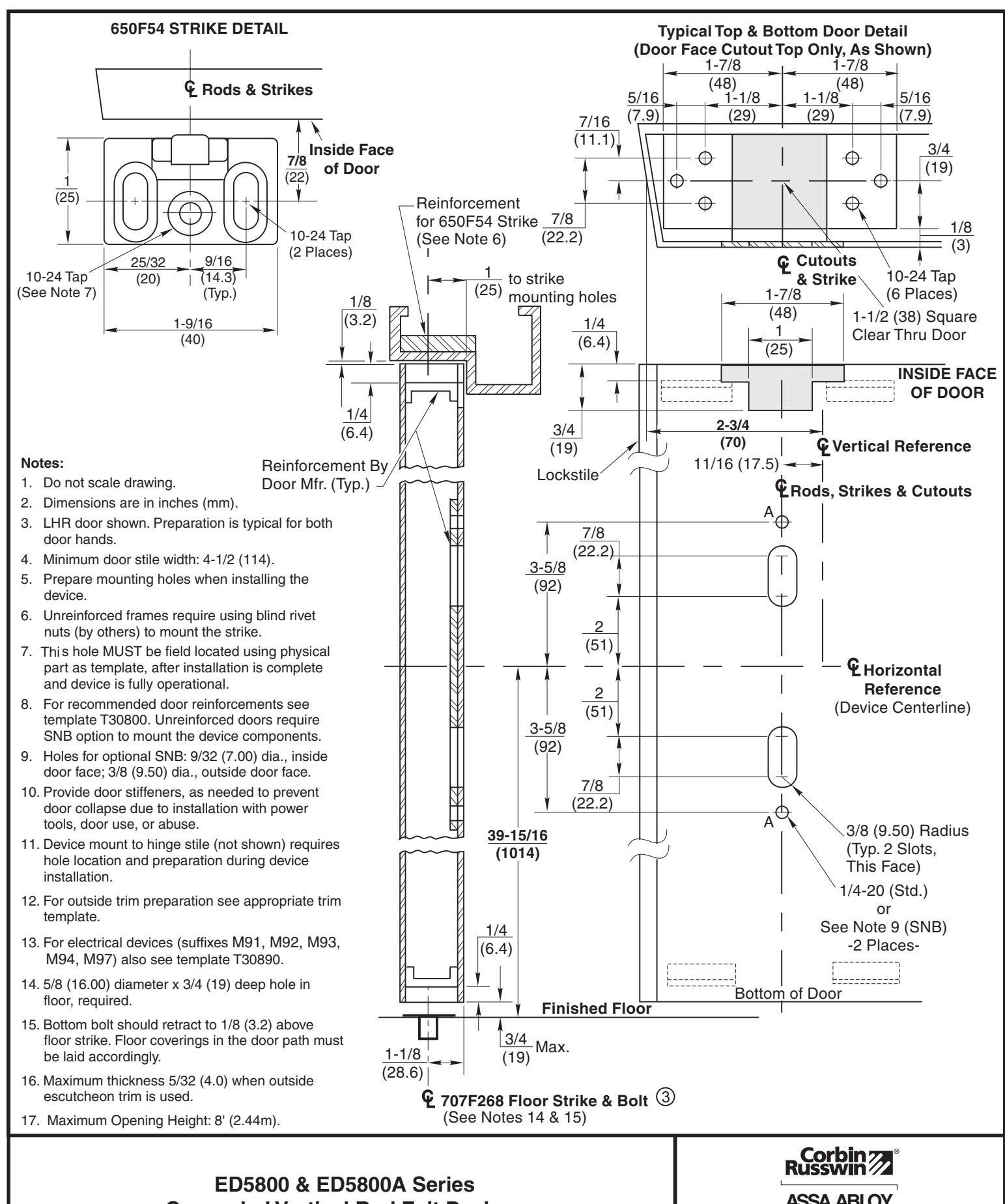

Concealed Vertical Rod Exit Devices Standard Application for Metal Door and Frame
ASSA ABLOY www.corbinrusswin.com SUPERSEDES 730806-2 DO NOT SCALE DRAWING TEMPLATE NUMBER 730806-3 DATE 05-09
