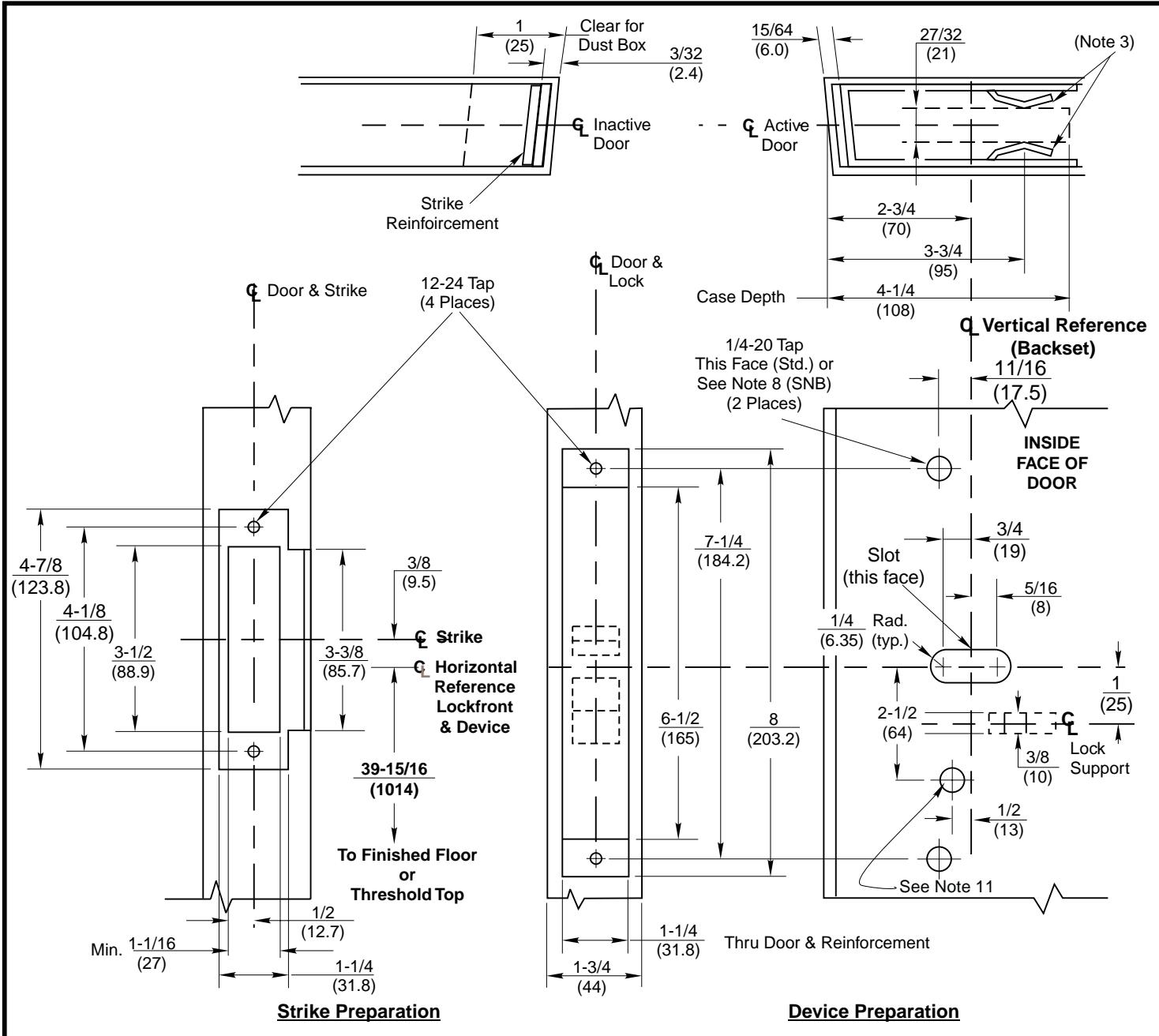

Corbin Russwin ED5600(A) Wide Stile Mortise ANSI A115.1 Strike Pair of Metal Doors without Mullion Template_T30810

Open the original PDF document

Notes:

1. Minumum Stile Width 4-1/2(114).
For door reinforcements see template T30800. Unreinforced doors require optional SNB to mount devices.
Unless otherwise specified, door preparation and dimensional tolerences must conform to ANSI A115.1. Lock support required as shown.
4. For outside trim preparation see appropriate trim template.
5. Prepare mounting holes when installing the device.
LHR active pair shown. Preparation is typical for both door hands
7. Dimensions are in inches (mm). Do not scale drawing.

Holes for optional SNB: 9/32(7.00)Dia. inside door face; 3/8(9.50) Dia. outside door face.
9. Dimensions given about a centerline are symmetrical.
10. Device mount to hinge stile (not shown) requires holes location and preparation during device installation.
11. For Electrical device suffixes "-Safe", "-Secure", M91, or M93: 1/2 (12.70) diameter, this face, plus prep shown on template T30890.
12. For electrical device suffixes M92, M94 or M97 also see template T30890.
13. Latchbolt centerline is 23/32 (18.2) below & Auxbolt centerline is 3/16 (4.8) above the centerline of lockfront.

Application for Pair of Metal Doors without Mullion

www.corbinrusswin.com

SUPERSEDES T30810

DO NOT SCALE DRAWING

T30810-1

0810-1 | DATE 9-99
