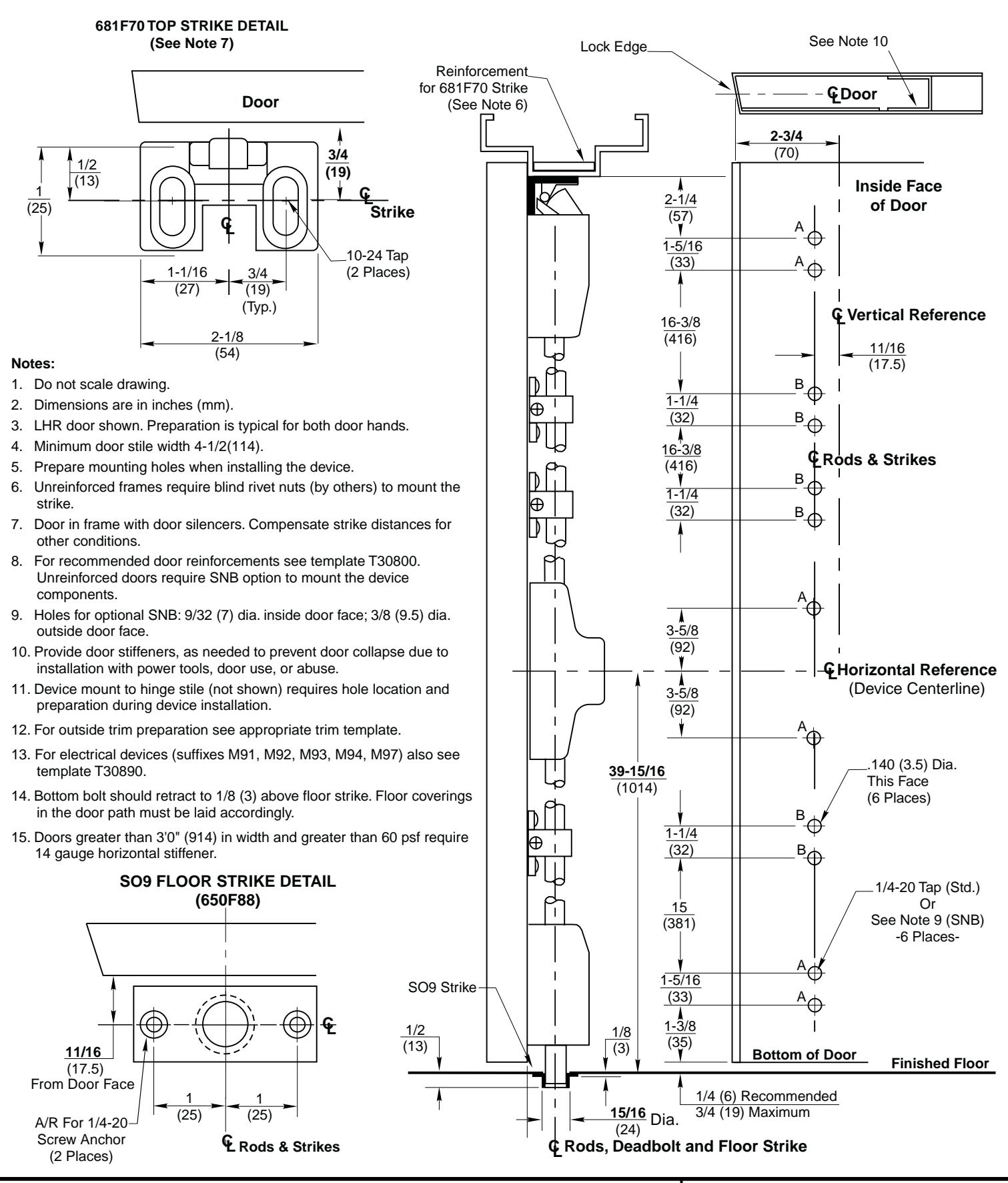

WINDSTORM CERTIFIED ED5470 x M107 Series & ED5470B x M107 Series Surface Vertical Rod Exit Device with SO9 Floor Strike Application for Metal Door and Frame without Threshold
T31000 8-05 DO NOT SCALE DRAWING SUPERSEDES TEMPLATE NUMBER DATE
