Corbin Russwin ED5470(B) M55 Wide Stile SVR Less Bottom Rod Metal Door and Frame Template_T30897

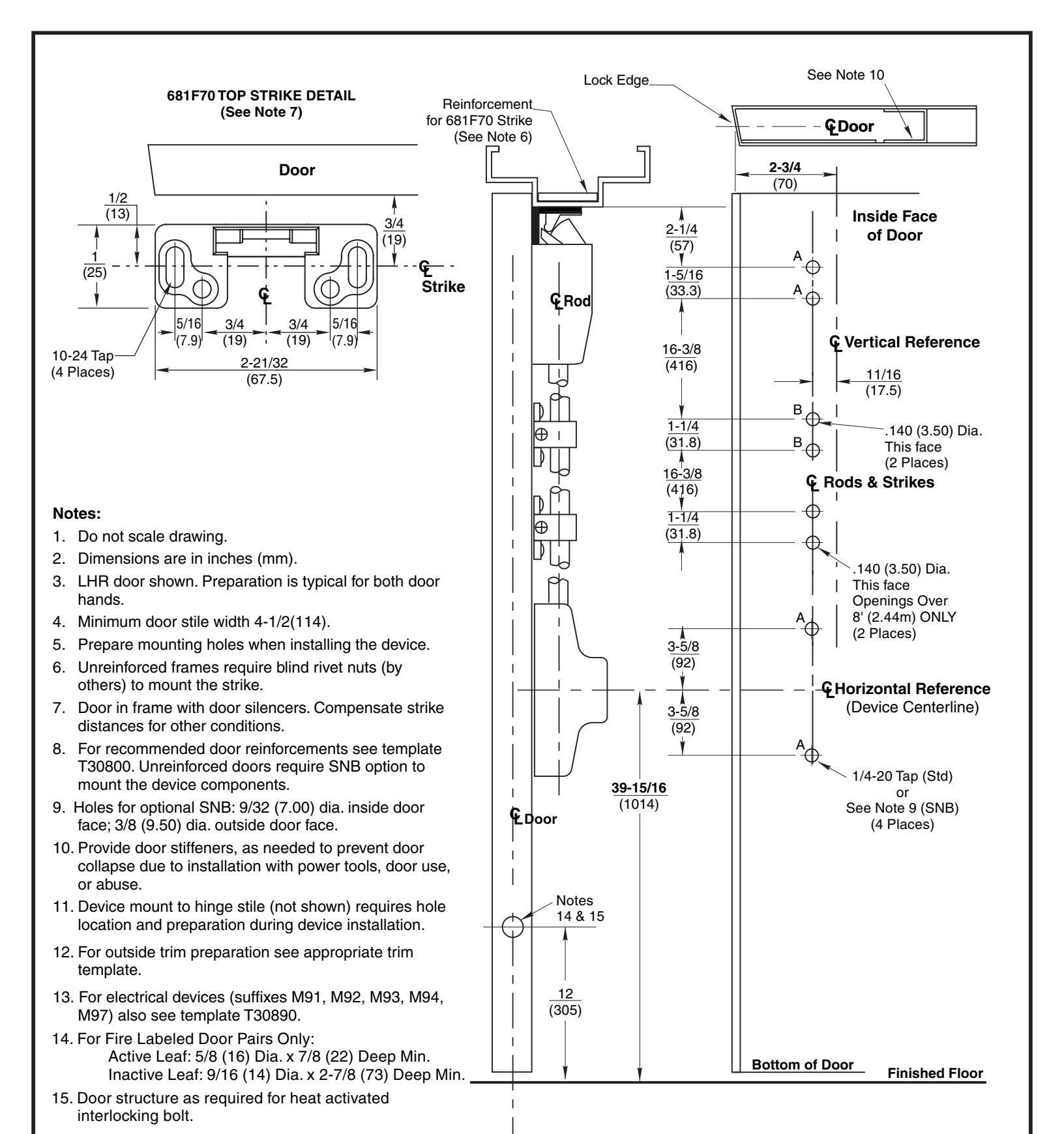

ED5470 M55 & ED5470B M55 Series Surface Vertical Rod Exit Devices

For Metal Door & Frame Application Less Bottom Rod (M55 Option)

DO NOT SCALE DRAWING SUPERSEDES TEMPLATE NUMBER DATE www.corbinrusswin.com ® ASSA ABLOY T30897-3

T30897-4

2-21
