Corbin Russwin ED5202S Wide Stile Double Cylinder SecureBolt 730F77 Strike Wood or Composite Door and H.M. Frame…_T30982
Open the original PDF document
View PDF

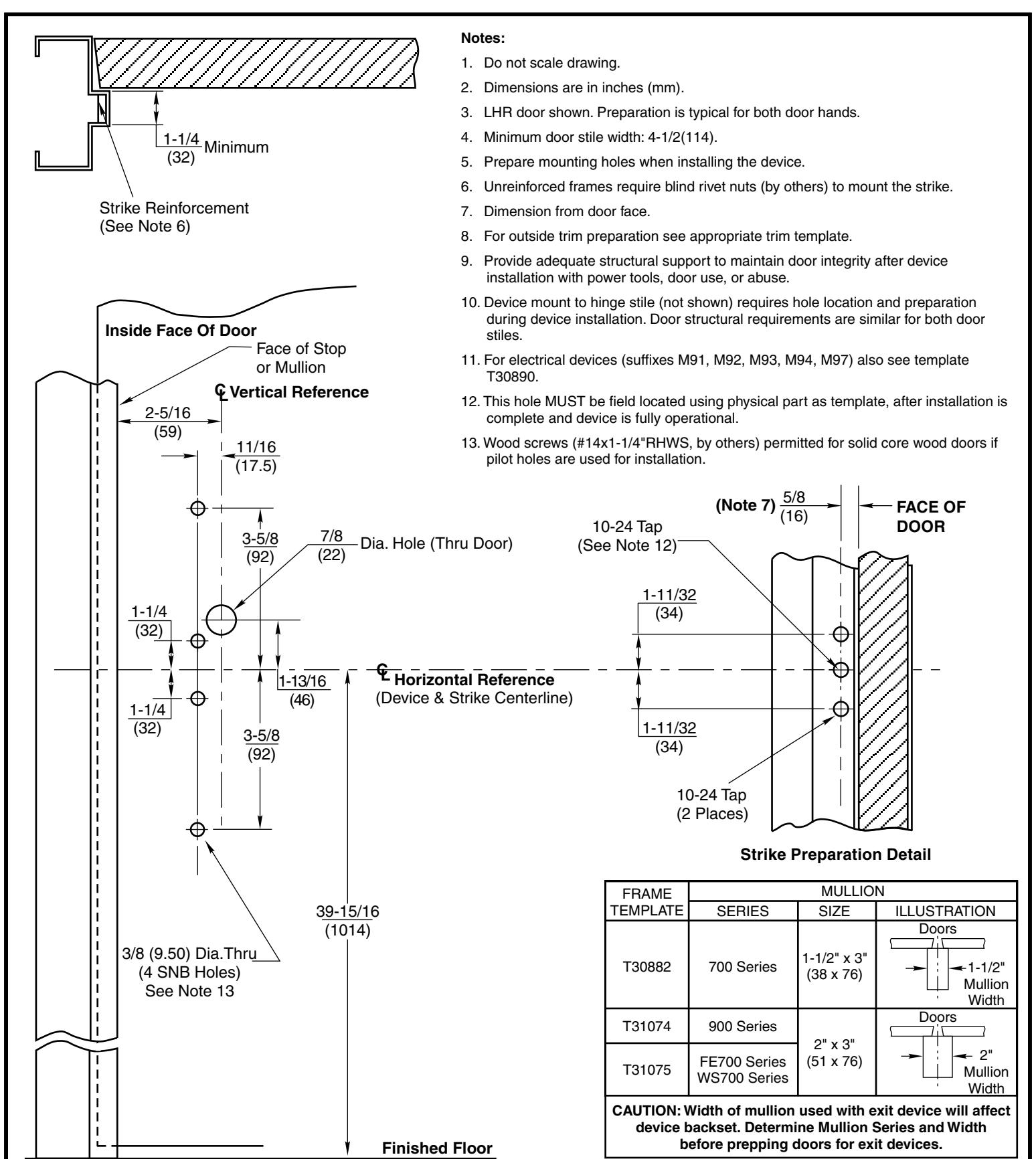

ED5202S Series Double Cylinder SecureBolt® Panic Devices with 730F77 Strike
Application for Wood or Composite Door and H.M. Frame or Mullion (Not for Fire Labeled Devices)
T30982-4
11-18
