Corbin Russwin ED5202S Wide Stile Double Cylinder SecureBolt 730F77 Strike Metal Door and Frame or Mullion Templ…_T30974
Open the original PDF document
View PDF

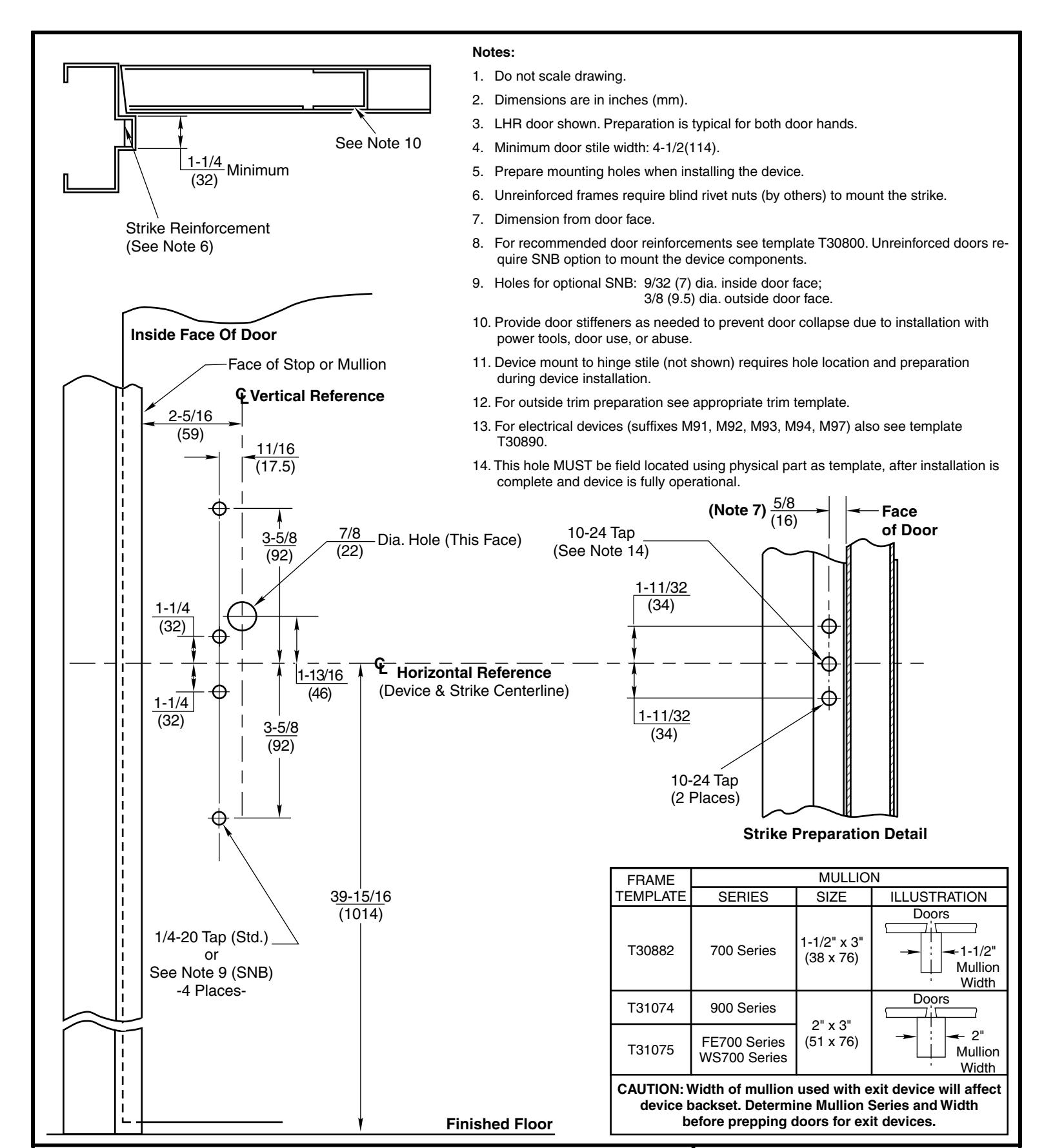

ED5202S Series Double Cylinder SecureBolt Panic Devices ® with 730F77 Strike 4
Application for Metal Door and Frame or Mullion (Not for Fire Labeled Devices)
DO NOT SCALE DRAWING SUPERSEDES T30974-3
11-18
