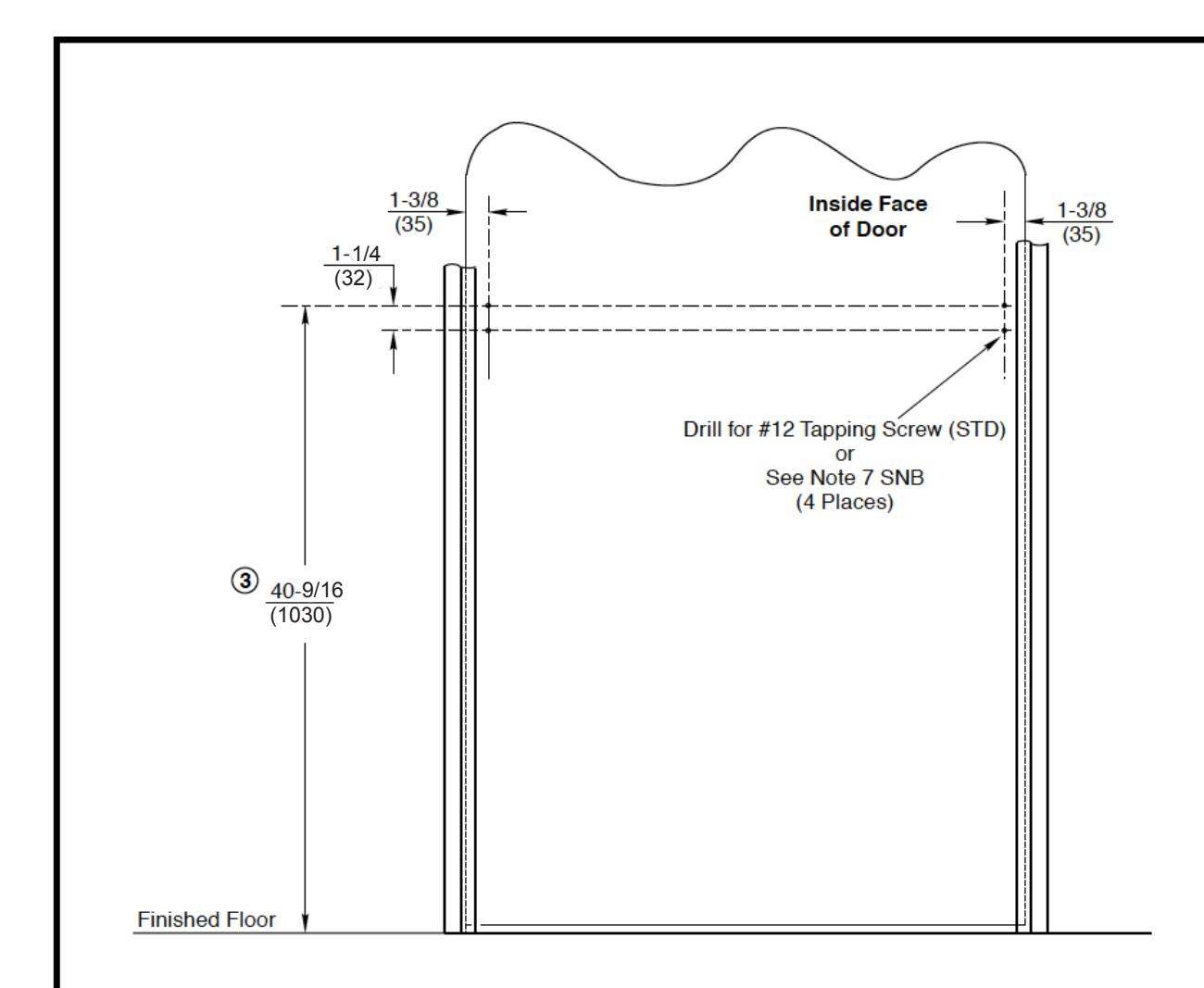

Corbin Russwin ED5000DB Dummy Push Bar Wood or Composite Door Template_T30872

Open the original PDF document

View PDF

Notes:

  • 1. Do not scale drawing.
  • 2. Dimensions are in inches (mm).
  • 3. Minimum Stile Width: 2 (51).
  • 4. Maximum door Width: 42 (1067)
  • 5. Prepare mounting holes when installing the hardware.
  • 6. Provide adequate door support to maintain door integrity after bar installation with power tools, door use, or abuse.
  • 7. Holes for Optional SNB: 9/32 (7.0) Dia. inside door face; 3/8 (9.5) Dia. outside door face.
