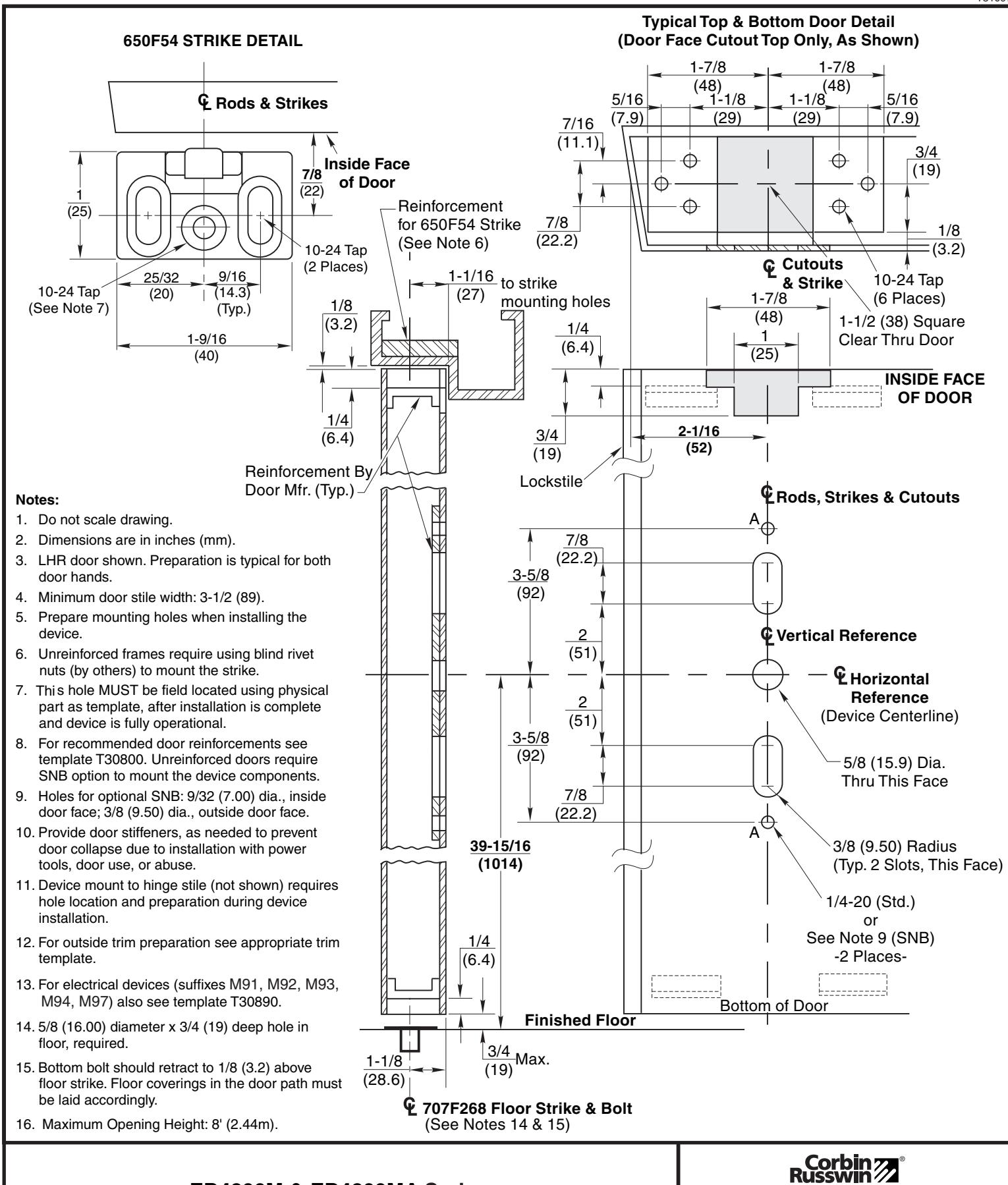

ED4800M & ED4800MA Series Concealed Vertical Rod Exit Devices
Standard Application for Metal Door and Frame
ASSA ABLOY www.corbinrusswin.com SUPERSEDES DO NOT SCALE DRAWING TEMPLATE NUMBER T31097 DATE 01-09
