Corbin Russwin ED4800 Narrow Stile CVR S09 Floor Strike Aluminum Door and Blade Stop Frame With 1, 2 Threshold …_T30879
Open the original PDF document
View PDF

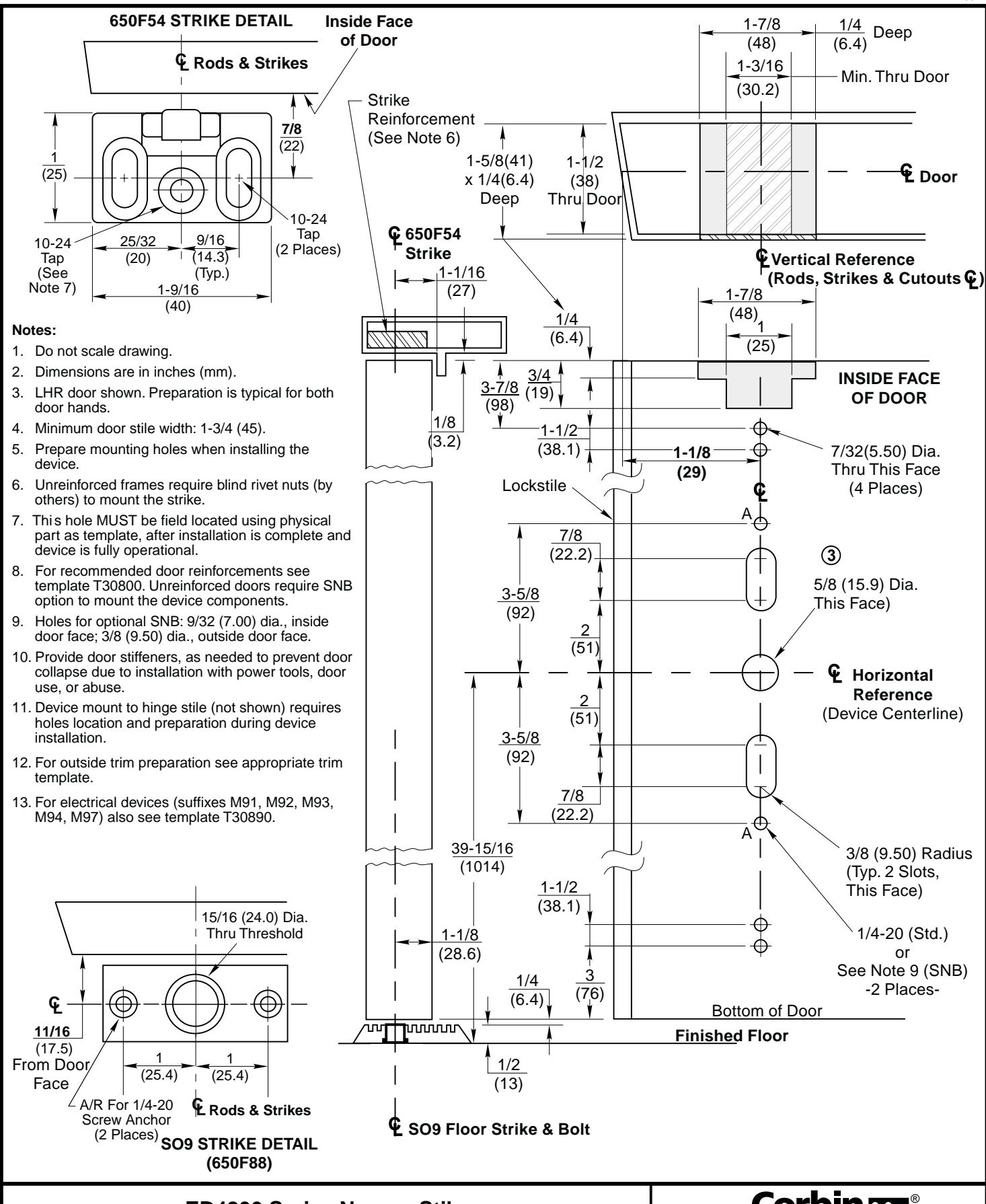

ED4800 Series Narrow Stile Concealed Vertical Rod Panic Devices
Application for Aluminum Door and Blade Stop Frame With 1/2" Threshold and Optional SO9 Floor Strike.
www.corbinrusswin.com
SUPERSEDES T30879-2
DO NOT SCALE DRAWING
T30879-3 DATE 3-01
