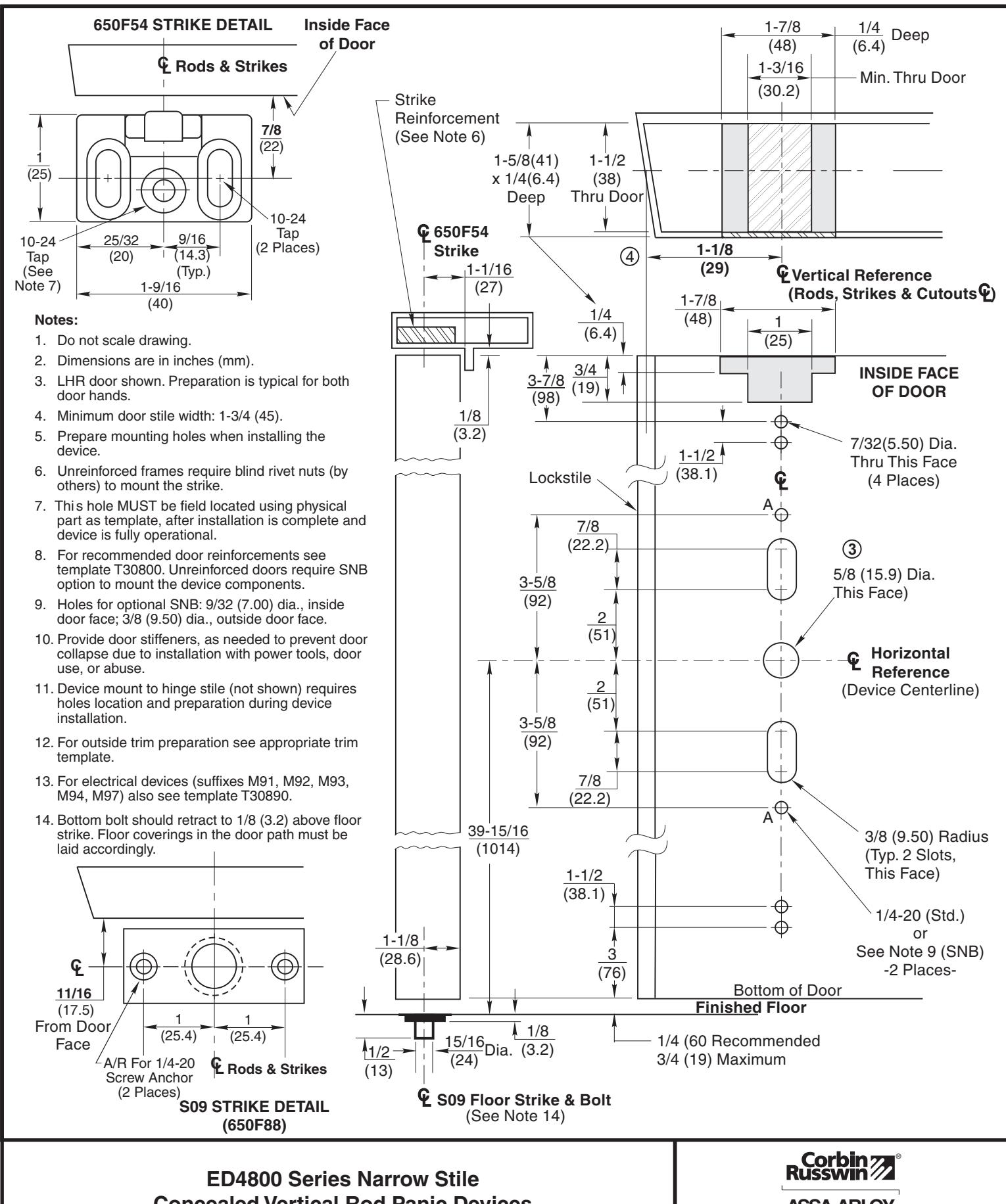

Corbin Russwin ED4800 Narrow Stile CVR S09 Floor Strike Aluminum Door and Blade Stop Frame Template_T30880
Open the original PDF document
View PDF
Concealed Vertical Rod Panic Devices
Application for Aluminum Door and Blade Stop Frame With SO9 Floor Strike
assa abloy DO NOT SCALE DRAWING T30880-3 TEMPLATE NUMBER T30880-4 05-09
