Corbin Russwin ED4400M(A) Narrow Stile SVR Wood or Composite Door and H.M. Frame Template_T31158
Open the original PDF document
View PDF

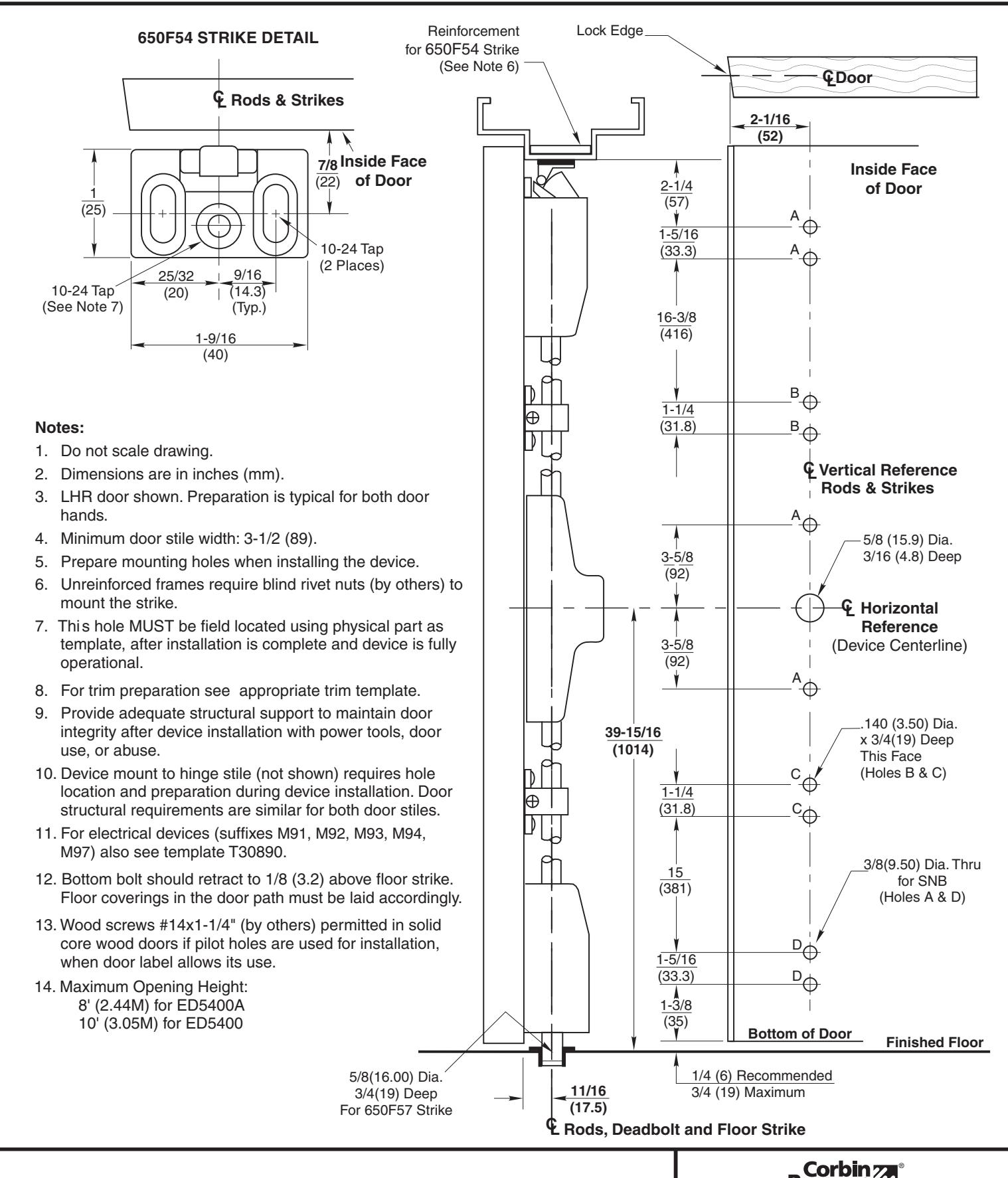

ED4400M & ED4400MA Series Surface Vertical Rod Exit Devices
Standard Application for Wood or Composite Door and H.M.Frame
05-09 DO NOT SCALE DRAWING SUPERSEDES TEMPLATE NUMBER DATE www.corbinrusswin.com ASSA ABLOY T31158
