Corbin Russwin ED4400 Narrow Stile SVR S09 Floor Strike Aluminum Door and Blade Stop Frame with 1, 2 Threshold …_T30876
Open the original PDF document
View PDF

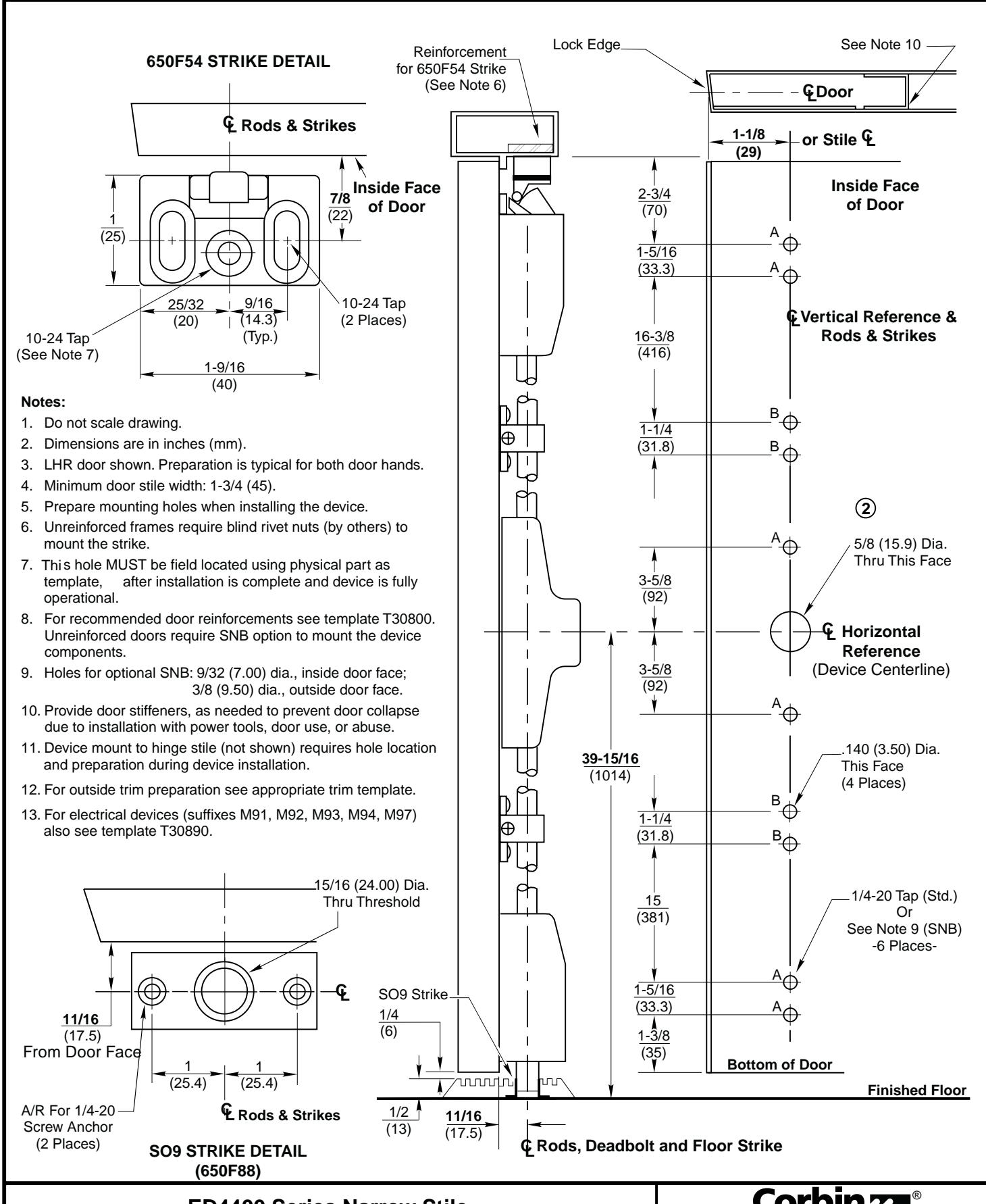

ED4400 Series Narrow Stile Surface Vertical Rod Panic Devices
Application for Aluminum Door and Blade Stop Frame with 1/2" Threshold and Optional SO9 Floor Strike
SUPERSEDES T30876-1 DO NOT SCALE DRAWING TEMPLATE NUMBER
T30876-2 DATE 3-01
