Corbin Russwin ED4400 Narrow Stile SVR S09 Floor Strike Aluminum Door and Blade Stop Frame Template_T30877
Open the original PDF document
View PDF

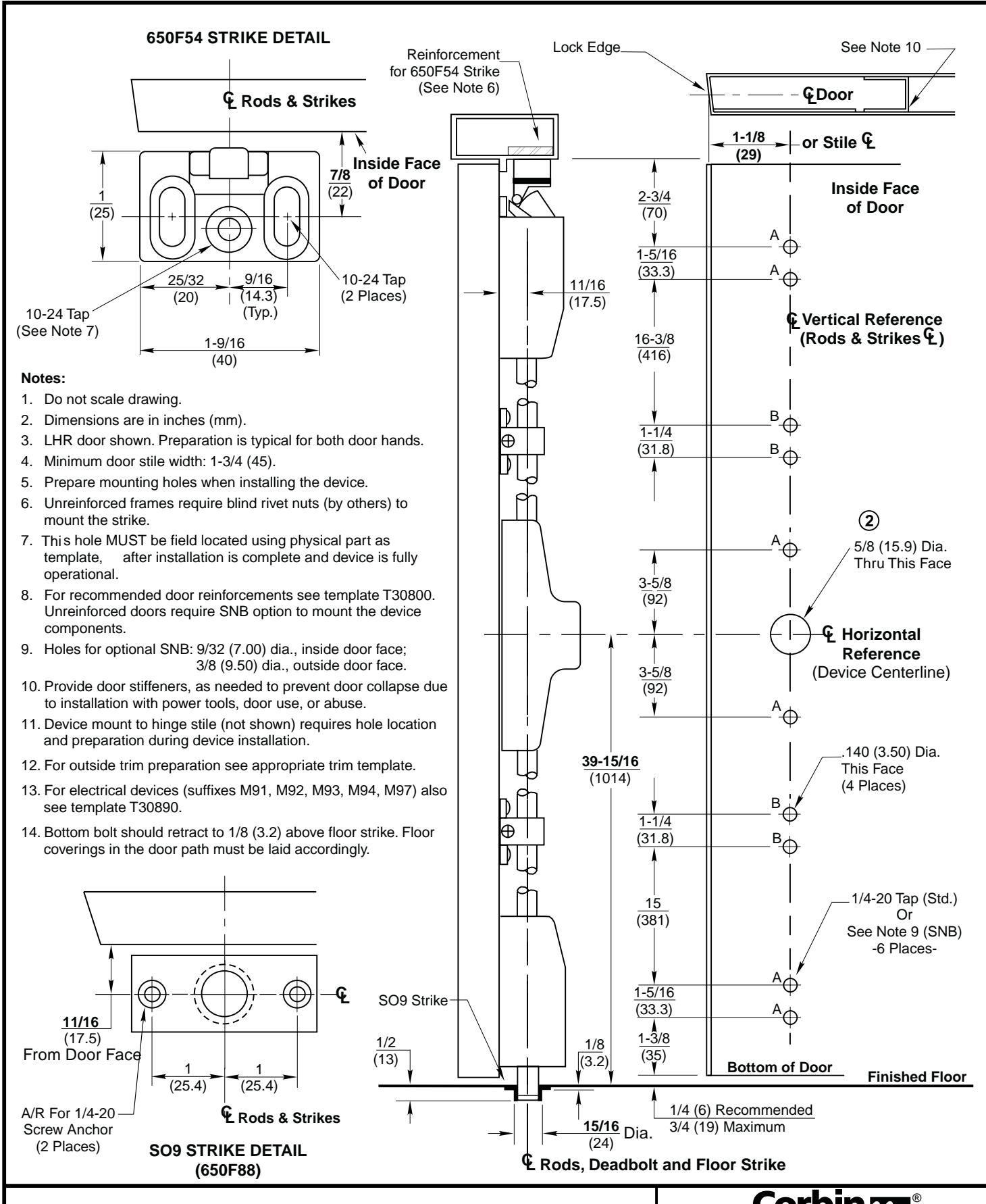

ED4400 Series Narrow Stile Surface Vertical Rod Panic Devices Application for Aluminum Door and Blade Stop Frame
pplication for Aluminum Door and Blade Stop Frame with Optional SO9 Floor Strike
SUPERSEDES T30877-1 DO NOT SCALE DRAWING
T30877-2 DATE 3-01
