Corbin Russwin ED4400 Narrow Stile SVR 650F57 Floor Strike Aluminum Door and Blade Stop Frame Template_T30875
Open the original PDF document
View PDF

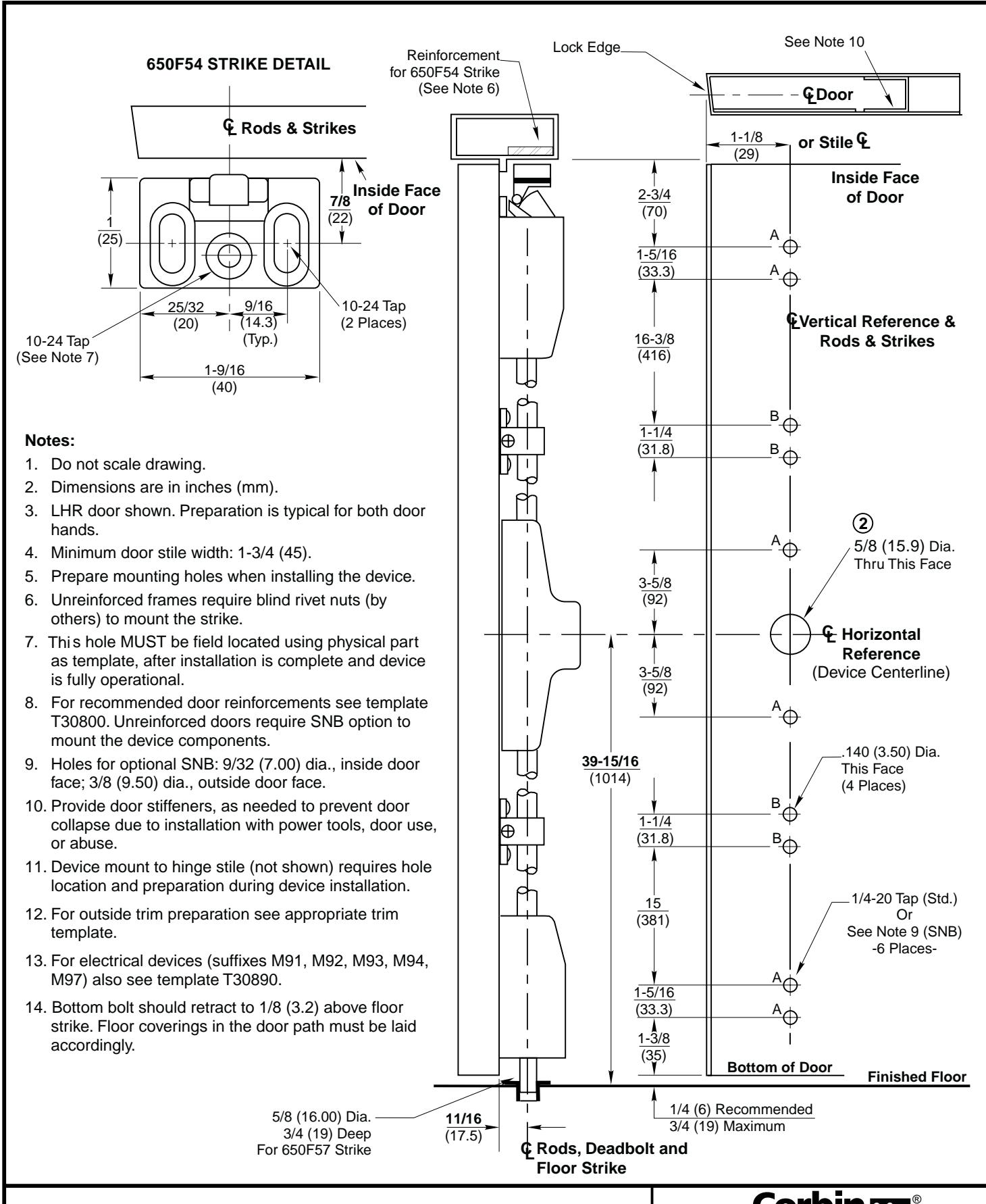

ED4400 Series Surface Vertical Rod Panic Devices Application for Aluminum Door and Blade Stop Frame with 650F57 Floor Strike
DO NOT SCALE DRAWING SUPERSEDES
T30875-1
T30875-2 3-01 TEMPLATE NUMBER DATE
