Corbin Russwin ED4200M Narrow Stile Rim Narrow EscutcheonTrim 650F308 Strike Metal Door and Frame or Mullion Tem…_T31159
Open the original PDF document
View PDF
ED4200M Rim Panic Devices

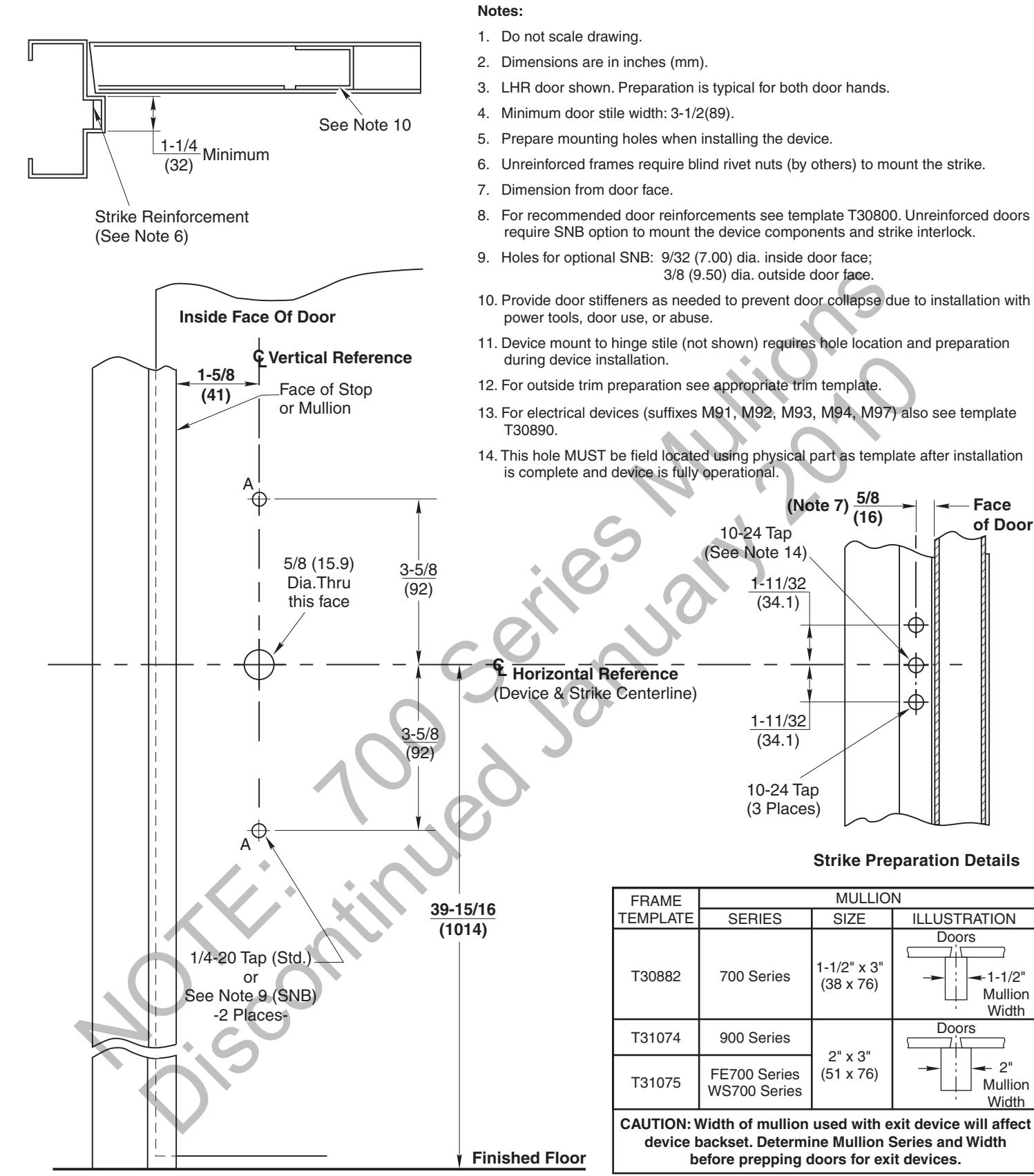

for Narrow Escutcheon Trim with 650F308 Strike Standard Application for Metal Door and Frame or Mullion (Not for Fire Labeled Devices)
assa abloy SUPERSEDES DO NOT SCALE DRAWING TEMPLATE NUMBER T31159 05-09
Face of Door
-1-1/2"
Mullion
Width
Mullion
Width
