Corbin Russwin ED4200 Narrow Stile Rim 650F31 Strike Aluminum Door and Blade Stop Frame Template_T30874
Open the original PDF document
View PDF

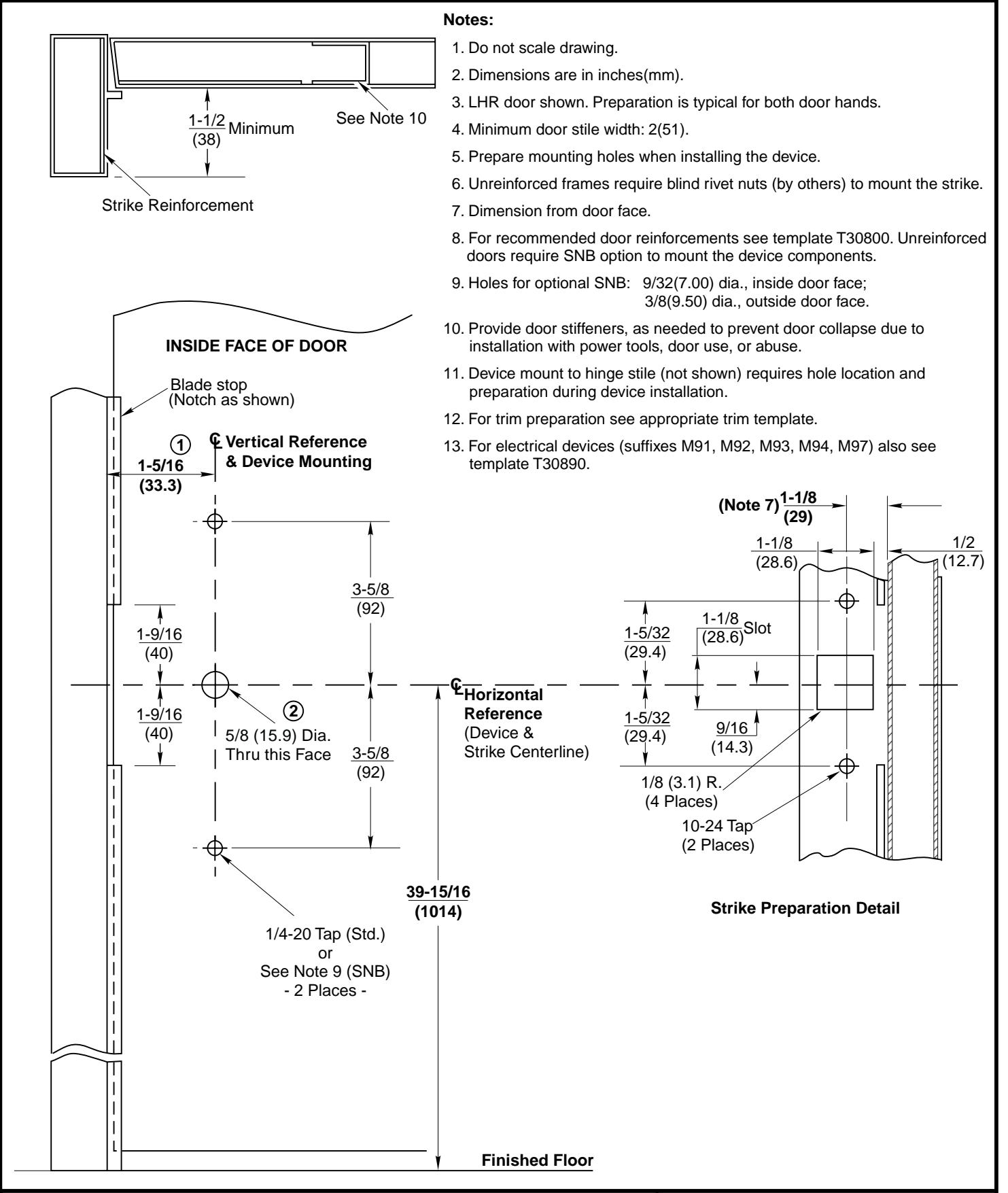

ED4200 Series Narrow Stile Rim Panic Devices with 650F31 Strike
Application for Aluminum Door and Blade Stop Frame
www.corbinrusswin.com
T30874-1
DO NOT SCALE DRAWING SUPERSEDES
3-01
T30874-2 TEMPLATE NUMBER DATE
