Corbin Russwin ED4000 and ED5000 Series Electric Exit Devices Template_T30890

RESPONSIBILITY

T30800.

composite doors.

7. For recommended door reinforcements see template

DOOR AND FRAME MANUFACTURERS ARE RESPONSIBLE FOR PROVIDING ADEQUATE CONSTRUCTION OR REINFORCEMENTS FOR PROPER INSTALLATION OF HARDWARE SHOWN. ALL ARCHITECTURAL BUILDERS HARDWARE MUST BE INSTALLED ON PROPERLY REINFORCED DOORS AND FRAMES, REGARDLESS OF TYPE, MATERIAL, OR METHOD OF CONSTRUCTION.

ED4000 & ED5000 Series Electric Exit Devices with Suffixes "D", M61 (Remote Powered), M91, M92, M93, M94, M97, MELR "-Safe", and "-Secure"

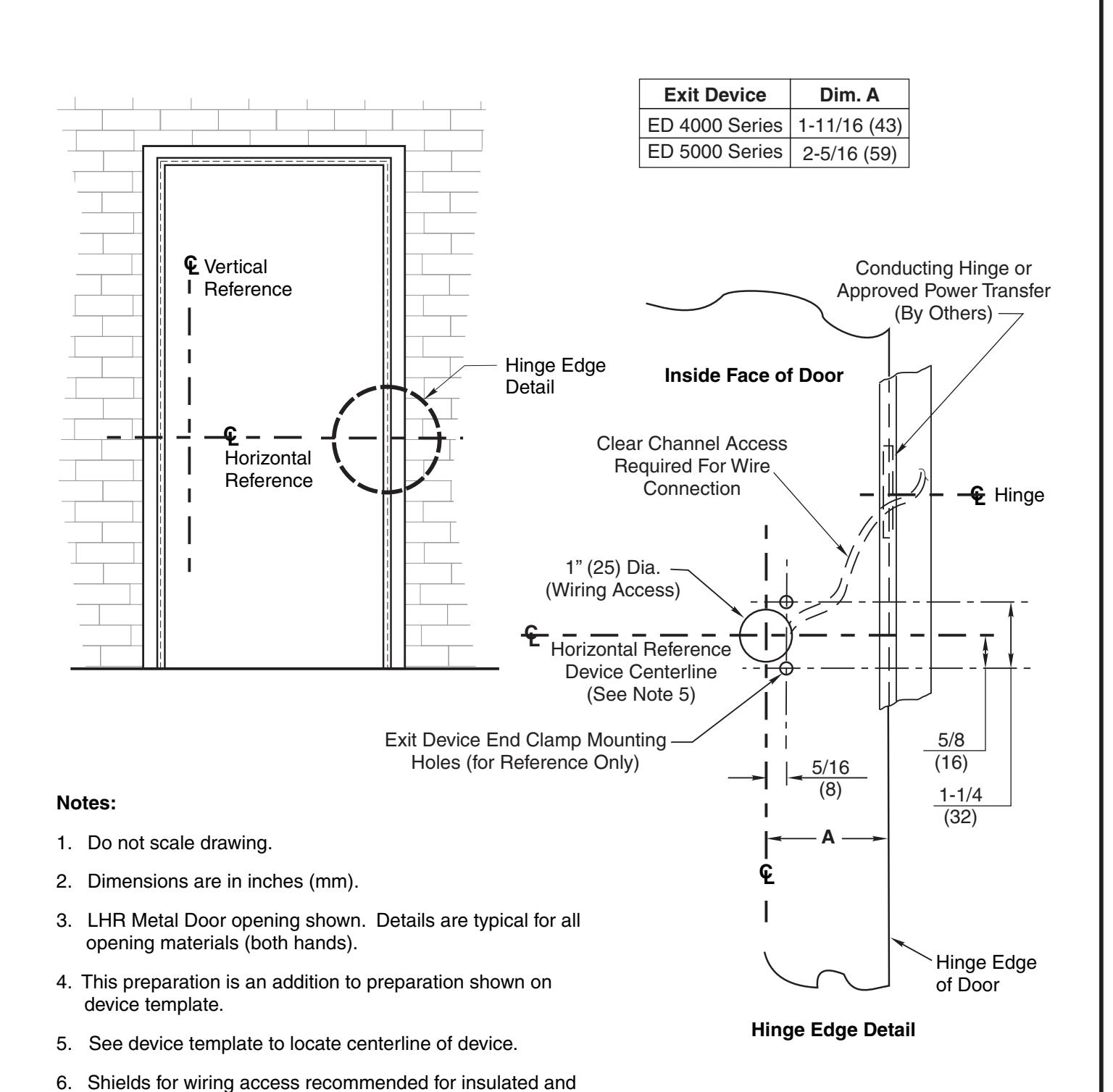

Preparation of Wiring Access for Metal or Wood Doors and Frames

ASSA ABLOY

www.corbinrusswin.com SUPERSEDES T30890-4 DO NOT SCALE DRAWING

T30890-5

DATE 05-17
