Corbin Russwin ED2400(A) Wide Stile SVR Bottom Pullman Latch Option Metal Door and Frame without Threshold Templ…_T31257

Notes:

• 1. Do not scale drawing.
• 2. Dimensions are in inches (mm).

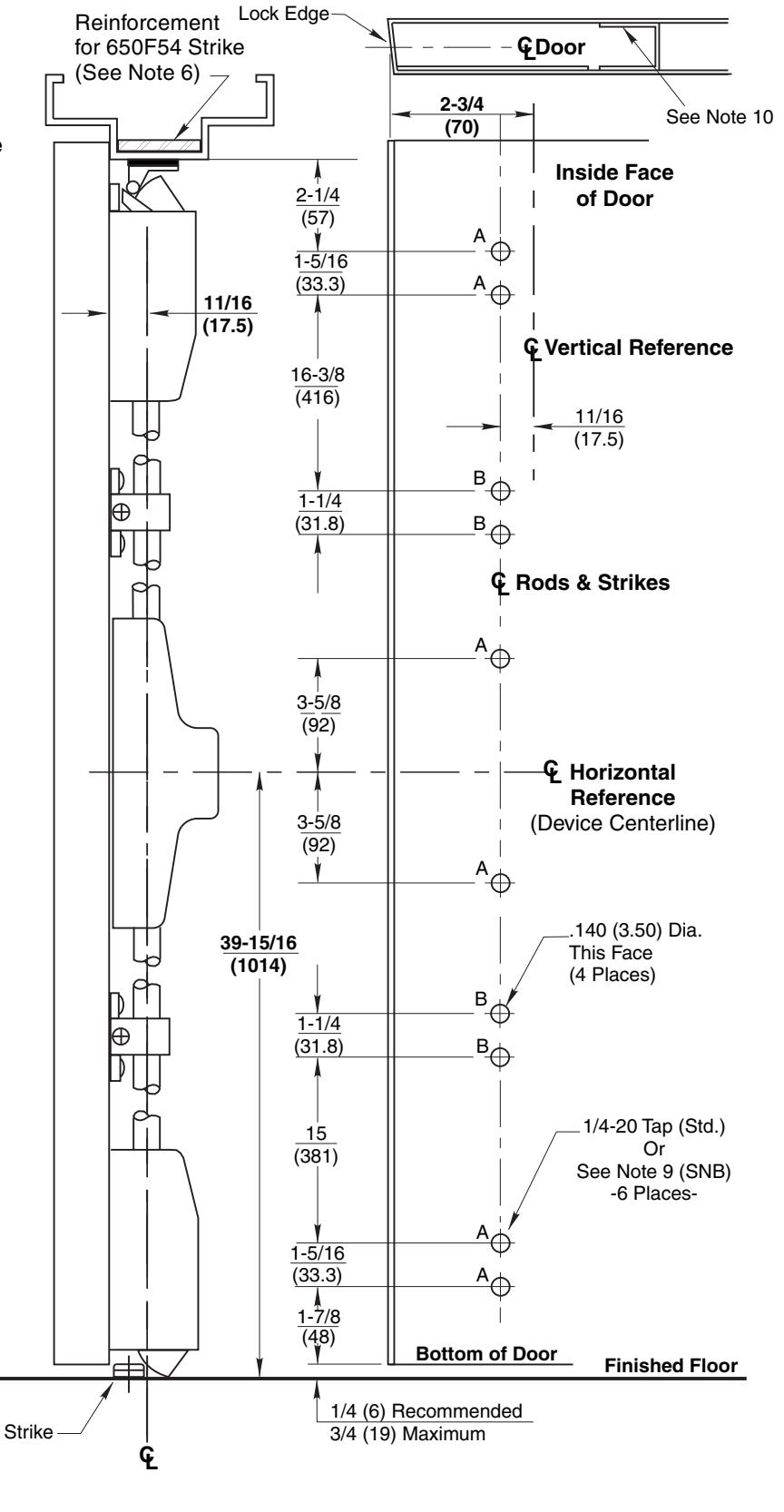

• LHR door shown. Preparation is typical for both door hands.
• 4. Minimum door stile width: 4-1/2 (114).
• 5. Prepare mounting holes when installing the device.

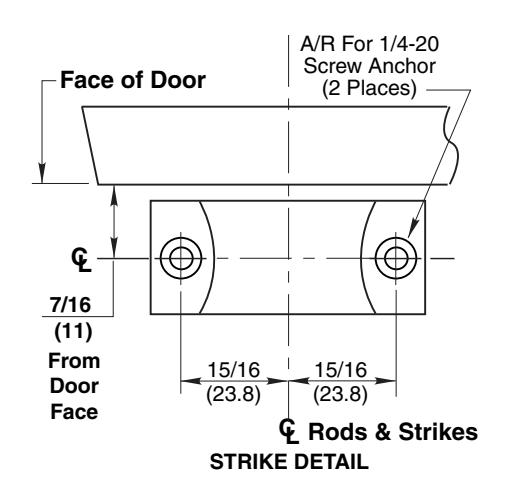

• Unreinforced frames require blind rivet nuts (by others) to mount the strike.

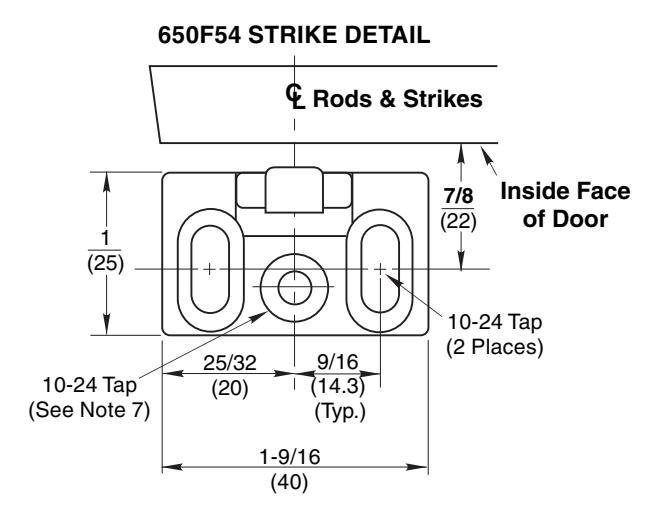

• This hole MUST be field located using physical part as template, after installation is complete and device is fully operational.
• 8. For recommended door reinforcements see template T30800. Unreinforced doors require SNB option to mount the device components.
• 9. Holes for optional SNB: 9/32 (7.00) dia., inside door face; 3/8 (9.50) dia., outside door face.
• Provide door stiffeners, as needed to prevent door collapse due to installation with power tools, door use, or abuse.
• Device mount to hinge stile (not shown) requires hole location and preparation during device installation.
• 12. For outside trim preparation see appropriate trim template.

RESPONSIBILITY

DOOR AND FRAME MANUFACTURERS ARE RESPONSIBLE FOR PROVIDING ADEQUATE CONSTRUCTION OR REINFORCEMENTS FOR PROPER INSTALLATION OF HARDWARE SHOWN. ALL ARCHITECTURAL BUILDERS HARDWARE MUST BE INSTALLED ON PROPERLY REINFORCED DOORS AND FRAMES, REGARDLESS OF TYPE, MATERIAL, OR METHOD OF CONSTRUCTION.

ED2400 & ED2400A Surface Vertical Rod Panic Exit Devices with Bottom Pullman Latch Option Application for Metal Door and Frame

Application for Metal Door and Frame without Threshold
