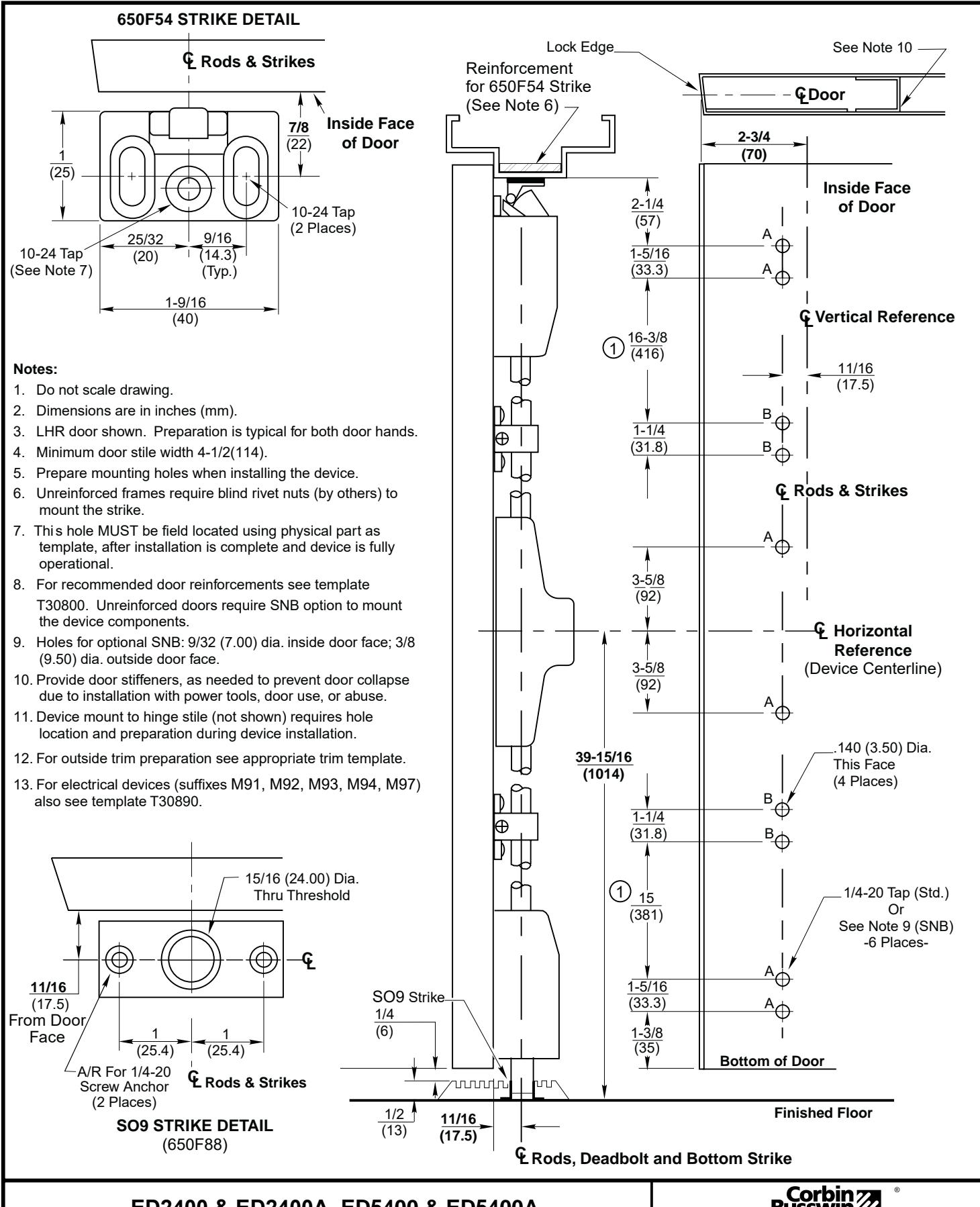

ED2400 & ED2400A, ED5400 & ED5400A Surface Vertical Rod Exit Devices
Application for Metal Door and Frame with 1/2¨ Threshold and SO9 Optional Floor Strike
DO NOT SCALE DRAWING SUPERSEDES TEMPLATE NUMBER DATE T30804-2 10-22 T30804-1
