Corbin Russwin ED2200A, ED5200A Narrow and Wide Stile Rim 650F30 Strike Wood or Composite Door and H.M. Frame or…_T30836

RESPONSIBILITY

DOOR AND FRAME MANUFACTURERS ARE RESPONSIBLE FOR PROVIDING ADEQUATE CONSTRUCTION OR REINFORCEMENTS FOR PROPER INSTALLATION OF HARDWARE SHOWN. ALL ARCHITECTURAL BUILDERS HARDWARE MUST BE INSTALLED ON PROPERLY REINFORCED DOORS AND FRAMES, REGARDLESS OF TYPE, MATERIAL, OR METHOD OF CONSTRUCTION.

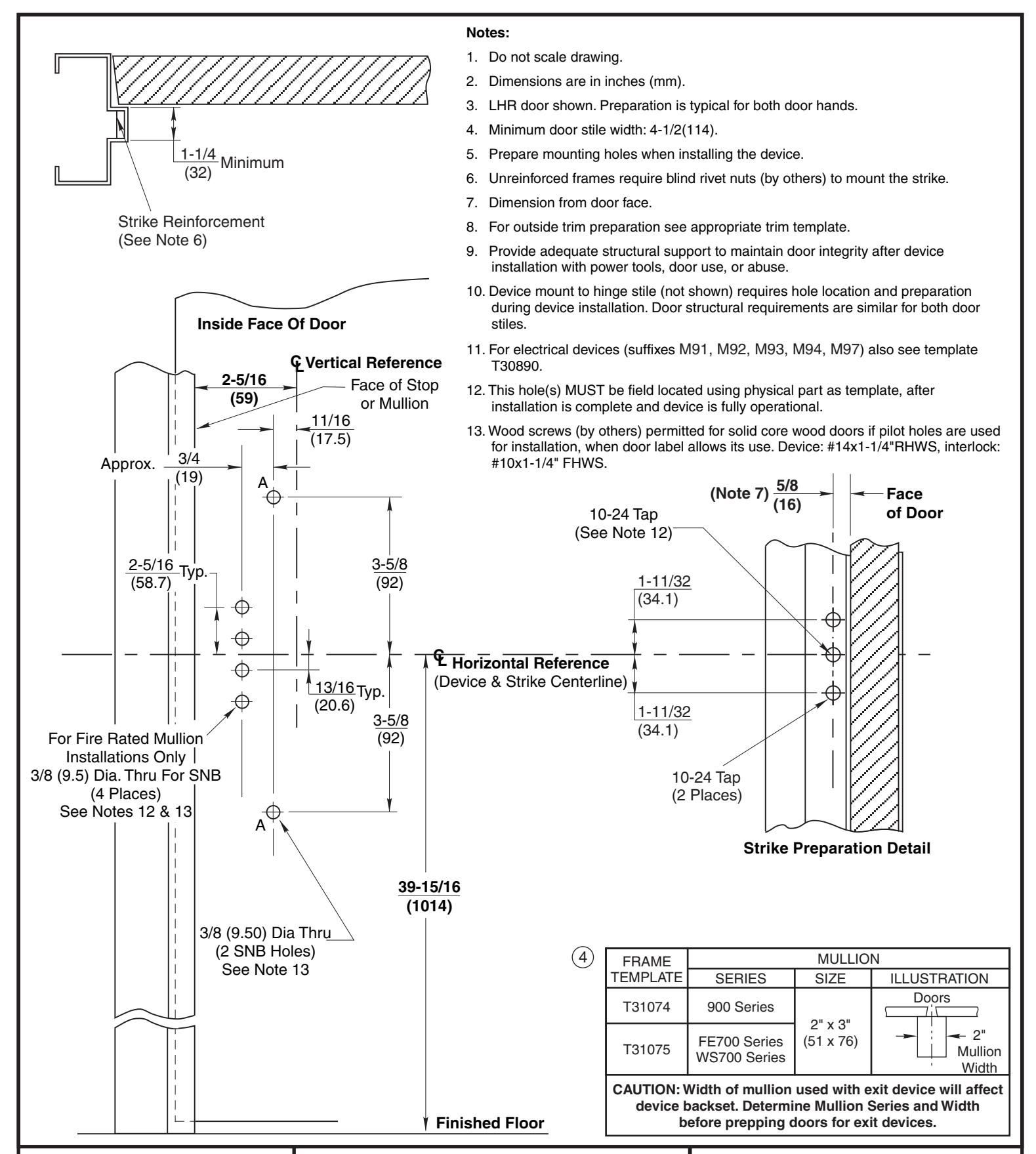

ED2200A and ED5200A Series Rim Fire Exit Devices with 650F30 Strike

Application for Fire Labeled Wood or Composite Door and H.M. Frame or Mullion

ASSA ABLOY

www.corbinrusswin.com

SUPERSEDES T30836-3 DO NOT SCALE DRAWING TEMPLATE NUMBER T30836-4 SHEET DATE 10/22
