Corbin Russwin ED2200, ED5200 Narrow and Wide Stile Rim S02 Strike Pair of Metal Doors without Mullion Template_T30888

Notes:

• 1) Do not scale drawing.
• 2) Dimensions are in inches(mm).
• 3) LHR active pair shown. Preparation is typical for both hands.
• 4) Minimum door stile width: 4-1/2(114).
• 5) Prepare mounting holes when installing the device.
• 6) For square door edges, or other center clearance, compensate locating dimensions as required to maintain strike to device distance shown.

Unreinforced doors require SNB option to mount the hardware.

• 8) Holes for optional SNB: 9/32(7.00) dia., inside door face; 3/8(9.50) dia., outside door face.
• 9) Provide door stiffeners, as needed to prevent door collapse due to installation with power tools, door use, or abuse.
• 10) Device mount to hinge stile (not shown) requires holes location and preparation during device installation.
• 11) For trim preparation see appropriate trim template.
• 12) For electrical devices (suffixes M91, M92, M93, M94, M97) also see template T30890.

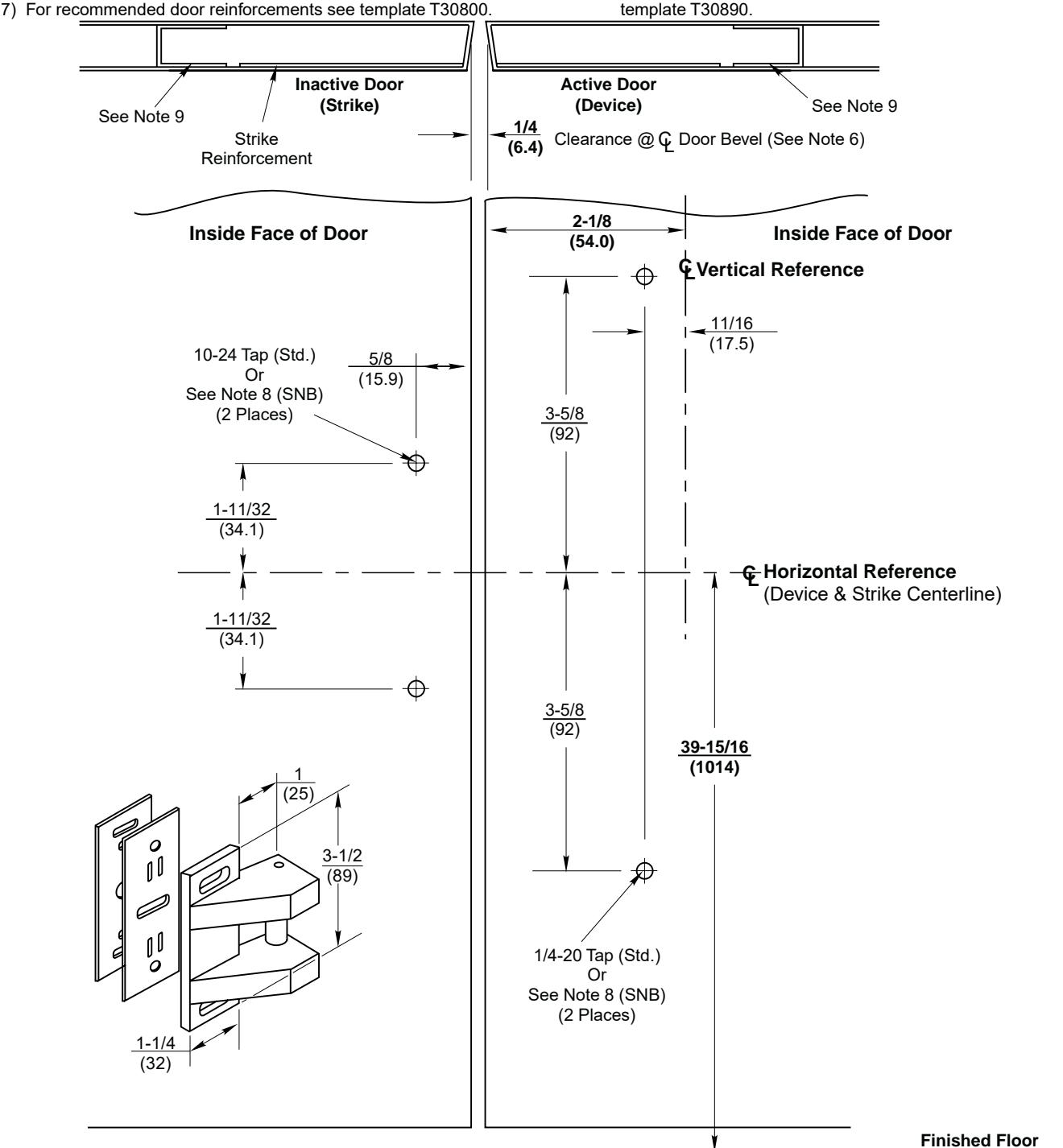

ED2200 & ED5200 Series Rim Exit Devices with Optional SO2 Strike Application to Pair of Metal Doors without Mullion (Not for Fire Labeled Devices)

Corbin Russwin ASSA ABLOY

SUPERSEDES T30888-1

1 DO NOT SCALE DRAWING

n TEMPLATE NUMBER

T30888-2 DATE 10-22
