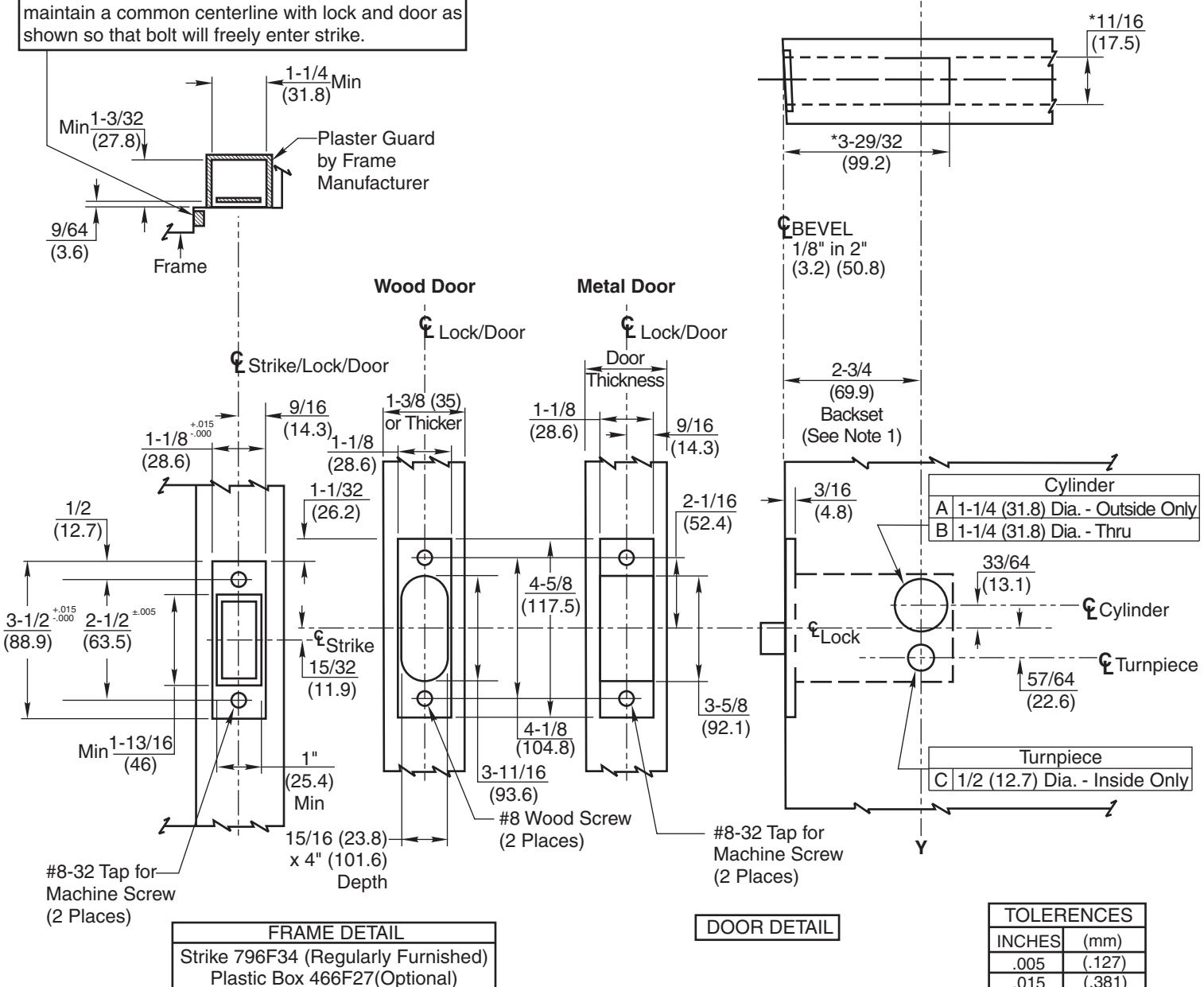

Corbin Russwin DL4100 Series Deadbolts Template_T31189

Notes:

• Backset is measured from centerline of bevel which is centerpoint of door thickness.
• 2. (*) When preparing doors for lead wrapped locks, add 1/8" (3.2) to dimensions marked (*) to allow proper clearance.
• 3. Dimensions given in inches and (mm).
• 4. Frame prep meets ANSI standards A115.5 (steel) and A115.W8 (wood) for deadlock strikes.

Template Cross Reference
Description	Template
240L08 ANSI Strike	T30657

	Lock Function	Required Holes
	LOCK FUNCTION	Α	A B C	С
2	DL4111	•
	DL4112		•
	DL4113 & DL4117	•		•
	DL4122		•	•
	DL4160			•

CAUTION: DOOR AND FRAME MANUFACTURERS When door gasketing or silencers are used, proper allowances must be made for strike location to maintain a common centerline with lock and door as shown so that bolt will freely enter strike.

RESPONSIBILITY

DOOR AND FRAME MANUFACTURERS ARE RESPONSIBLE FOR PROVIDING ADEQUATE CONSTRUCTION OR REINFORCEMENTS FOR PROPER INSTALLATION OF HARDWARE SHOWN. ALL ARCHITECTURAL BUILDERS HARDWARE MUST BE INSTALLED ON PROPERLY REINFORCED DOORS AND FRAMES, REGARDLESS OF TYPE, MATERIAL, OR METHOD OF CONSTRUCTION.

DL4100 Series

Mortise Deadlock

Corbin 778° Russwin 778°

ASSA ABLOY

10-16

www.corbinrusswin.com

SUPERSEDES T31189-1 DO NOT SCALE DRAWING

T31189-2
