Installation Instructions

DC8200 Series

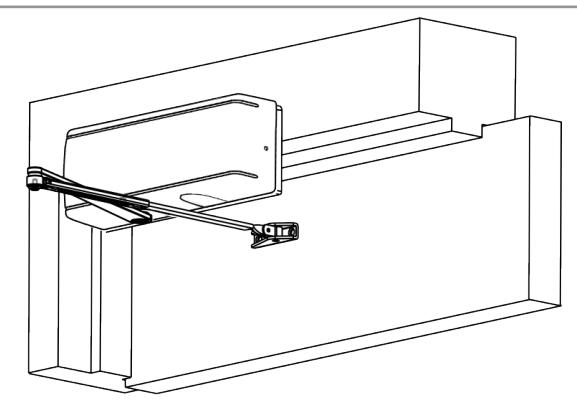

DC8220 Installation Addendum for use with 754F24 Drop Plates

This addendum replaces the Template section for Jamb Mount Applications in document 80-9380-8000-152 when 754F24 drop plates are used.

Use of Drop Plate (754F24) in this application will put the bottom of the plate 2-1/8" (54mm) into the opening.

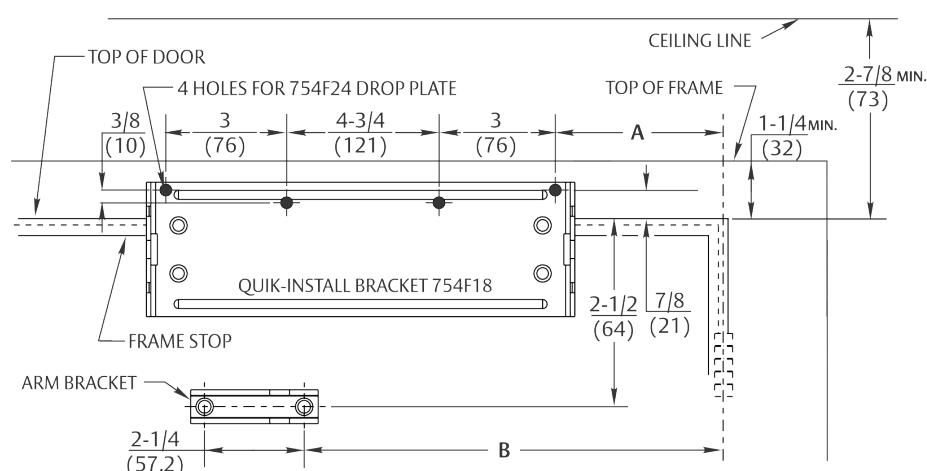

A. Mark door and Jamb (for arm bracket and and drop plate)

Use template and dimensions below.

Opening Maximum	Α	В	Hinge Condition
110°	6-1/8 (156)	14 (356)	Butts, Offset Pivots, and Swing Clear Hinges
140°	4-3/8 (111)	12-1/2 (318)
180°	2-5/8 (67)	10-1/2 (267)
140°	4-3/8 (111)	12-3/8 (314)	*Center Hung

Dimensions "A" and "B" are taken from centerline of hinge as shown and apply to pivot point of swing clear hinges. Offset and center hung pivots. *Must be single acting door.

Mounting Screw Specifications Arm and QUIK-INSTALL Bracket

#12-14 self-drilling screw 1/8 (3) diameter pilot hole required for Wood Applications

OR Sex nuts, furnished when ordered

NOTES:

• Check hand of door (Refer to page 1)
• Right hand application shown. Left hand opposite.
• Dimensions given in inches (mm). Do not scale drawing.
• Closer must be installed in a true horizontal plane to ensure proper closer performance.
• All degrees of door opening are dependent upon door, frame, wall, and hinge/pivot conditions permitting.

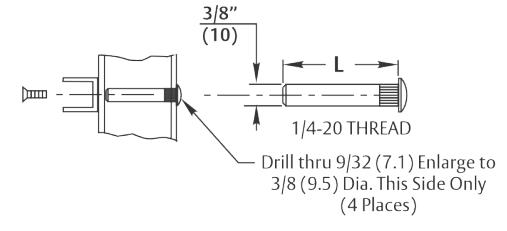

Door Thickness	Sex Nut Length "L"
1-3/8 (35)	1-9/32 (33)
1-3/4 (44) & Over	1-21/32 (42)

For installation assistance contact Corbin Russwin 1-800-543-3658 • techsupport.corbinrusswin@assaabloy.com
