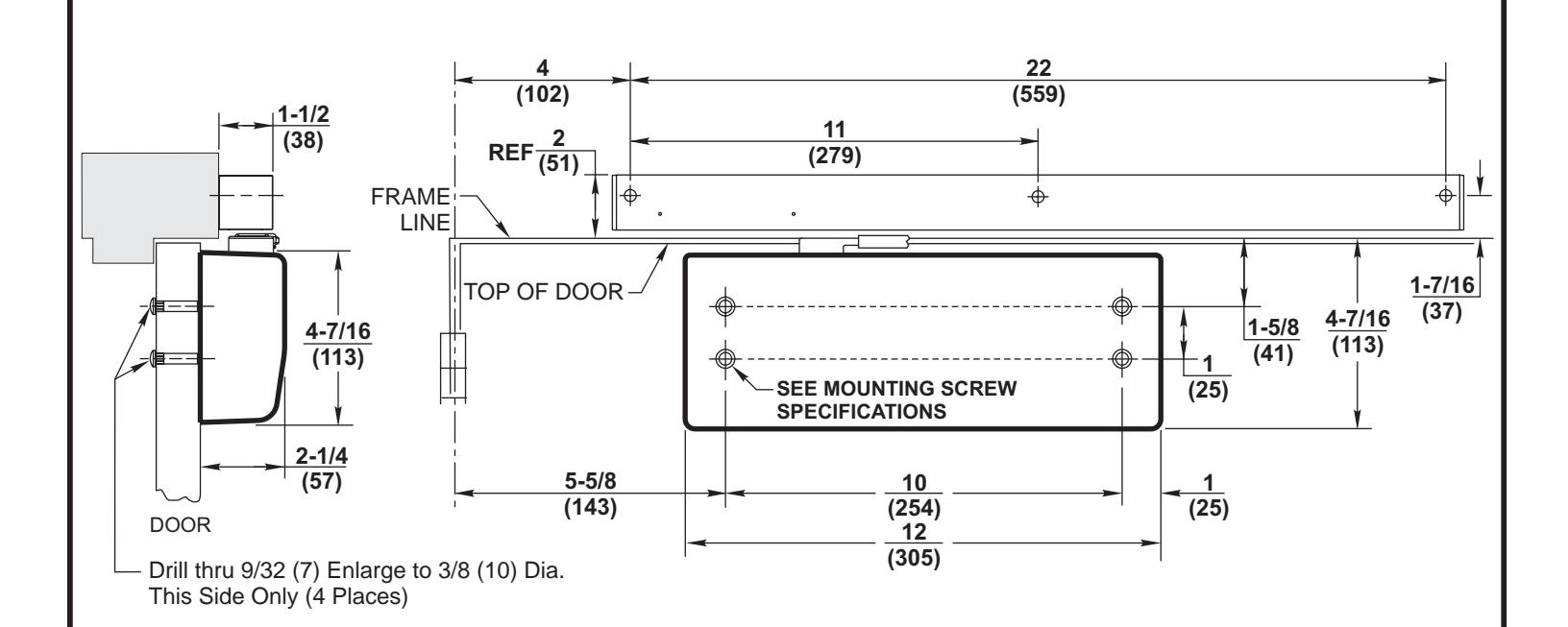

MOUNTING INFORMATION

Sex nuts or through bolts are required for wood and plastic covered composite doors, and any type of door without reinforcements and recommended for wood core and metal clad (Kalamein) type doors.

RH SHOWN LH OPPOSITE

CAUTION: Closer To Be Installed In A True Horizontal Position To Ensure Proper Closer Performance.

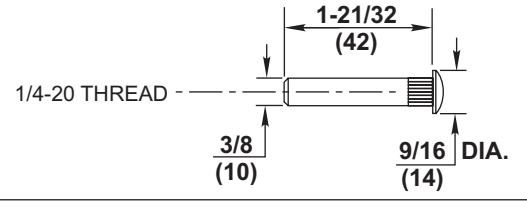

MOUNTING SCREW SPECIFICATIONS ARM AND QUIK-INSTALL™ BRACKET

#12-14 self-drilling screw. 1/8 (3) diameter pilot hole required for Wood Applications. Sex nuts, furnished when ordered

NOTES:

• 1. Dimensions given in inches and (mm).
• 2. Minimum Top Rail: 3 (76)
• 3. Minimum clearance required over door: 2-1/16 (52)
• 4. Hold Open tracks cannot be used on fire doors.
• Door stop / hold open position (A1) adjustable from 75° to 110° of door opening.
• 6. Door will travel additional 5° to dead stop.

The Habitat for Humanity®

RESPONSIBILITY

Door and Frame Manufacturers are responsible for providing adequate construction or reinforcements for proper installation of hardware shown. All architectural builders hardware must be installed on properly reinforced doors and frames, regardless of the type, material, or method of construction.

DC8230 Series

Pull Side Mounted Track Surface Door Closer (with or without A1)

Corbin Russwin

ASSA ABLOY

www.corbinrusswin.com

Do Not Scale Drawing Supersedes Dr. App. Date 04-08 Template Number T31105
