View PDFMOUNTING INFORMATION
Sex nuts or through bolts are required for wood and plastic covered composite doors, and any type of door without reinforcements and recommended for wood core and metal clad (Kalamein) type doors.

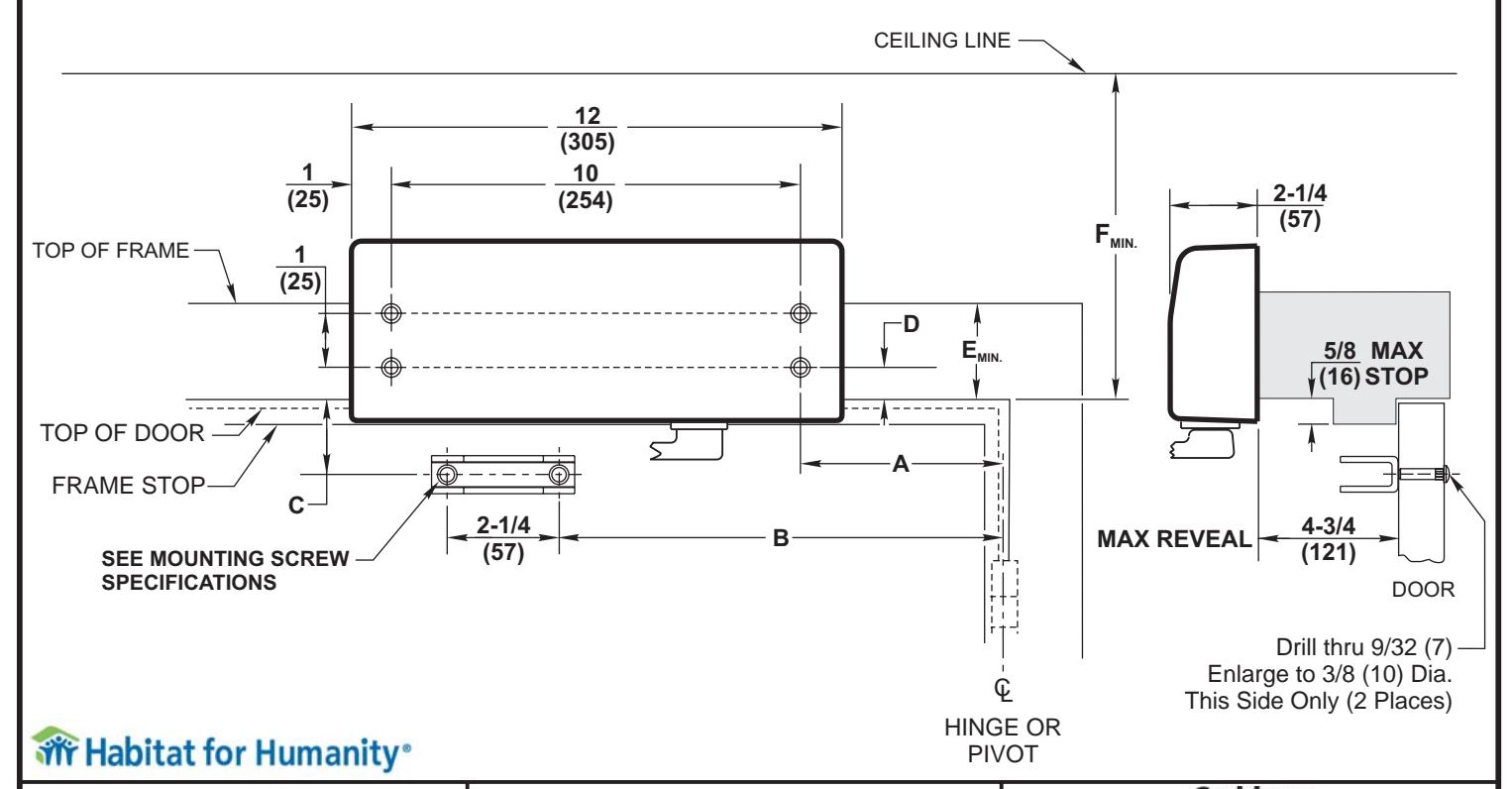

RH SHOWN LH OPPOSITE
CAUTION: Closer To Be Installed In A True Horizontal Position To Ensure Proper Closer Performance.
MOUNTING SCREW SPECIFICATIONS ARM AND QUIK-INSTALL™ BRACKET

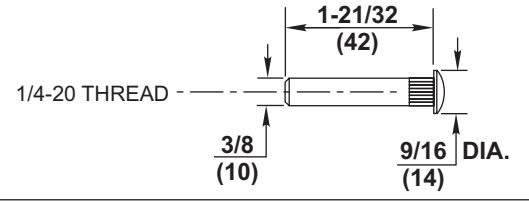

#12-14 self-drilling screw. 1/8 (3) diameter pilot hole required for Wood Applications. Sex nuts, furnished when ordered
NOTES:
- 1. Dimensions given in inches and (mm).
- 2. Minimum Top Rail:
Standard Header Width: 1-7/8 (48) Narrow Header Width: 2-1/4 (57)
- 3. Auxiliary door stop required, by others.
- 4. Center hung doors must be single acting.
- 5. Maximum Opening is based on a 3-1/4 (83) reveal. Deeper reveals will limit the degree of opening.
| OPENING MAXIMUM | Α | В |
HINGE
CONDITION |
|
|---|---|---|---|---|
| 110° |
6-7/8
(175) |
14
(356) |
Butts, Offset
Pivots, and Swing Clear Hinges |
|
| 140° |
5-1/8
(130) |
12-1/2
(318) |
||
| 180° |
3-3/8
(86) |
10-1/2
(267) |
||
| 140° |
5-1/8
(130) |
12-3/8
(314) |
CENTER
HUNG |
|
|
HEADER
WIDTH |
С | D | E MIN | F MIN |
|---|---|---|---|---|
| STANDARD | 1-1/2 | 3/4 | 2-1/8 | 4 |
| (38) | (19) | (54) | (102) | |
| NARROW | 1-7/8 | 3/8 | 1-3/4 | 3-5/8 |
| (48) | (10) | (45) | (92) |
RESPONSIBILITY
Door and Frame Manufacturers are responsible for providing adequate construction or reinforcements for proper installation of hardware shown. All architectural builders hardware must be installed on properly reinforced doors and frames, regardless of the type, material, or method of construction.
DC8220 Series
Top Jamb Arm Mounted Surface Door Closer (with or without A1/A6/A8)
Russwin
ASSA ABLOY
www.corbinrusswin.com Do Not Scale Drawing
Supersedes Dr. App. Date 04-08 Template T31103
