MOUNTING INFORMATION

Sex nuts or through bolts are required for wood and plastic covered composite doors, and any type of door without reinforcements and recommended for wood core and metal clad (Kalamein) type doors.

RH SHOWN LH OPPOSITE

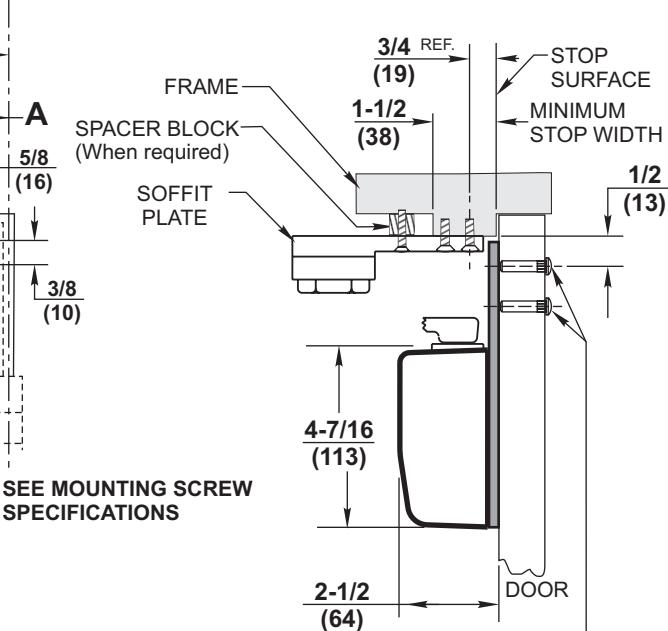

Closer To Be Installed In A True Horizontal CAUTION: Position To Ensure Proper Closer Performance.

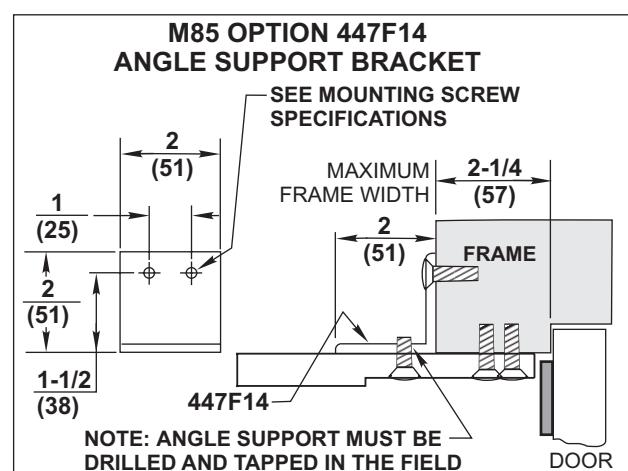

MOUNTING SCREW SPECIFICATIONS

#12-14 self-drilling screw. 1/8 (3) diameter pilot hole required for Wood Applications.

ARM AND QUIK-INSTALL™ BRACKET Sex nuts, furnished when ordered

1/4-20 THREAD

Drill thru 9/32 (7) Enlarge to 3/8 (10) Dia. This Side Only (4 Places)

NOTES:

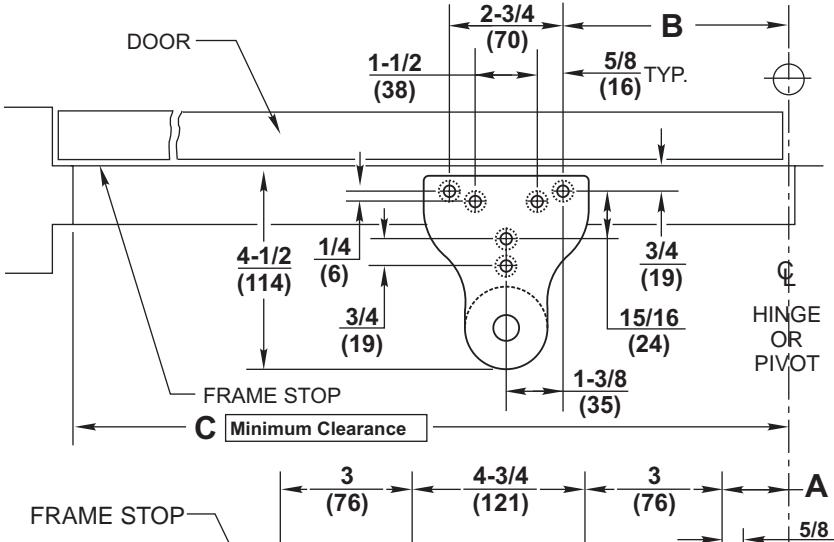

• 1. Dimensions "A" & "B" apply to centerline of hinge/pivot for butt hinges, offset pivots, or center pivots.
• 2. Dimensions given in inches and (mm).
• 3. Minimum Top Rail: 2-1/2 (64)
• 4. Auxiliary door stop required, by others.

	Application	Α	В	С
OPENING		Drop Plate	Soffit Bracket	Clearance
90°	NON A.D.A.	7-1/2 (191)	11-5/8 (295)	27-3/4 (705)
180°	4	3-1/2 (89)	7-5/8 (194)	23-5/8 (600)

12 (305)

The Habitat for Humanity®

TOP OF DOOR

5-3/4

(146)

(10)

RESPONSIBILITY

Door and Frame Manufacturers are responsible for providing adequate construction or reinforcements for proper installation of hardware shown. All architectural builders hardware must be installed on properly reinforced doors and frames, regardless of the type, material, or method of construction.

DC8210 Series x A3 X 754F25

754F25

Drop Plate

Parallel Arm Mounted Surface Door Closer with 754F25 Drop Plate

Corbin Russwin

ASSA ABLOY

www.corbinrusswin.com

Do Not Scale Drawing Dr. Template Number T31056 04-08
