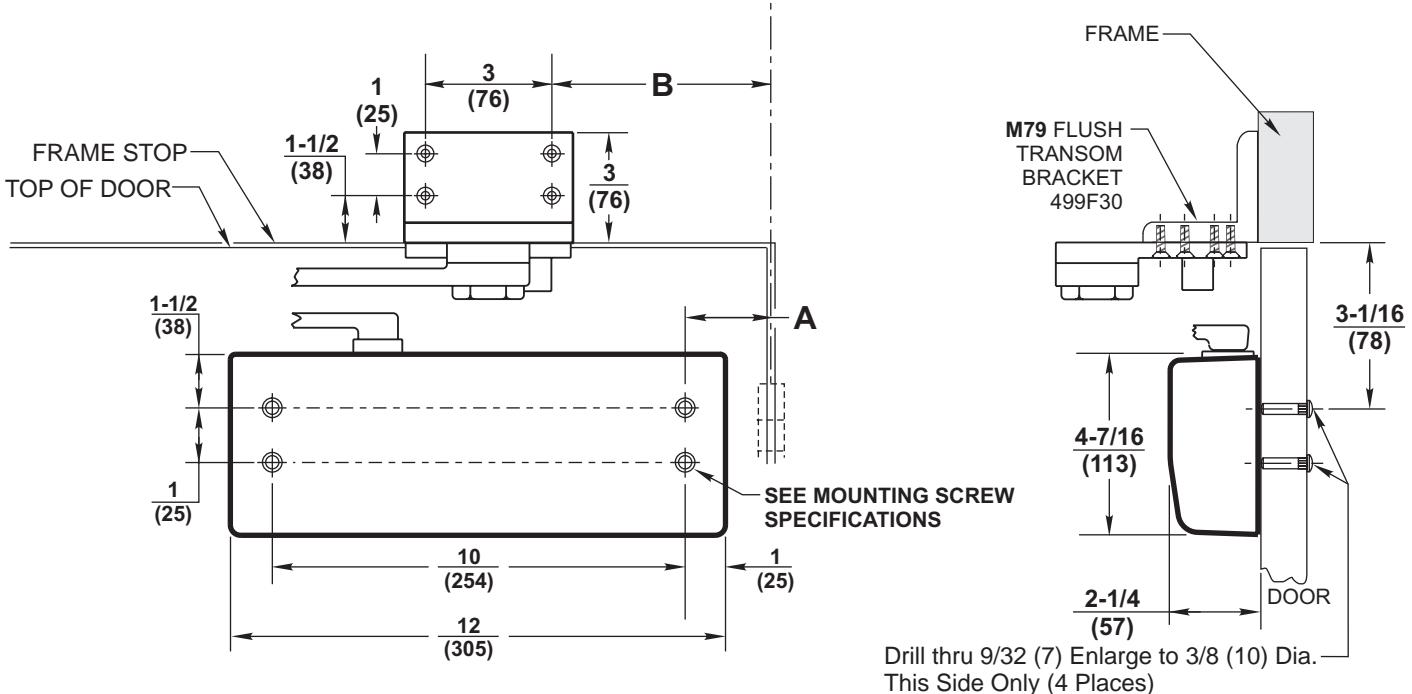

MOUNTING INFORMATION

Sex nuts or through bolts are required for wood and plastic covered composite doors, and any type of door without reinforcements and recommended for wood core and metal clad (Kalamein) type doors.

RH SHOWN LH OPPOSITE

CAUTION: Closer To Be Installed In A True Horizontal Position To Ensure Proper Closer Performance.

MOUNTING SCREW SPECIFICATIONS ARM AND QUIK-INSTALL™ BRACKET

#12-14 self-drilling screw. 1/8 (3) diameter pilot hole required for Wood Applications.

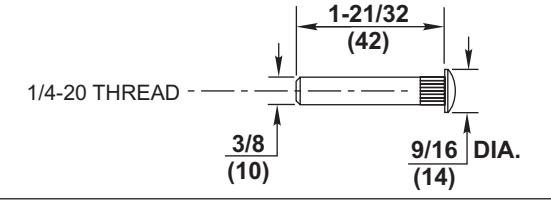

Sex nuts, furnished when ordered

NOTES:

Dimensions "A" & "B" apply to centerline of hinge/pivot for butt hinges or offset pivots.
2. Dimensions given in inches and (mm).
3. Minimum Top Rail: 4-5/8 (117)
4. For A2 Arms: Auxiliary door stop required, by others.
5. A2 and A5 arms cannot be used on fire doors.

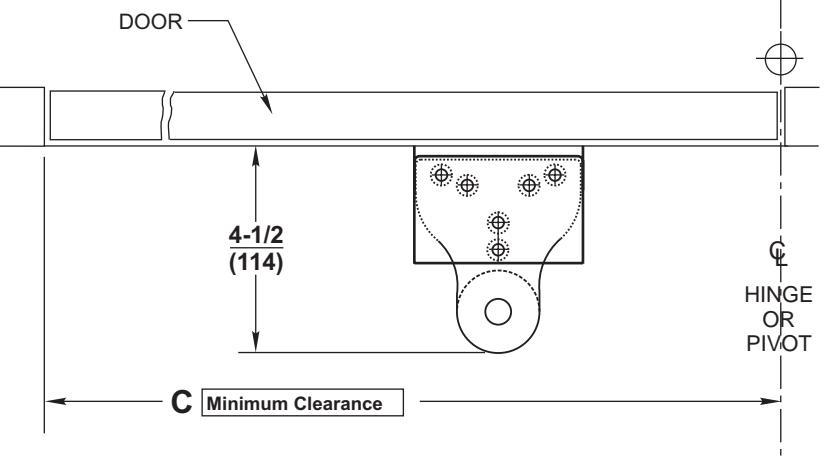

OPENING MAXIMUM	A Q UIK-INSTALL ™ Bracket	B Flush Transom Bracket	C MINIMUM Clearance
85°	8-5/8 (220)	12-1/4 (311)	27-5/8 (702)
90°	7-5/8 (194)	11-1/4 (286)	26-5/8 (676)
100°	6-1/8 (156)	9-3/4 (248)	25-1/8 (638)
110°	4-3/4 (121)	8-3/8 (213)	23-3/4 (603)

পৌণ Habitat for Humanity°

RESPONSIBILITY

Door and Frame Manufacturers are responsible for providing adequate construction or reinforcements for proper installation of hardware shown. All architectural builders hardware must be installed on properly reinforced doors and frames, regardless of the type, material, or method of construction.

DC8210 Series x A2/A4/A5 x M79

Surface Door Closer, Parallel Arm Mount By Hold Open and / or Backstop Arm with M79 Flush Transom Bracket
