MOUNTING INFORMATION

Sex nuts or through bolts are required for wood and plastic covered composite doors, and any type of door without reinforcements and recommended for wood core and metal clad (Kalamein) type doors.

2. Dimensions given in inches and (mm).

NOTES:

or offset pivots.

3. Minimum Top Rail: 2 (51)

RH SHOWN LH OPPOSITE

CAUTION: Closer To Be Installed In A True Horizontal Position To Ensure Proper Closer Performance.

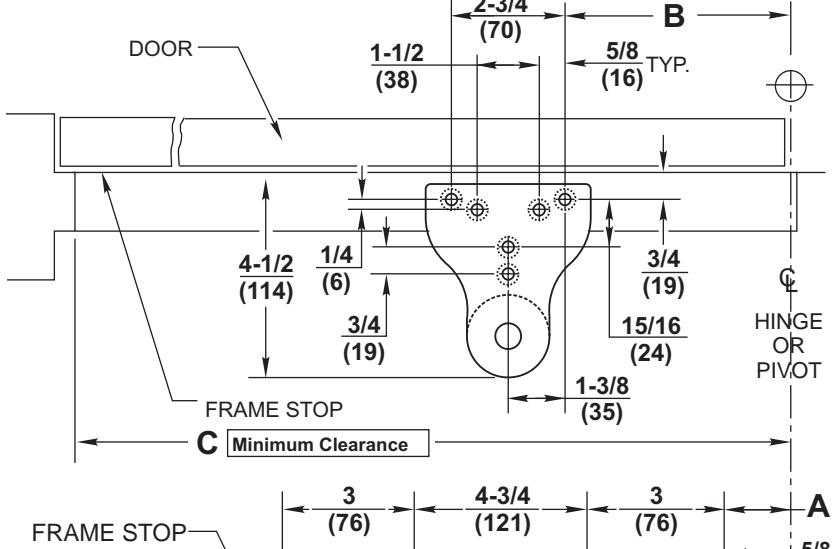

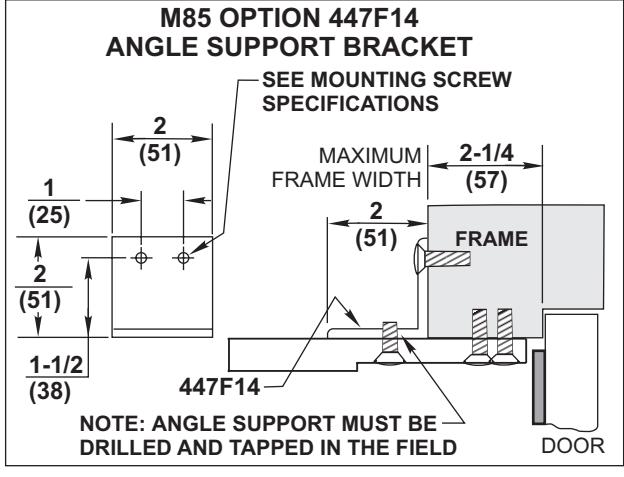

MOUNTING SCREW SPECIFICATIONS ARM AND QUIK-INSTALL™ BRACKET

#12-14 self-drilling screw. 1/8 (3) diameter pilot hole required for Wood Applications. Sex nuts, furnished when ordered 1/4-20 THREAD 3/8 (10) 9/16 DIA.

4. For A2 Arms: Auxiliary door stop required by others. 5. A2 and A5 arms cannot be used on fire doors.

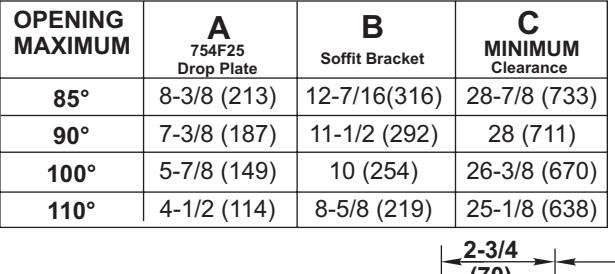

1. Dimensions "A" & "B" apply to centerline of hinge/pivot for butt hinges

❤️ Habitat for Humanity®

RESPONSIBILITY

Door and Frame Manufacturers are responsible for providing adequate construction or reinforcements for proper installation of hardware shown. All architectural builders hardware must be installed on properly reinforced doors and frames, regardless of the type, material, or method of construction.

DC8210 Series x A2/A4/A5 x 754F25

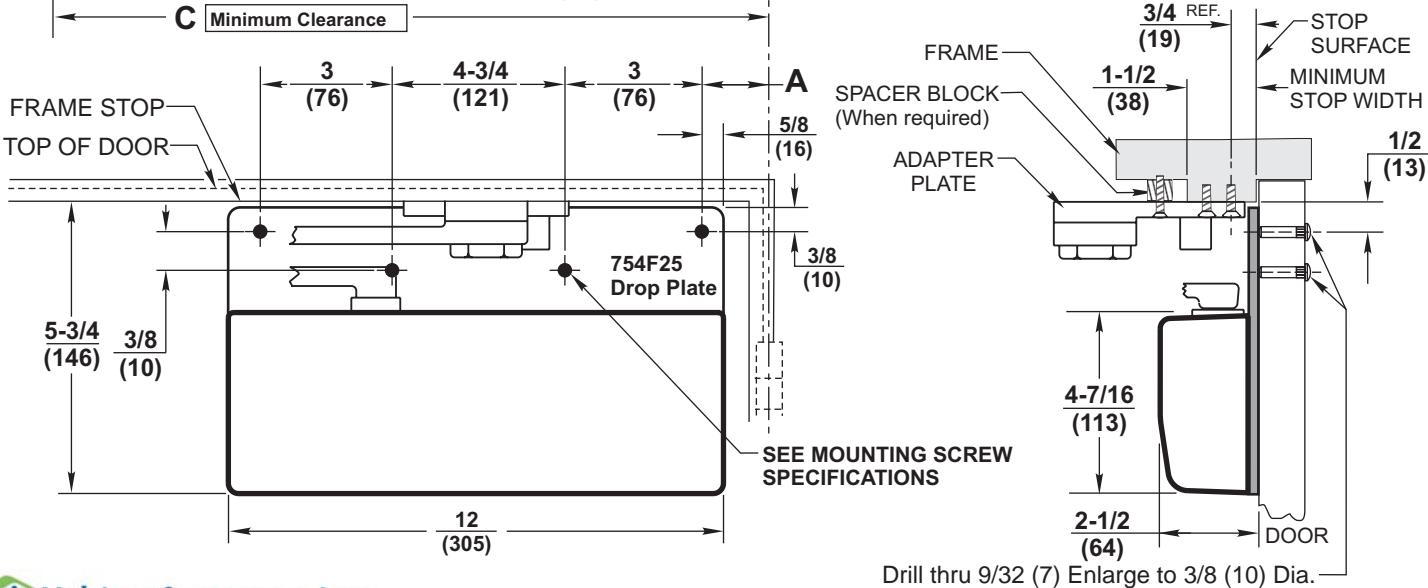

Parallel Arm Mounted Surface Door Closer with 754F25 Drop Plate by Hold Open and / or Backstop Arm

Corbin 7

ASSA ABLOY

www.corbinrusswin.com Do Not Scale Drawing

Supersedes Dr. # Date 04-08 Template Number T31053

This Side Only (4 Places)
