MOUNTING INFORMATION

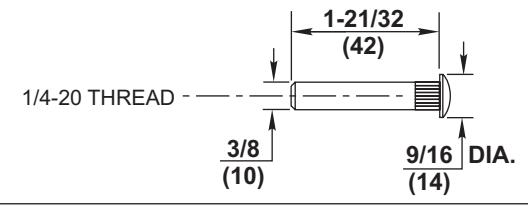

Sex nuts or through bolts are required for wood and plastic covered composite doors, and any type of door without reinforcements and recommended for wood core and metal clad (Kalamein) type doors.

RH SHOWN LH OPPOSITE

CAUTION: Closer To Be Installed In A True Horizontal Position To Ensure Proper Closer Performance.

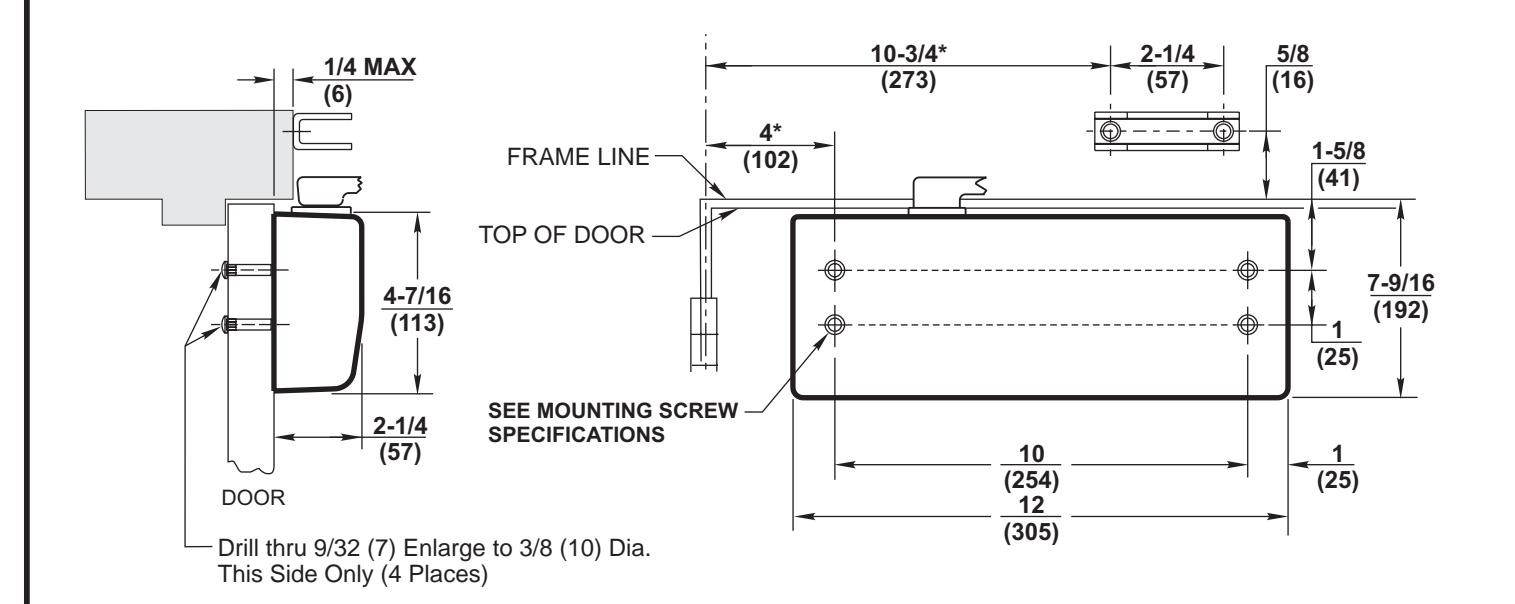

MOUNTING SCREW SPECIFICATIONS ARM AND QUIK-INSTALL™ BRACKET

#12-14 self-drilling screw. 1/8 (3) diameter pilot hole required for Wood Applications. Sex nuts, furnished when ordered

NOTES:

• 1. Dimensions given in inches and (mm).
• 2. Minimum Top Rail: 3 (76)
• 3. Minimum Clearance Over Door: 1-5/8 (41).
• 4. Door opening (up to 180°) is dependent upon door, frame, wall and hinge/pivot conditions permitting.
• 5. Auxiliary door stop required, by others.
• To obtain extra closing force, add 3 (76) to dimensions marked by an astrisk (*). This will not meet ADA and limit degree of opening to 110° depending on arm adjustment.
• Astrisk (*) dimensions apply to centerline of hinges, offset pivots, or center pivots.

MY Habitat for Humanity®

RESPONSIBILITY

Door and Frame Manufacturers are responsible for providing adequate construction or reinforcements for proper installation of hardware shown. All architectural builders hardware must be installed on properly reinforced doors and frames, regardless of the type, material, or method of construction.

DC8200 Series x A10

Heavy Duty Regular Arm Mounted Surface Door Closer
